Perforated Metal Hole Pattern Guide
Perforated metal hole pattern affects open area, strength, airflow, filtration and appearance. A clear RFQ should include material, thickness, hole size, pitch, sheet size and application.
Direct answer
Use this guide to prepare comparable RFQ details before asking for price. The examples below are common buyer reference points, not fixed stock promises; final specifications require manual confirmation.

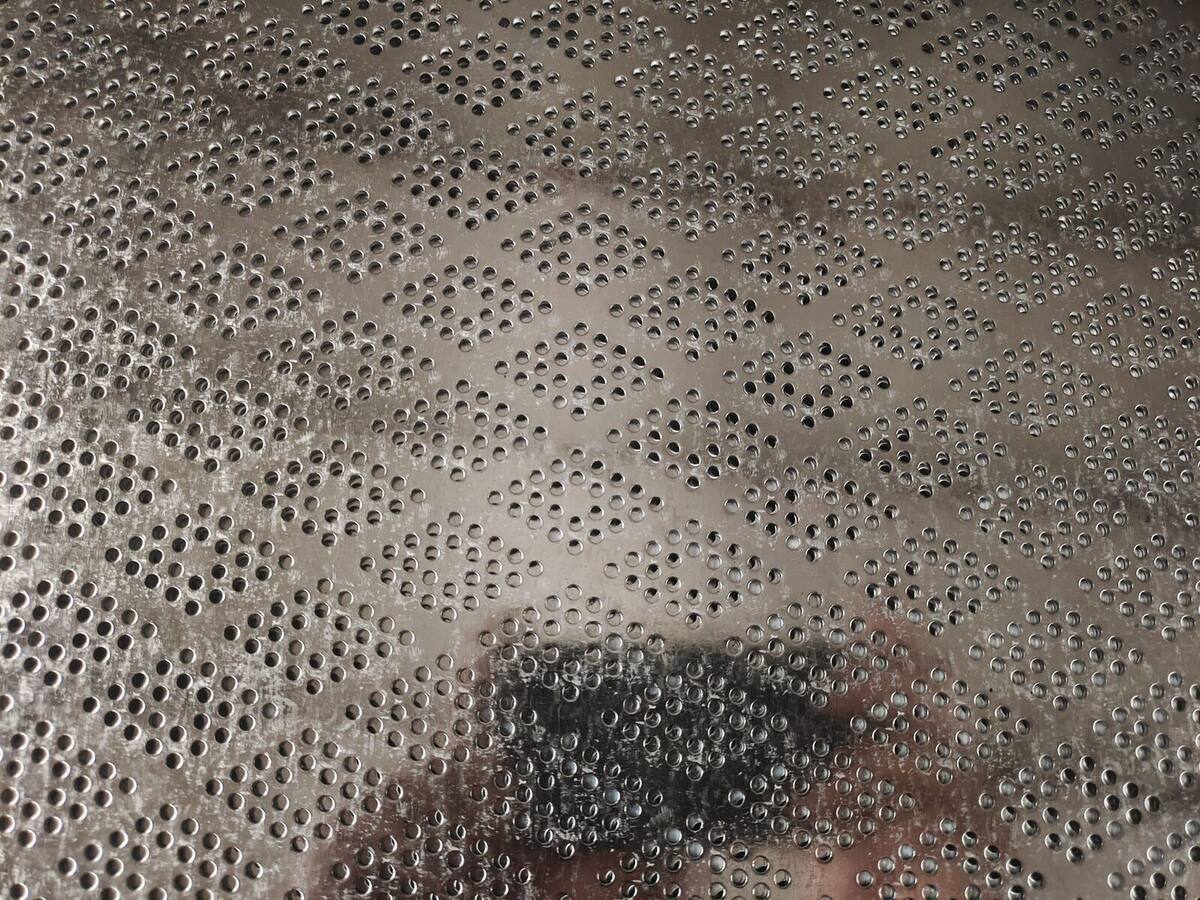

Round holes
Round holes are common for ventilation, guards, filtration and general industrial panels. They are easy for buyers to describe and compare, but hole diameter and pitch must be confirmed together.

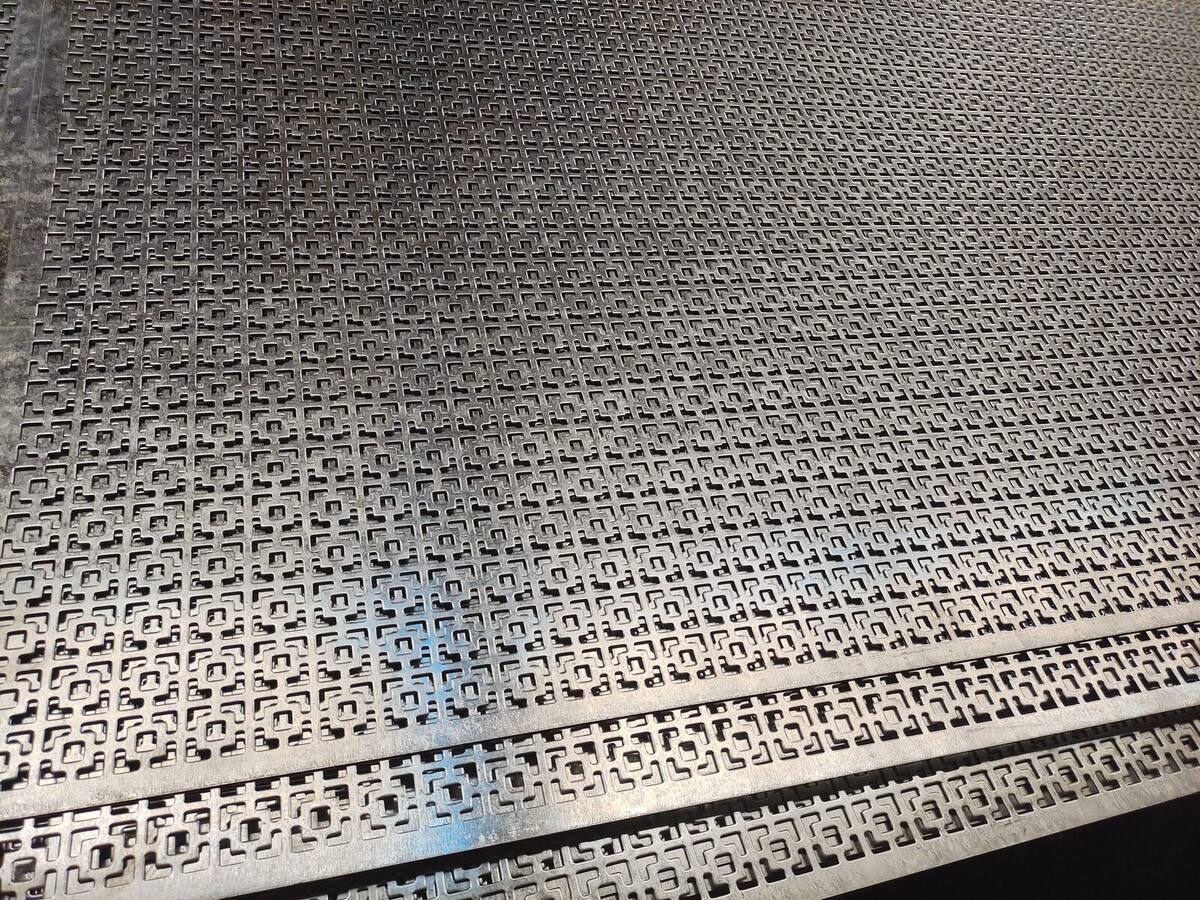

Square and slotted holes
Square holes may offer different open area and appearance. Slotted holes are considered for drainage, airflow or special screening. The direction of slots may also matter for installation.
Open area and strength
More open area usually means better airflow or visibility, but it can reduce sheet strength. Thicker sheet may improve strength but increases weight and cost. The application should guide the decision.
RFQ details
Send material, thickness, hole pattern, hole diameter, pitch, margin if required, sheet size, quantity and destination. Drawings help when hole pattern is not standard.
Decision table
Use this table to prepare comparable quotations. Do not compare price unless the key parameters are the same.
| Pattern | Common use | RFQ focus |
|---|---|---|
| Round hole | ventilation, guards, filtration | diameter, pitch, sheet size |
| Square hole | open area and visual panels | hole size, pitch, material |
| Slotted hole | drainage, airflow, special screening | slot size, direction, spacing |
| Custom pattern | drawing-based projects | CAD drawing, tolerance, quantity |
Common parameter examples
Use these as RFQ reference examples only. Actual production specifications, tolerance, packing and quotation need manual review.
| Small hole direction | hole diameter around 1–5 mm may be used for filtration or fine ventilation |
|---|---|
| General guard direction | hole diameter around 6–20 mm may be discussed for covers and guards |
| Pitch/open area | pitch and hole spacing affect strength and airflow; do not send hole diameter only |
| RFQ note | send material, thickness, pattern, pitch, sheet size and drawing if possible |
Common buying mistakes
- Sending only hole diameter without pitch.
- Ignoring sheet thickness and material.
- Forgetting margin or blank edge requirement.
- Choosing high open area without checking strength.
Hole pattern details that affect perforated metal performance
Use this checklist to make quotations comparable and reduce missing specifications before contacting the factory.
Hole diameter
Hole size affects airflow, filtration, appearance and strength.
Pitch distance
Pitch controls open area and sheet rigidity. It must be quoted with hole size.
Pattern type
Round, square, slot and staggered patterns serve different uses.
Sheet thickness
Thickness affects punching feasibility, flatness and weight.
Margin and edge
Margins, no-hole border and burr direction should be confirmed for installation.
Factory review note
A good perforated sheet RFQ includes material, thickness, hole pattern, hole size, pitch, margin, sheet size and quantity.
Related product and application pages
Review hole pattern, thickness, pitch and sheet size.
Equipment Guard Wire MeshChoose mesh panels or perforated sheets for machine guards.
Chemical Plant Protection Wire MeshReview corrosion environment before choosing stainless grade.
Request QuoteSend full specifications for manual factory review.
Wire Mesh HomepageReturn to all product categories and RFQ entry points.
Factory VerificationCheck company information and Anping factory details.
RFQ checklist
- Product name and application
- Material grade or surface treatment
- Wire diameter, opening, hole pattern or bearing bar
- Panel, roll or sheet size
- Quantity, packing and destination
FAQ
What should I send for this RFQ?
Send product name, material, key size, quantity, application and destination. Final quotation requires manual review.
Can I ask for a price without full parameters?
You can ask for an initial direction, but accurate quotation needs manual review of specifications, material, quantity, packing and delivery details.
Why do different suppliers quote different prices?
Different wire diameter, thickness, material grade, surface treatment, packing and tolerance can create very different prices even when the product name looks similar.
Need manual quotation review?
Send product type, material, wire diameter, opening, size, quantity, packing requirement and destination. Our Anping factory team will review the specification before quotation.

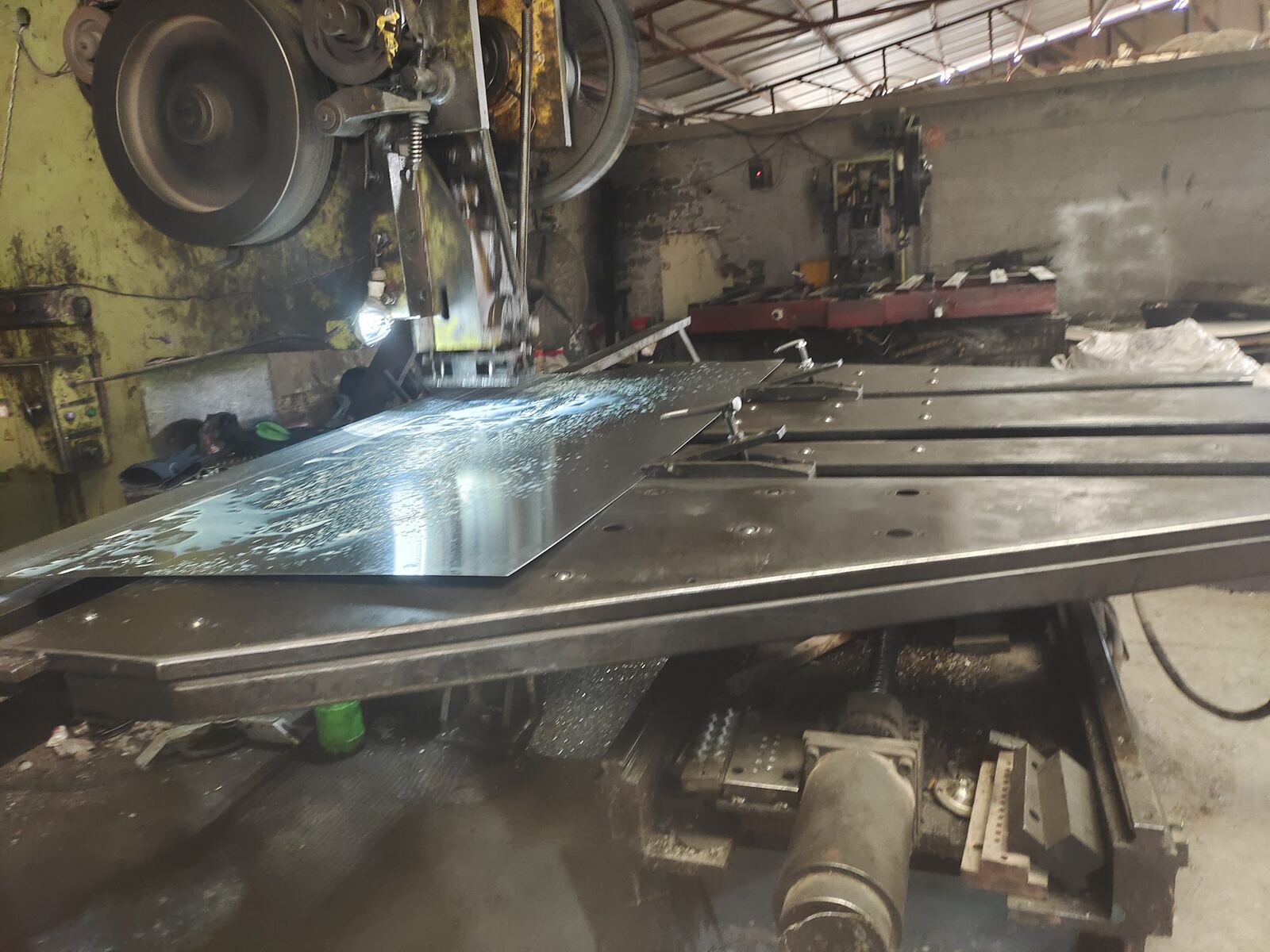

Factory photo evidence for perforated metal hole pattern
For this selection, buyers should check real mesh structure, material condition, opening or hole pattern, packing method and the final application environment before quotation. The photos below provide practical reference for RFQ preparation.
RFQ checklist for perforated metal hole pattern
- Material grade and surface treatment.
- Wire diameter, mesh opening, sheet thickness or hole pattern where applicable.
- Panel, roll or sheet size and tolerance requirement.
- Application environment and corrosion, screening or safety requirement.
- Quantity, packing method, destination and delivery schedule.
Review the related product page or send specifications for factory quotation review.
Perforated Metal Hole Pattern FAQ
What details should be confirmed before quotation?
Material, opening or hole size, thickness or wire diameter, size, quantity, packing and application environment should be confirmed before factory quotation.
Can the specification be customized?
Yes. Custom mesh opening, sheet size, panel size, packing and processing can be reviewed according to drawings or sample requirements.
