Factory Equipment Guard Wire Mesh | Robot Cell, Conveyor & Machine Safety Mesh Panels
Anping Hand in Hand factory direct welded mesh panels and perforated metal for factory equipment guards: robot cell perimeter, conveyor side guard, motor cover, fan guard, machine safety partition. Compliant with ISO 13857 (safety distances) and EN ISO 14120 (machine guards). Custom panel size, hooked-edge, framed, hot-dip galvanized or powder coated.
Get my factory guard panel quote Send a detailed RFQ
- Compliant with ISO 13857 reach distance + EN ISO 14120 fixed guard standards
- Robot cell perimeter, conveyor side, motor / fan / pump guard, machine partition
- Welded mesh wire 2-4 mm + 25-50 mm opening, hooked-edge or framed in flat / angle steel
- Hot-dip galvanized 70-86 micron or powder-coated in safety yellow / orange / RAL custom
- Bolt-on or hinge-mounted panels per drawing; lockable access door panels supported
- Mill test certificate for stainless; zinc thickness inspection record for galvanized
- RFQ replied by named engineer within one business day; full export packing
Recommended products: stainless steel welded wire mesh manufacturer · custom welded mesh panels for equipment guards · perforated metal sheet for ventilation guards · steel grating for catwalk and platform.
Why mesh opening, wire diameter and rigidity decide guard safety
Factory equipment guards are governed by international machine safety standards. Mesh opening prevents reach to dangerous parts; wire diameter and frame deliver rigidity; surface finish handles environment. The four mechanisms below decide spec.
ISO 13857 reach distances
Mesh opening must prevent fingers, hands and arms from reaching dangerous moving parts at safety distance. Standard guard mesh: 8-25 mm opening, 2-4 mm wire.
EN ISO 14120 panel rigidity
Fixed guard panels must withstand 100 N force without permanent deformation. Frame panels in 25-40 mm flat or angle steel; weld at every intersection.
Robot cell perimeter
Light curtain backup, hard guard for collaborative cells. Mesh opening sized for laser scanner blind zone; powder coat in safety yellow for visibility.
Maintenance access
Hinged or sliding access door panels with key-operated interlocks; bolt-on for fixed positions. Drawing-driven fabrication with Anping in-house framing line.
Material and finish guide for factory equipment guards
Engineers select base material, mesh opening and finish against environment, hazard level and visibility requirement. Hot-dip galvanized + powder-coated steel is the cost-effective default; 304 / 316 stainless is reserved for food, pharma, cleanroom and wet equipment. wire mesh buying guide and material comparison · 304 vs 316 stainless welded mesh selection · surface treatment selection guide · Anping Hand in Hand factory capabilities.
| Material | Wire dia. | Opening | Finish | Typical use |
|---|---|---|---|---|
| Mild steel Q235 | 2-4 mm | 25-50 mm | Hot-dip galvanized 70-86 um | Standard machine guards (cost-effective) |
| Mild steel Q235 | 3-5 mm | 12-25 mm | Powder coated RAL 1023 | Robot cell perimeter (safety yellow) |
| Mild steel Q235 | 3-5 mm | 25-50 mm | Powder coated RAL 5015 | Conveyor / fan side guards |
| 304 stainless | 2-3 mm | 12-25 mm | Mill or pickled finish | Food / pharma / cleanroom equipment |
| 316 stainless | 2-3 mm | 12-25 mm | Pickled and passivated | Wet / chemical / coastal equipment |
| Aluminum 1060 | 3-4 mm | 25-50 mm | Anodized clear or bronze | Lightweight ESD-sensitive equipment |
Factory equipment guard application zones
Six standard guard scenarios with recommended product, mesh and frame spec, and expected service life. Send the zone plus station layout drawing and our engineer confirms panel design and accessories.
Robot cell perimeter
Recommended: Welded mesh panel framed in flat steel
Spec: 3-4 mm wire, 12-25 mm opening, 1.8-2.5 m height, powder coated RAL 1023 yellow
Hard guard backup for light curtain. Lockable access doors with key interlock; bolt-on stanchions; complies with ISO 10218.
Service life: 15-25 years indoor
Conveyor side guard
Recommended: Welded mesh panel hot-dip galvanized
Spec: 2-3 mm wire, 25-50 mm opening, 0.6-1.2 m height, framed in 30×30 angle steel
Fall protection along conveyor edge, debris containment. Removable panels every 1-2 m for cleaning access.
Service life: 10-20 years
Motor / pump / fan guard
Recommended: Welded mesh panel + perforated metal vent
Spec: 2-3 mm wire, 12-25 mm opening; perforated 3 mm hole for ventilation panels
Rotating part containment with airflow. Combination welded mesh frame + perforated insert for radiator and fan.
Service life: 15-20 years
Machine perimeter partition
Recommended: Modular welded mesh panel system
Spec: 2.5-4 mm wire, 25-50 mm opening, 2 m standard panel, hot-dip galvanized + powder coated
CNC, press, injection molding cell separation. Modular bolt-on with column / base plate; reconfigurable layout.
Service life: 15-25 years
Catwalk and platform guard
Recommended: Welded mesh panel + steel grating
Spec: 3-4 mm wire mesh + 30×3 mm flat bar grating walkway; railing posts integrated
Mezzanine, maintenance platform, overhead walkway. Combined fall protection mesh + grating floor.
Service life: 20-25 years
Cleanroom equipment cover
Recommended: 304 / 316 stainless welded mesh panel
Spec: 1.5-2 mm wire, 12-25 mm opening, electro-polished or pickled finish, framed in stainless
Pharmaceutical, semiconductor, food processing equipment partitions; smooth corrosion-resistant finish.
Service life: 20-30 years
Recommended Anping Hand in Hand products for factory guard procurement
Each product page covers full specifications, opening size, wire diameter, panel size, and pricing for FOB Tianjin, CIF, DAP and DDP. RFQ is replied within one business day by a named engineer.
- stainless steel welded wire mesh manufacturer
- custom welded mesh panels for equipment guards
- perforated metal sheet for ventilation guards
- steel grating for catwalk and platform
Sibling application pages: marine and coastal 316 stainless wire mesh · chemical plant 316 stainless mesh · farm and aquaculture fencing wire mesh · wire mesh application gallery.
Factory equipment guard procurement FAQ
Common procurement questions answered up front. Bulk wholesale buyers see request a factory equipment guard quote or contact Anping factory team.
What standards does your factory equipment guard mesh comply with?
Our welded mesh panels comply with ISO 13857 (safety of machinery: distances to prevent reaching hazard zones), EN ISO 14120 (general requirements for fixed guards) and ISO 10218 (robotics safety). Mesh opening, panel rigidity and frame fixing are all sized to spec; engineering data sheet supplied with quotation.
What mesh opening should I choose for a robot cell guard?
For robot cell perimeter guards (no light curtain): 12-25 mm opening with 3-4 mm wire prevents finger / hand reach beyond ISO 13857 distance. For maintenance-access panels backed by light curtain: 25-50 mm opening is sufficient. Engineer confirms against your robot reach envelope and station layout.
Can panels be hinged or with lockable doors?
Yes. Hinged access door panels (with key interlocks for safety circuit), sliding panels, removable bolt-on panels and modular column-mounted systems all supported. Send drawing or station layout and our engineer designs panel size, hinge type and door dimensions.
What is the typical lead time for guard panels?
Stock spec galvanized panels: 7-12 days. Custom powder-coated, framed or stainless panels: 15-25 days. Assembly with column / base plate / hinge / lock kits: add 5-10 days. Lead time confirmed in writing on the binding quotation.
Do you supply panels with mounting accessories (columns, base plates, hinges)?
Yes. Modular guard system supplied complete: panels + steel columns 50×50 / 80×80 mm + concrete-anchored base plates + hinges + locks + bolt sets. CAD layout supplied with quotation; on-site assembly drawing included.
What finish options are available for indoor factory environments?
Hot-dip galvanized 70-86 micron is the durable indoor / outdoor default. Powder coating in any RAL color over hot-dip base (RAL 1023 safety yellow, RAL 5015 sky blue, RAL 7035 light grey common). For food, pharma, cleanroom: 304 / 316 stainless mill or pickled finish.
What is the MOQ for custom guard panels?
For stock galvanized + standard panel size: MOQ one full pallet (50-100 panels). For custom powder-coated, framed, hinged or stainless: MOQ one welding setup batch (typically 30-50 panels). Sample panel reviewed case by case.
Do you support drawing-based custom fabrication?
Yes. Send 2D drawings, 3D STEP / IGES files or marked-up reference photos. Engineer reviews and quotes material + framing + finishing as one line item. Modifications during production are confirmed in writing.
Inside the Anping Hand in Hand factory – factory guard sourcing transparency

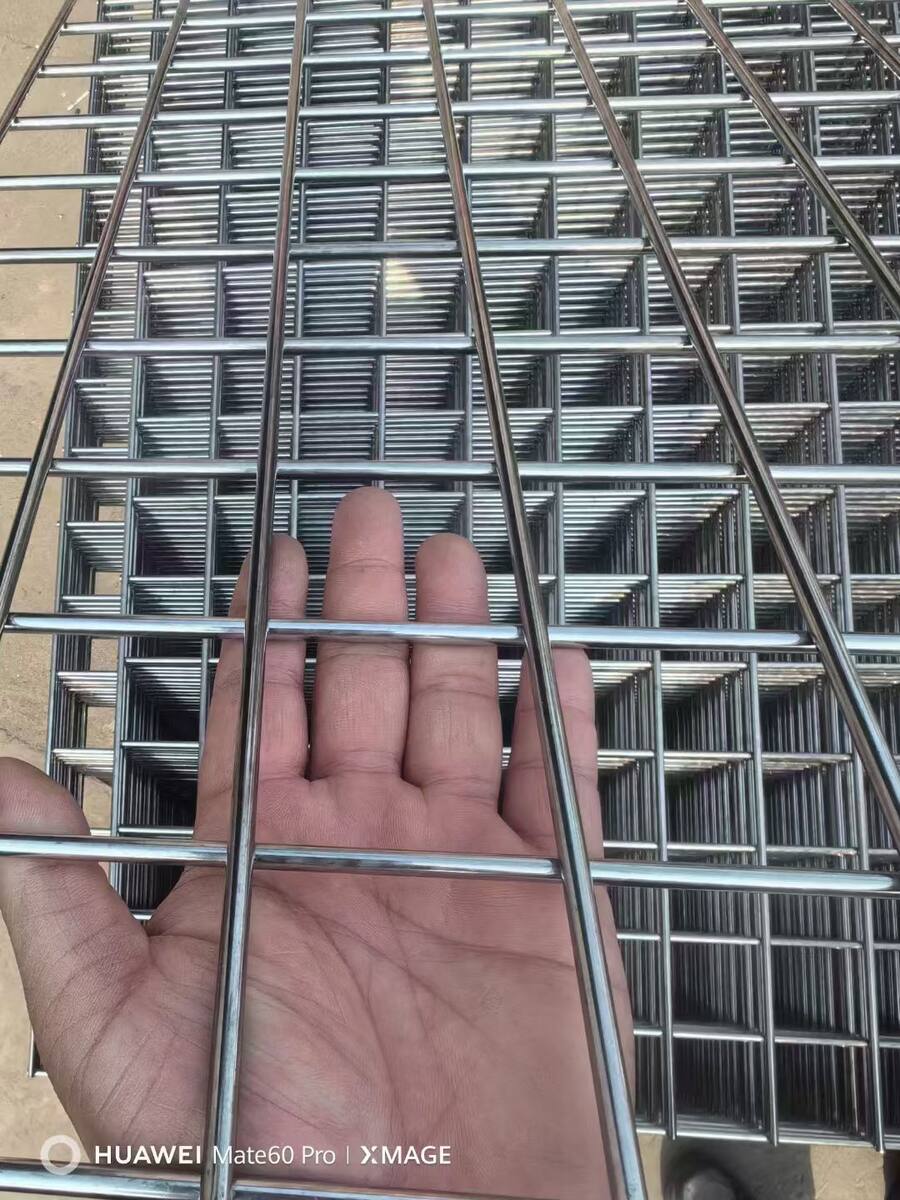

Stainless steel welded mesh and panels for factory equipment guards – welded mesh and panel production line for robot cells, conveyor enclosures and machinery safety screens sourcing transparency. Buyers welcome to visit, video tour, or appoint SGS / BV / TUV third-party inspection. USCC 91131125MA7FT3EA0D.
Why buyers can trust Anping Hand in Hand on this order
Anping County, Hebei Province is the national wire mesh production cluster of China with 4000+ wire mesh enterprises within 30 km. Our workshop, warehouse and shipping yard back every quotation with physical evidence buyers can verify on site, by video call, or via SGS / BV / TUV inspection.
He Zhanbing
Senior Application Engineer | Anping Hand in Hand
5 years on the wire mesh and steel grating production line. Reviews drawings, opening specifications, panel size, finish and packing. Replies within one business day with binding pricing, weight per panel and lead time. Confirms grade selection (304 / 316 / 316L / duplex / 65Mn / Q235) against your application before quotation.
Verified legal entity and buyer-checkable records
Registered name (EN): Anping Hand in Hand Wire Mesh Products Co., Ltd.
Registered name (CN): 安平县手拉手丝网制品有限公司
Unified Social Credit Code (USCC): 91131125MA7FT3EA0D
Registered address: Anping County, Hebei Province, China
Geo coordinates: Lat 38.2314 / Lng 115.6253 (Anping wire mesh cluster)
Buyers may request a legal entity check, on-site visit appointment, video factory tour, or third-party (SGS / BV / TUV) inspection before payment. Quotations and contracts are issued under the registered legal entity above. Mill test certificate (MTC) traceable to wire batch number supplied by default; ASTM B117 salt-spray, ASTM E8 tensile and ISO 9227 reports supplied on request.
Business license (click to view full size)
Standards we work to: ASTM A123 / A153 (hot-dip galvanizing), ASTM A580 / A480 (stainless steel grade), ASTM E8 (tensile), ASTM B117 (salt-spray), ISO 9227 (NSS), ISO 9001 (quality management — in renewal cycle), EN 10204 type 3.1 (mill cert), EN 10088 (stainless), EN 1461 (galvanizing), EN 10218 (steel wire), AS 4687 / EN 12811 (construction fence), AS 1657 (walkway), ISO 13857 (machine guard), NACE MR0175 / ISO 15156 (sour service).
Get a same day factory guard panel quote
Send the form below or WhatsApp +86 15075801841 for a same day reply. Drawings (2D / 3D / STEP) and salt-spray test requirements welcome.
Engineering reference: see our steel grating load capacity and span selection guide for ANSI/NAAMM MBG 531 load tables, span formulas and a 5-step procurement workflow.
Manufacturer evidence and quality control
The factory equipment guard wire mesh described on this page is manufactured at our Anping County, Hebei factory (USCC 91131125MA7FT3EA0D) by Anping Hand in Hand Wire Mesh Products Co., Ltd. Mill cert per EN 10204 type 3.1 issued for every order; type 3.2 third-party witness inspection (SGS / BV / TUV / Lloyds) on request.
Manufacturer: Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) →
Compatible equipment and standards systems
Our wire mesh is produced to fit the dimensions, hook strip, framing standards, or test profiles published by the following equipment manufacturers and standards bodies. Send us your system or screen model number with your RFQ and we will quote against the corresponding spec.
Brand names are property of their respective owners; listed for product compatibility / standards identification only. Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) is an independent wire mesh manufacturer and is not affiliated with these brands or systems.

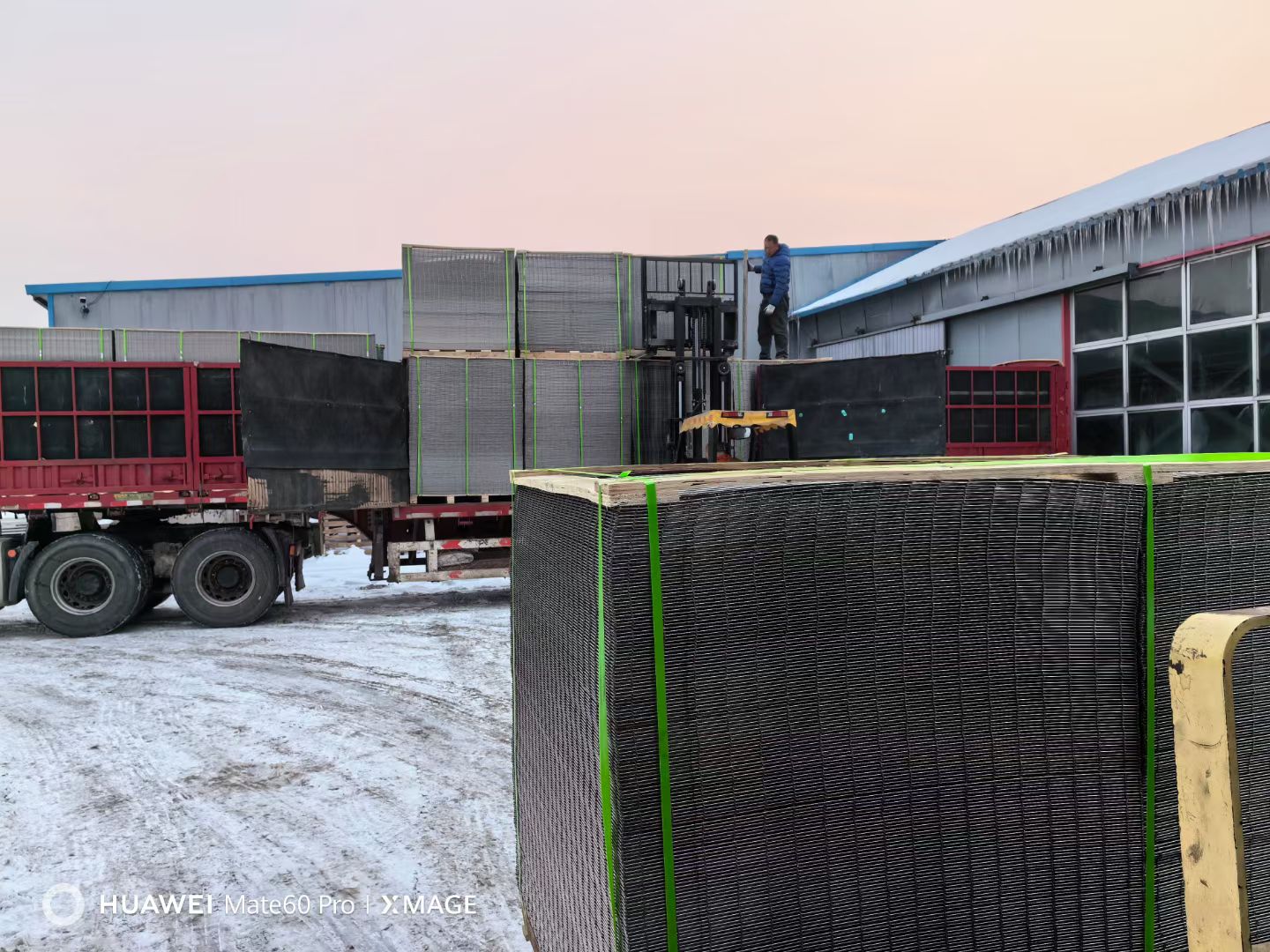

What you receive with every shipment
Every container we ship arrives with a complete document set so your QA, customs broker, and goods-in team have nothing to chase.
- ✓Mill test certificate (EN 10204 type 3.1) — Heat number, chemical composition, mechanical properties — issued for every order
- ✓Dimensional QC measurement record — Per-product critical dimensions verified against your approved drawing — measured against your approved drawing
- ✓Packing list with PO traceability — Roll / panel / sheet count, m² per unit, total weight, container loading sequence
- ✓Bill of lading (FOB Tianjin Xingang or Qingdao) — For your customs broker and freight forwarder
- ✓Country of origin certificate — Form A / Form E available for AU / NZ / Korea / RCEP markets
- ✓Sample inspection cert from SGS / BV / TUV / Lloyds — Type 3.2 third-party witness inspection on request, paid by buyer
Want to see a redacted sample document set before you place an order? Message engineer He Zhanbing on WhatsApp and he will email you a desensitized type 3.1 mill cert and SGS test report within one working day.
Export-ready capability for first-time international buyers
We are an Anping County, Hebei manufacturer prepared to handle full international procurement documentation in English — mill cert, packing list, BoL, country-of-origin form, freight forwarder coordination from Tianjin Xingang or Qingdao. Whether this is your first import from China or your fiftieth, our process is the same.
New buyer? Request a 5 m sample roll first; we ship by FedEx / DHL with a redacted EN 10204 type 3.1 mill cert so your QA team can validate before placing a container order.
