Stainless Steel Wire Mesh Panel Manufacturer | 304 / 316 Custom Cut Welded Mesh Panels Supplier
Anping Hand in Hand factory direct stainless steel wire mesh panels in 304, 304L, 316 and 316L grades. Custom cut, framed, hooked-edge or U-edge panels; wire diameter 0.5 to 6.0 mm, mesh opening 6.4 mm (1/4 inch) to 100 mm, panel size standard 1.0 x 2.0 m or 1.2 x 2.4 m or custom up to 2.5 x 6.0 m. Mill test certificate, third-party inspection welcome, full export packing.
Get my stainless mesh panel quoteSend a detailed RFQ
- Source factory in Anping wire mesh cluster, not a trading agent
- Anping County hosts 4000+ wire mesh enterprises and 500+ export-licensed factories
- In-house panel fabrication: cut, frame, hooked-edge, U-edge, polish for 304 / 316 / 316L stainless
- Panel size standard 1.0 x 2.0 m or 1.2 x 2.4 m, custom up to 2.5 x 6.0 m, framed or hooked-edge
- Wire diameter 0.5 to 6.0 mm, mesh opening 6.4 mm (1/4 inch) to 100 mm (4 inch), custom welcome
- Mill test certificate (MTC) supplied by default; SGS / BV / TUV inspection welcome
- RFQ replied by named engineer within one business day; sample, drawing review, factory video tour available
Looking for a specific build? See our heavy load stainless welded wire mesh manufacturer or perforated metal sheet manufacturer. Need a different mesh family? Browse our crimped screening wire mesh for mining, heavy load galvanized steel grating manufacturer, bulk wholesale temporary construction fence panels.
What is stainless steel wire mesh panel
Stainless steel wire mesh panel is a flat, fabricated welded mesh sheet made of stainless steel wires (304 / 304L / 316 / 316L), cut to size and finished with framing, hooked edge, U-edge or polished edge for installation as machine guard, filter, balcony screen, partition or animal cage. Anping Hand in Hand welds, cuts, frames and finishes panels in 304, 304L, 316 and 316L; standard sizes 1.0 x 2.0 m or 1.2 x 2.4 m, custom up to 2.5 x 6.0 m.
Wire diameter runs 1.0 to 8.0 mm with openings from 0.5 to 100 mm and roll width up to 2000 mm, woven as double crimp, lock crimp or flat-top crimp. Mesh is supplied in rolls or cut into rectangular panels with plain, folded or hooked edges so it mounts and tensions directly on your screen deck.
Stainless mesh panels specifications and types
| Parameter | Range / standard value |
|---|---|
| Material | 304 / 304L / 316 / 316L stainless steel (321 / 310S on request) |
| Wire diameter | 0.5 mm to 6.0 mm (heavier on request) |
| Mesh opening | 6.4 mm (1/4 inch) to 100 mm (4 inch); custom opening welcome |

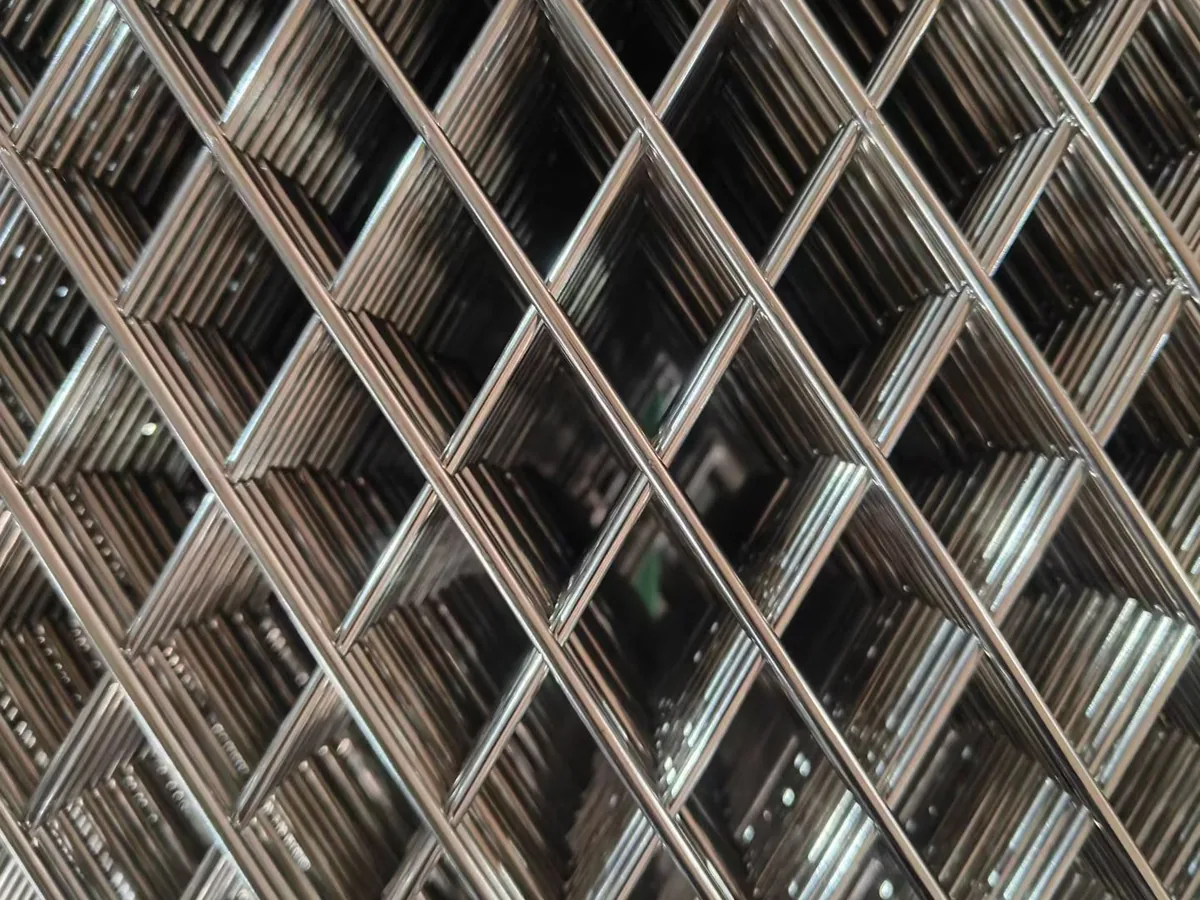

| Construction | Electric resistance welded at every wire intersection |
| Roll width | 0.5 m / 0.9 m / 1.0 m / 1.2 m / 1.5 m / 2.0 m (or custom) |
| Roll length | 30 m standard; custom 10-50 m on request |
| Panel size | Standard 1.0 x 2.0 m / 1.2 x 2.4 m; custom up to 2.5 x 6.0 m |
| Surface finish | Mill, electro-polished, pickled, passivated, hot-dip galvanized over carbon-steel base |
| Edge treatment | Selvage cut and clean, U-edge, framed in flat or angle steel, hooked edge for screening |
| Tolerance | Wire diameter +/- 0.02 mm; opening +/- 5 percent; roll width +/- 5 mm |
| MOQ / lead time | Low MOQ for stock specs; 10-25 days based on quantity and processing |
Every stainless mesh panel quote is built around six values that drive price and performance: material grade, wire diameter, mesh opening, panel size, frame and edge finish, and quantity. Send these plus your destination port and we reply within one business day.
Stainless mesh panel types we produce
- Stainless welded mesh roll. 304 / 316 / 316L stainless wire, electric resistance welded; widths 0.5-2.0 m, length 30 m standard; supplied for filter, cage, agricultural and roll-to-roll fabrication.
- Stainless welded mesh panel. Cut, framed, hooked-edge or U-edge welded panels in 304 / 316 / 316L; standard 1.0 x 2.0 m or 1.2 x 2.4 m or custom up to 2.5 x 6.0 m.
- Architectural welded panel. Polished or brushed finish, 304 1.5-3 mm wire with 25-50 mm opening, framed for balcony screen, sunshade, partition and ceiling.
- Filter & sieve welded panel. 304 / 316 0.5-2 mm wire with 6.4-25 mm opening, framed flat panel for filter cartridge support and pharmaceutical strainers.
- Concrete reinforcement mesh. Galvanized or stainless 4-6 mm wire with 100-200 mm opening, cut and bent to drawing for slab, road, bridge or prefabricated panel reinforcement.
For custom fabrication and finishes, see our wire mesh buying guide and material selection guide and 304 vs 316 stainless welded mesh selection guide and stainless mesh panel selection guide.
Full stainless mesh panels specification table (10 standard parameters)
This table is the procurement-ready format used on our quotes. Engineers can copy any line into an RFQ; values cover the 304 / 304L / 316 / 316L stainless production lines plus galvanized.
| Parameter | Range / standard value |
|---|---|
| Material | 304 / 304L / 316 / 316L stainless steel (321 / 310S on request) |
| Wire diameter | 0.5 mm to 6.0 mm (heavier on request) |
| Mesh opening | 6.4 mm (1/4 inch) to 100 mm (4 inch); custom opening welcome |
| Construction | Electric resistance welded at every wire intersection |
| Roll width | 0.5 m / 0.9 m / 1.0 m / 1.2 m / 1.5 m / 2.0 m (or custom) |
| Roll length | 30 m standard; custom 10-50 m on request |
| Panel size | Standard 1.0 x 2.0 m / 1.2 x 2.4 m; custom up to 2.5 x 6.0 m |
| Surface finish | Mill, electro-polished, pickled, passivated, hot-dip galvanized over carbon-steel base |
| Edge treatment | Selvage cut and clean, U-edge, framed in flat or angle steel, hooked edge for screening |
| Tolerance | Wire diameter +/- 0.02 mm; opening +/- 5 percent; roll width +/- 5 mm |
| MOQ / lead time | Low MOQ for stock specs; 10-25 days based on quantity and processing |
| Standards reference | GB/T 5223 / GB/T 1499 / ASTM A185 / ASTM A82 / ISO 16120 |
| Customization | Cut to size, bend, frame, hooked-edge, polish, electro-polish, passivate, hot-dip galvanize, powder coat |
| HS Code | 7314.20 / 7314.31 (galvanized) / 7314.39 (other) |
| Container loading | 20GP up to 18 ton stainless / 24 ton galvanized; 40HQ up to 28 ton, palletized |
Stainless mesh panels material selection and service life
Service life depends on grade, surface finish and environment. Stainless 316 / 316L resist corrosion for 15-30 years in chemical, marine and food applications; 304 / 304L for indoor and light outdoor; electro-polished 316 reaches 25-30 years in marine; hot-dip galvanized welded mesh is cost-effective for outdoor agriculture and construction.
| Material | Best duty | Corrosion / wear rating | Typical life | Heavy-section life |
|---|---|---|---|---|
| Material | Indoor / dry | Outdoor / urban | Marine / coastal | Chemical / acidic |
| 304 stainless | 20+ years | 15-25 years | 10-15 years | 5-10 years |
| 304L stainless | 20+ years | 15-25 years | 10-15 years | 8-12 years |
| 316 / 316L stainless | 25+ years | 20-30 years | 15-25 years | 15-25 years |
| Hot-dip galvanized | 15-25 years | 10-20 years | 5-10 years | not recommended |
| Electro-polished 316 | 30+ years | 25-30 years | 20-30 years | 15-25 years |
Stainless corrosion behaviour aligns with ISO 9223 atmospheric classes; coating life depends on environment and is confirmed per RFQ.
Stainless mesh panel wire and opening reference table
Wire diameter and mesh opening are selected against application duty. Fine 0.5-1.5 mm wire with 6.4-12.7 mm opening for filter, sieve and cage; medium 2-3 mm wire with 25.4-50.8 mm opening for equipment guards, architectural and balcony screens; heavy 4-6 mm wire with 100-200 mm opening for concrete reinforcement. Send the application duty and our engineer specifies wire, opening and weld parameters.
| Screen class | Wire dia | Opening | Material / weave | Typical duty |
|---|---|---|---|---|
| Wire x Opening | Wire dia. | Opening | Approx. weight kg/sqm | Typical use |
| 1.0 mm x 6.4 mm (1/4 inch) | 1.0 mm | 6.4 mm | 1.4 kg | Filter / sieve / cage |
| 1.5 mm x 12.7 mm (1/2 inch) | 1.5 mm | 12.7 mm | 1.8 kg | Equipment guard / fence |
| 2.0 mm x 25.4 mm (1 inch) | 2.0 mm | 25.4 mm | 2.7 kg | Architectural / agriculture |
| 3.0 mm x 50.8 mm (2 inch) | 3.0 mm | 50.8 mm | 3.0 kg | Heavy fence / livestock |
| 4.0 mm x 100 mm (4 inch) | 4.0 mm | 100 mm | 3.4 kg | Concrete reinforcement |
| 5.5 mm x 150 mm | 5.5 mm | 150 mm | 4.2 kg | Heavy concrete reinforcement |
Weave selection follows ISO 4783 industrial woven wire screen practice; exact wire and opening confirmed per RFQ.
Stainless mesh panels export logistics, HS code and Incoterms 2020
Most stainless mesh panel buyers ask the same logistics questions before ordering: HS classification, container loading, port routing and Incoterms. The block below is the same logistics summary used on every Anping Hand in Hand quote.
| Item | Value |
|---|---|
| Term | Description |
| EXW Anping | Buyer arranges China inland trucking and export from Anping factory. |
| FOB Tianjin | Sea freight from Tianjin port, factory handles Chinese export clearance. |
| FOB Qingdao | Sea freight from Qingdao port, factory handles Chinese export clearance. |
| CIF destination | Sea freight + insurance to destination port; buyer pays import duty. |
| CFR destination | Sea freight to destination port; buyer arranges insurance + duty. |
| DAP delivery | Door-to-door delivery to buyer site; freight, insurance and customs handled. |
| DDP delivery | All inclusive door-delivery, including destination duty (limited countries). |
| Air freight | Urgent samples or small orders by air via Beijing or Shanghai airport. |
Incoterms 2020 supported on every quote
| Code | Rule | How we use it for stainless mesh panels |
|---|---|---|
| EXW | Ex Works (Anping factory) | Buyer arranges Chinese inland trucking, export clearance and freight from our Anping factory gate. |
| FOB | Free On Board (Tianjin) | Most-used. We deliver to Tianjin Xingang port, handle Chinese export clearance, you arrange sea freight and insurance. |
| FOB | Free On Board (Qingdao) | Alternative south route via Qingdao port; we handle export clearance. |
| CFR | Cost and Freight | We pay sea freight to your destination port; you arrange insurance and import duty. |
| CIF | Cost, Insurance, Freight | We pay sea freight + cargo insurance to your port; you handle import duty. |
| DAP | Delivered at Place | Door-to-door delivery; we handle freight and origin customs, you handle destination duty. |
| DDP | Delivered Duty Paid | All-inclusive door delivery (selected countries) including destination duty and last-mile. |
| FCA | Free Carrier | For air freight or container groupage; we deliver to nominated carrier in China. |
| CPT | Carriage Paid To | Multi-mode (sea + truck or sea + rail) freight to named destination; you arrange insurance. |
| CIP | Carriage and Insurance Paid | CPT + insurance; we cover transit insurance to nominated destination. |
| Air freight | Beijing or Shanghai airport | Urgent samples, small orders or critical replacement orders; lead time 5-10 days door-to-door. |
HS classification follows HS 7308.90 / 7314.31; Incoterms® 2020 rules are published by the International Chamber of Commerce.
Common procurement questions answered up front
Each answer below is written so a buyer or engineer can pull a complete reply on a single procurement question, with the verifiable numbers every project team needs.
What is stainless steel welded wire mesh?
Stainless steel welded wire mesh is a metal screen made of stainless steel wires (304 / 304L / 316 / 316L) electrically resistance-welded at every wire intersection, supplied in rolls or framed panels for filtration, equipment guards, architectural cladding, concrete reinforcement and animal cages.
What is the difference between 304 and 316 welded mesh?
316 contains 2-3 percent molybdenum that improves resistance to chlorides, the right grade for marine, coastal, pool, chemical and pharmaceutical environments. 304 is the cost-effective default for food, filter and architectural use.
What wire diameter and opening size are typical?
Wire diameter 0.5 mm to 6.0 mm and mesh opening 6.4 mm (1/4 inch) to 100 mm (4 inch) are the typical range. Most-asked: 1.0 mm x 12.7 mm and 2.0 mm x 25.4 mm.
Is welded mesh stronger than woven mesh?
For the same wire diameter and opening, welded mesh is more rigid because every intersection is fused. Woven mesh is more flexible, used for filtration with frequent backwashing or shaped applications.
What are typical roll widths and lengths?
Standard roll widths 0.5 m, 0.9 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m. Standard roll length 30 m; 10-50 m custom on request.
What surface finish is best for marine welded mesh?
For marine and chloride exposure, choose 316 / 316L in pickled and passivated finish, or electro-polished for the smoothest, most corrosion-resistant surface.
How to choose stainless welded mesh for filtration?
Match opening to particle size, wire diameter to pressure or flow rating, grade to fluid chemistry. Filtration typically uses 304 / 316 wire 0.5-2 mm with opening 6.4-25 mm, framed in support sheet.
What is the lead time and shipping time from China?
Stock spec rolls ship in 7-12 days; custom panels 15-25 days. Sea freight to main international ports 25-40 days; air freight 5-10 days for urgent samples.
Stainless mesh panel applications across industries
Filter housing & sieve panels
Pharmaceutical, food, oil and chemical filtration. 304 / 316 stainless framed panels, 0.5-2 mm wire, 6.4-25 mm opening; flat panels with U-edge for filter cartridge support.

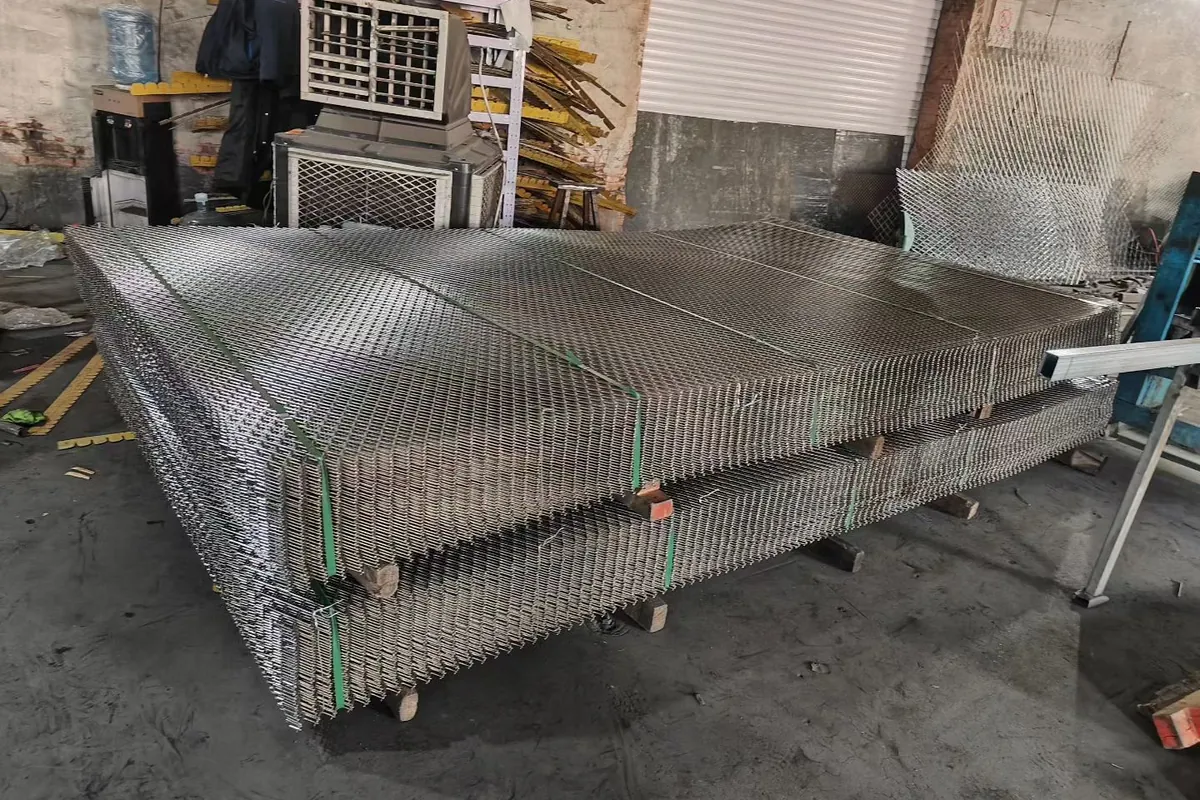

Equipment guards & cage panels
Robot cell, conveyor side, motor cover, fan guard, animal cage panels. 1.5-3 mm wire stainless framed in flat or angle steel, 12.7-50 mm opening, hinged or bolt-on.

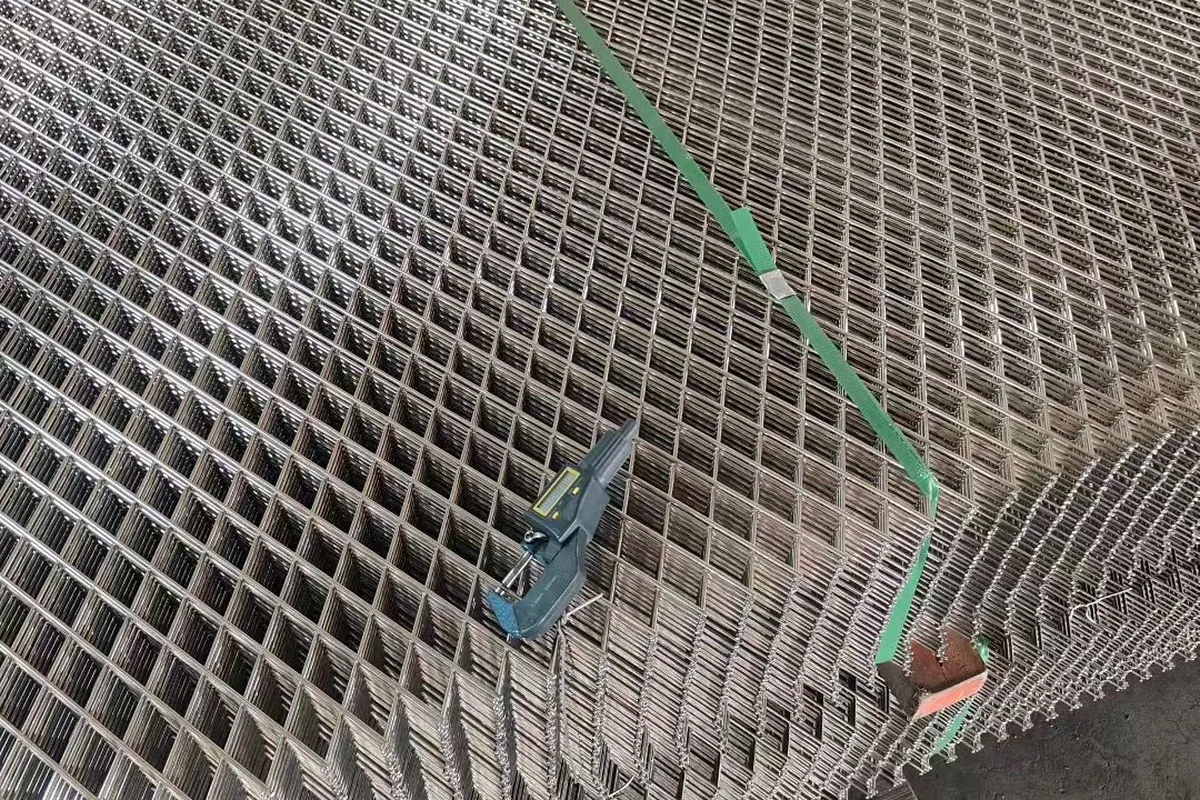

Architectural & balcony panels
Balcony screen, sunshade, ceiling, partition, facade panels. 304 stainless 1.5-3 mm wire framed in stainless flat bar, 25-50 mm opening; polished or brushed finish.
Concrete reinforcement panels
Slab, road, bridge, prefabricated panel reinforcement. Galvanized or stainless 4-6 mm wire framed panels, 100-200 mm opening; cut and bent to drawing.
Engineering scenario references: construction site fence panels and hoarding; 65Mn manganese mining screen wire mesh; farm and aquaculture fencing wire mesh; marine and coastal 316 stainless wire mesh; factory equipment guard mesh for heavy load duty; marine and chemical plant 316 stainless mesh; wire mesh application gallery.
Why buyers choose Anping Hand in Hand stainless mesh panels
- Welding line in house. Electric resistance welding lines for 0.5-6 mm wire, every intersection inspected for fusion strength.

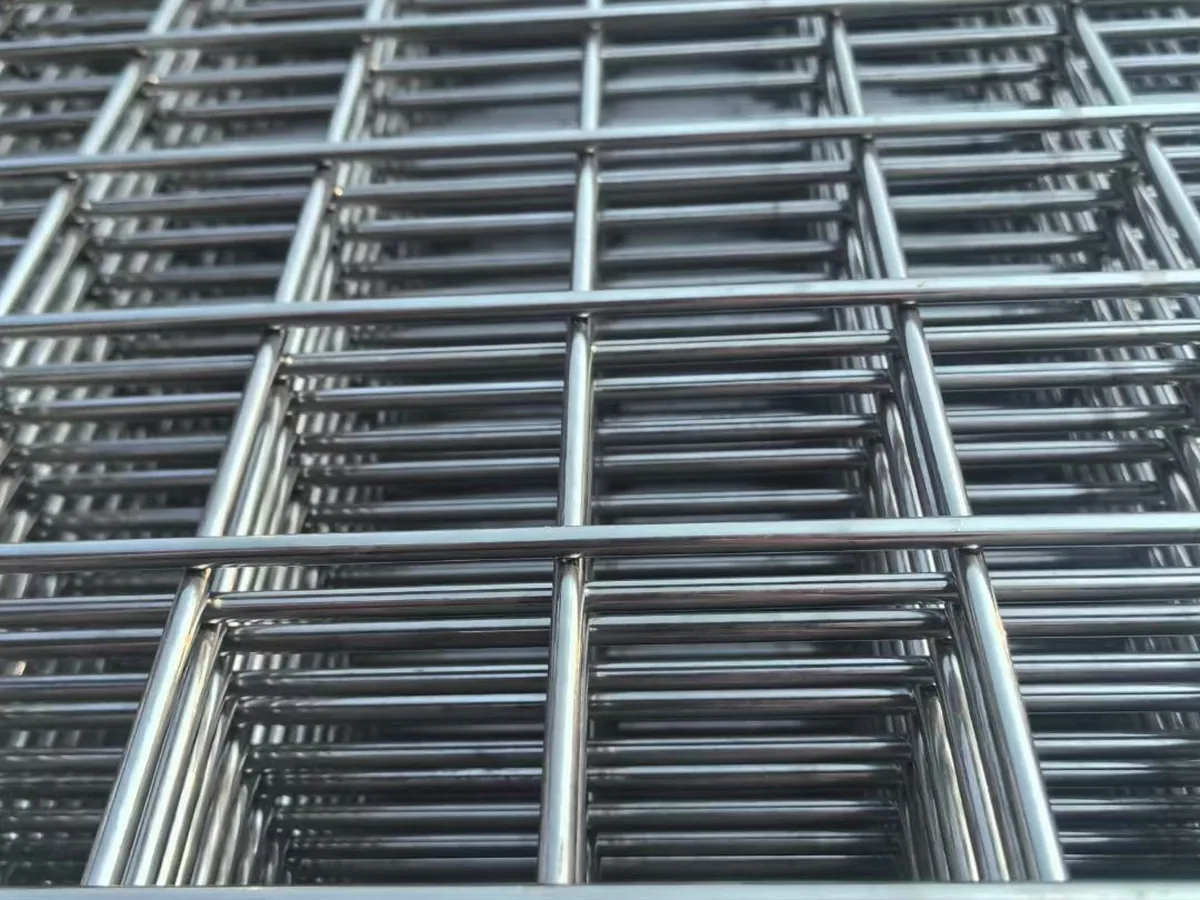

- Drawing-driven fabrication. Cut, bend, frame and edge-finish welded panels per CAD drawing in house, no third-party delay.
- Per-roll / per-panel QC. Wire diameter, opening, square-ness, weld-point strength and panel flatness inspected and recorded.
- Multi-grade flexibility. 304 / 304L / 316 / 316L on the same line, 321 and 310S on request, full mill test certificate.
- Container-load discount. 20GP / 40HQ container-load wholesale pricing for stock spec rolls and panels.
- Mixed-load loading. Mix wire diameter, opening and roll length in one container; mixed-load packing list provided.
- Distributor packaging. Branding-neutral packing, distributor logo printing, pallet relabeling supported on request.
- Sample program. Free A4 mesh sample swatch; cut-piece roll or panel sample at sample fee, refunded on order.
Quality, certification and traceability
Anping Hand in Hand stainless mesh panels are welded, cut, framed, finished and packed in house, so wire diameter, mesh opening, weld point strength, panel size and frame quality stay consistent panel to panel. Buyer site visit, third-party SGS / BV / TUV inspection and pre-shipment QC are unrestricted.

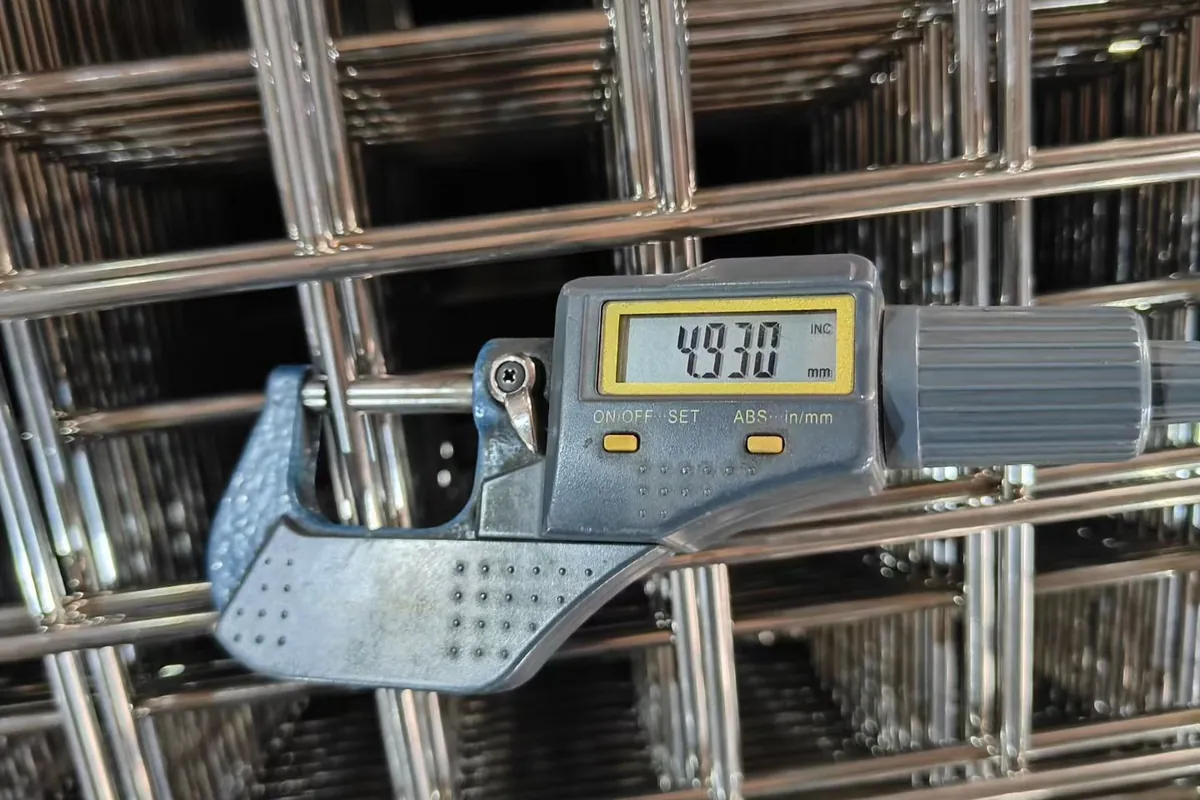

Per-roll / per-panel QC
Wire diameter, opening, square-ness, weld point strength and panel flatness inspected and recorded.
Mill test certificate

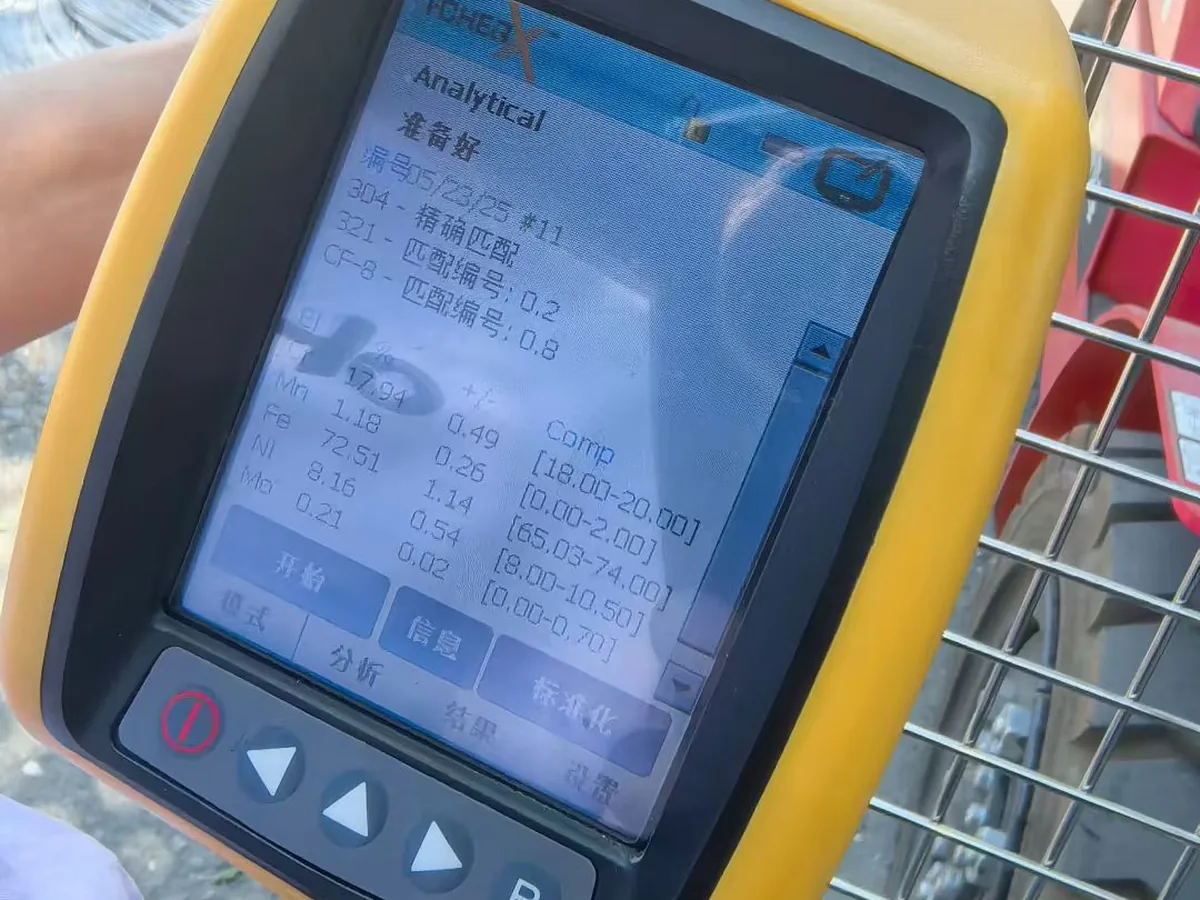

MTC for stainless steel by default; zinc thickness inspection for galvanized.
Third-party inspection
SGS / BV / TUV pre-shipment inspection welcome and arranged on request.
Drawing 1:1 fabrication
CAD drawing matched 1:1 against welded panel output for custom hooked-edge / framed designs.

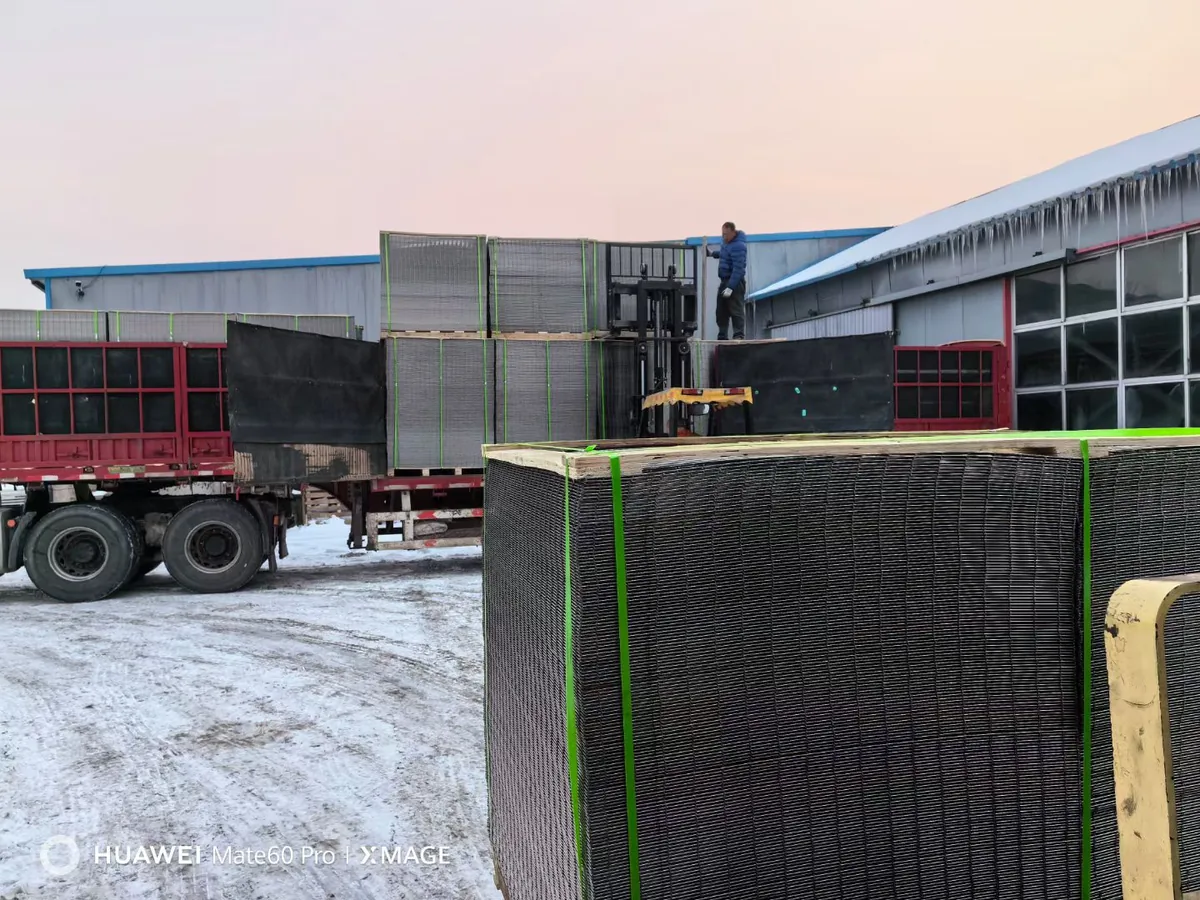

Container loading photos
Loading photos sent to buyer before B/L issuance for transparency.

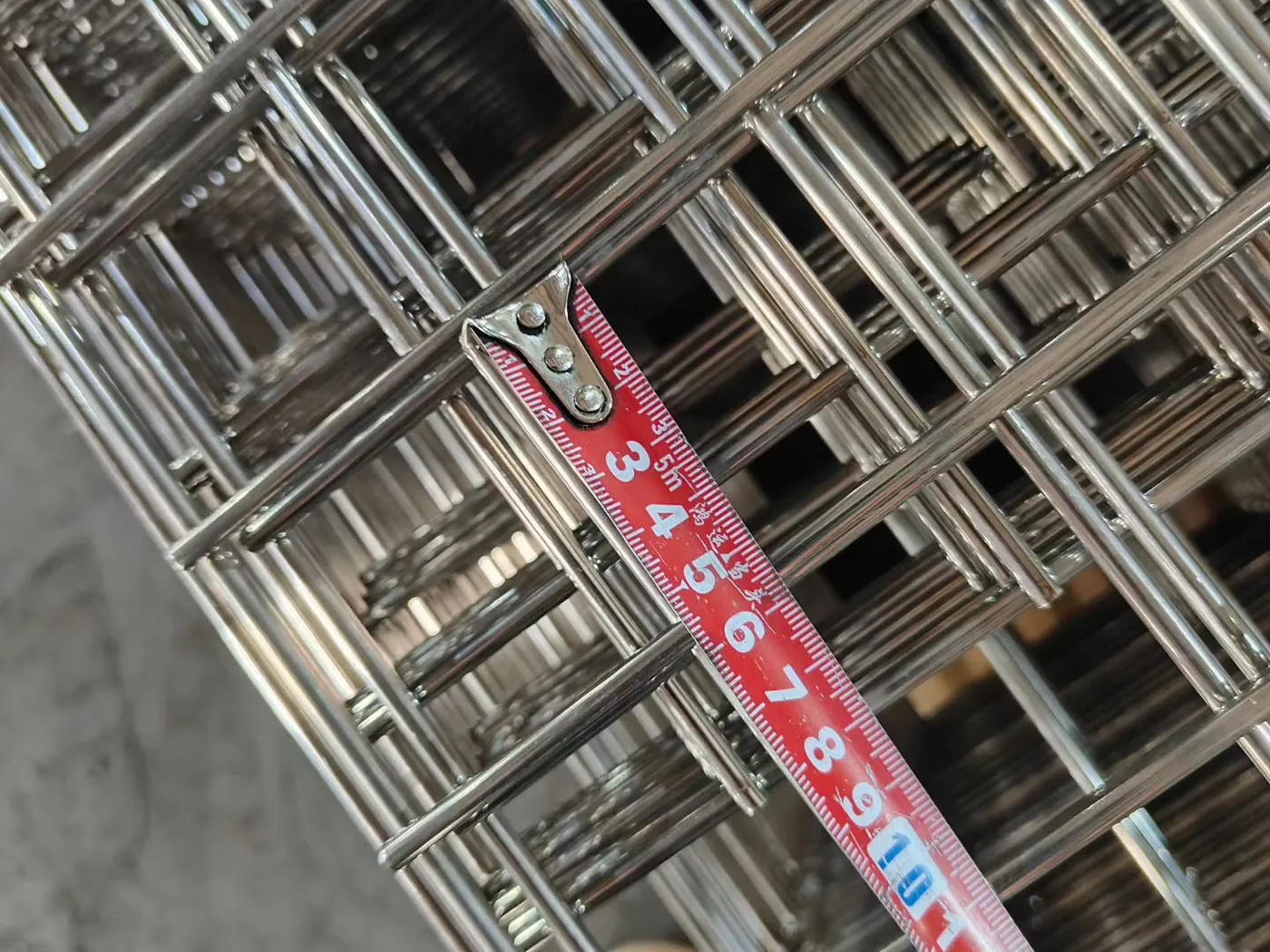

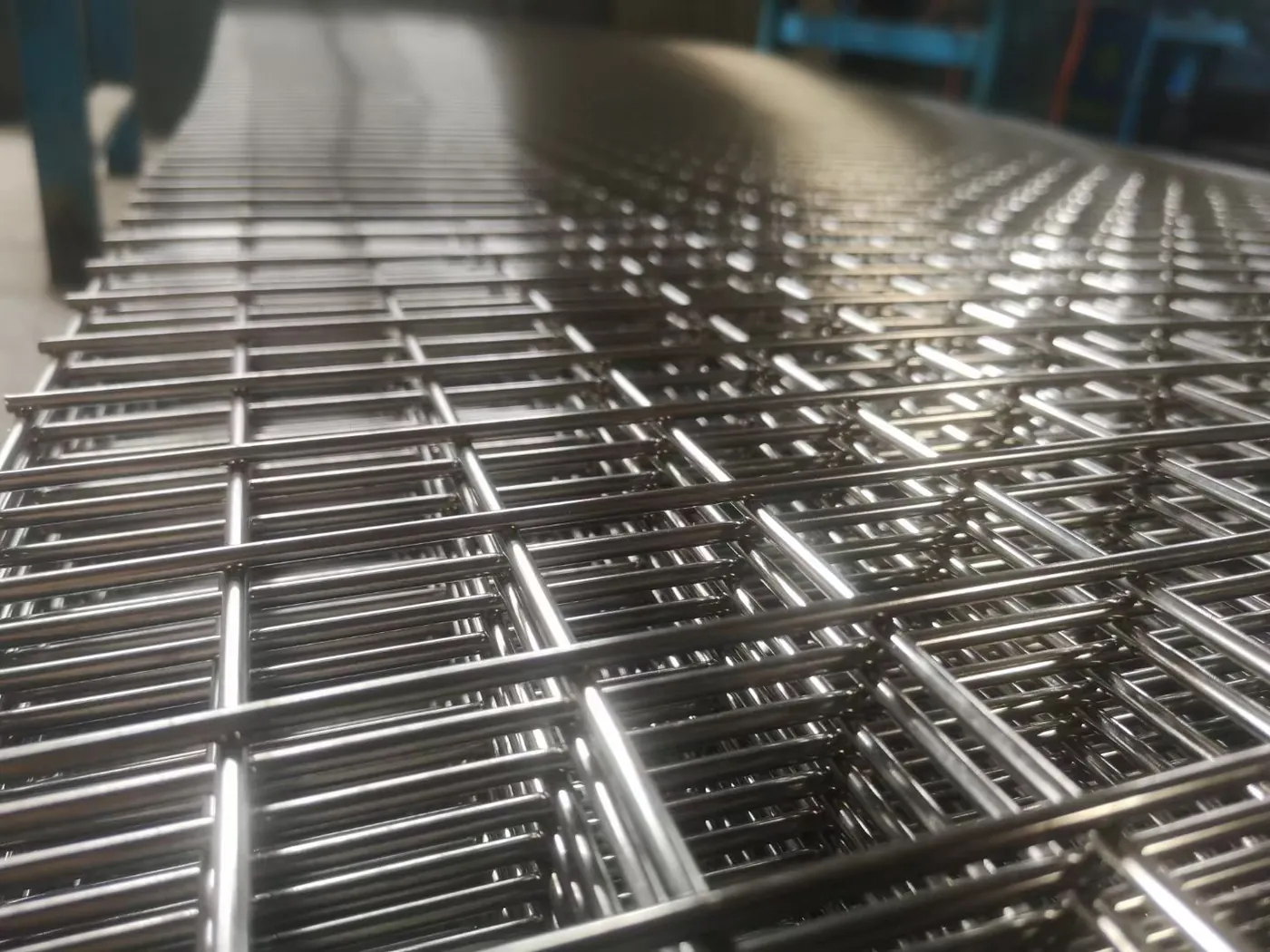

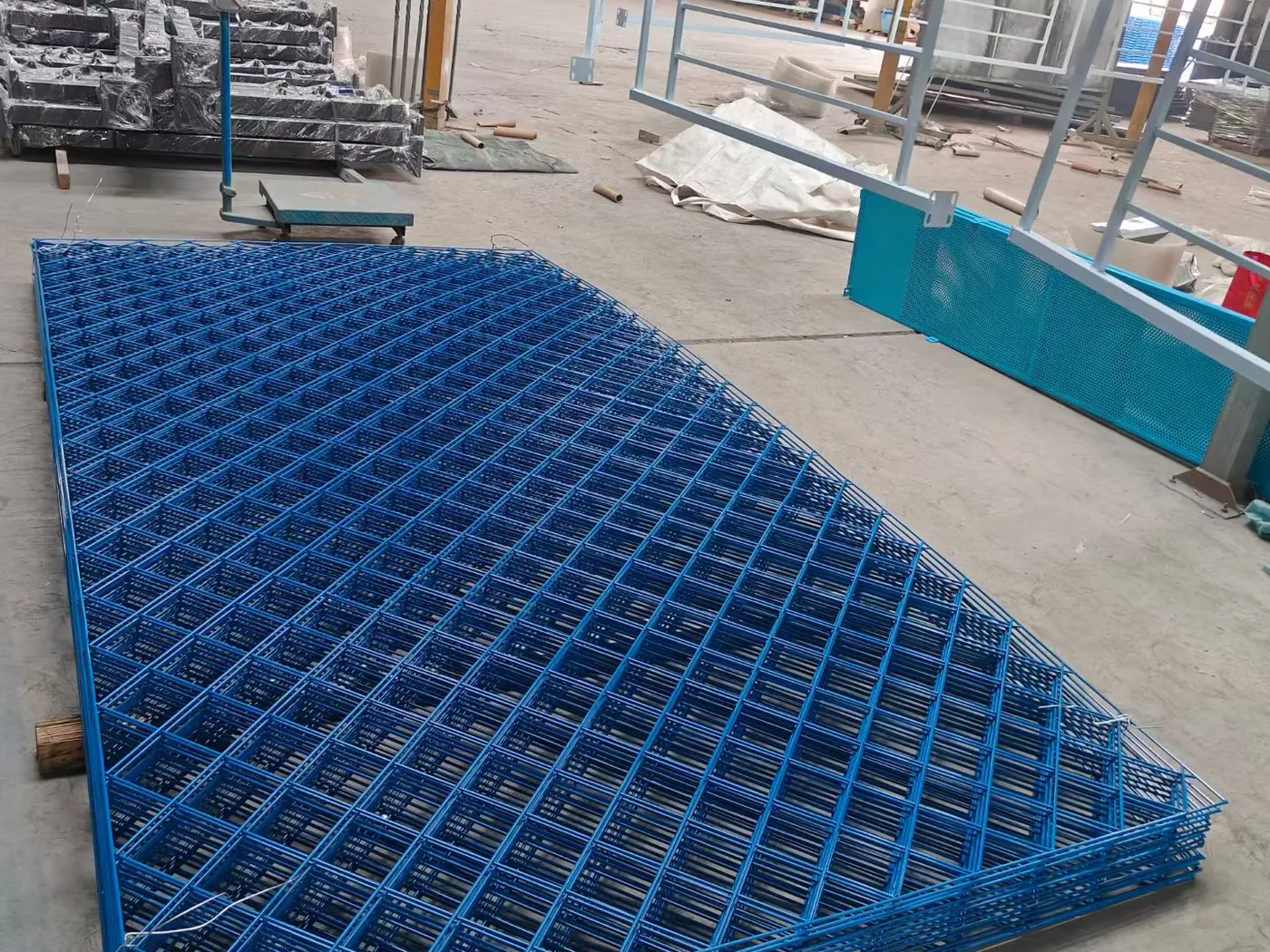

Inside our stainless steel mesh panel production line

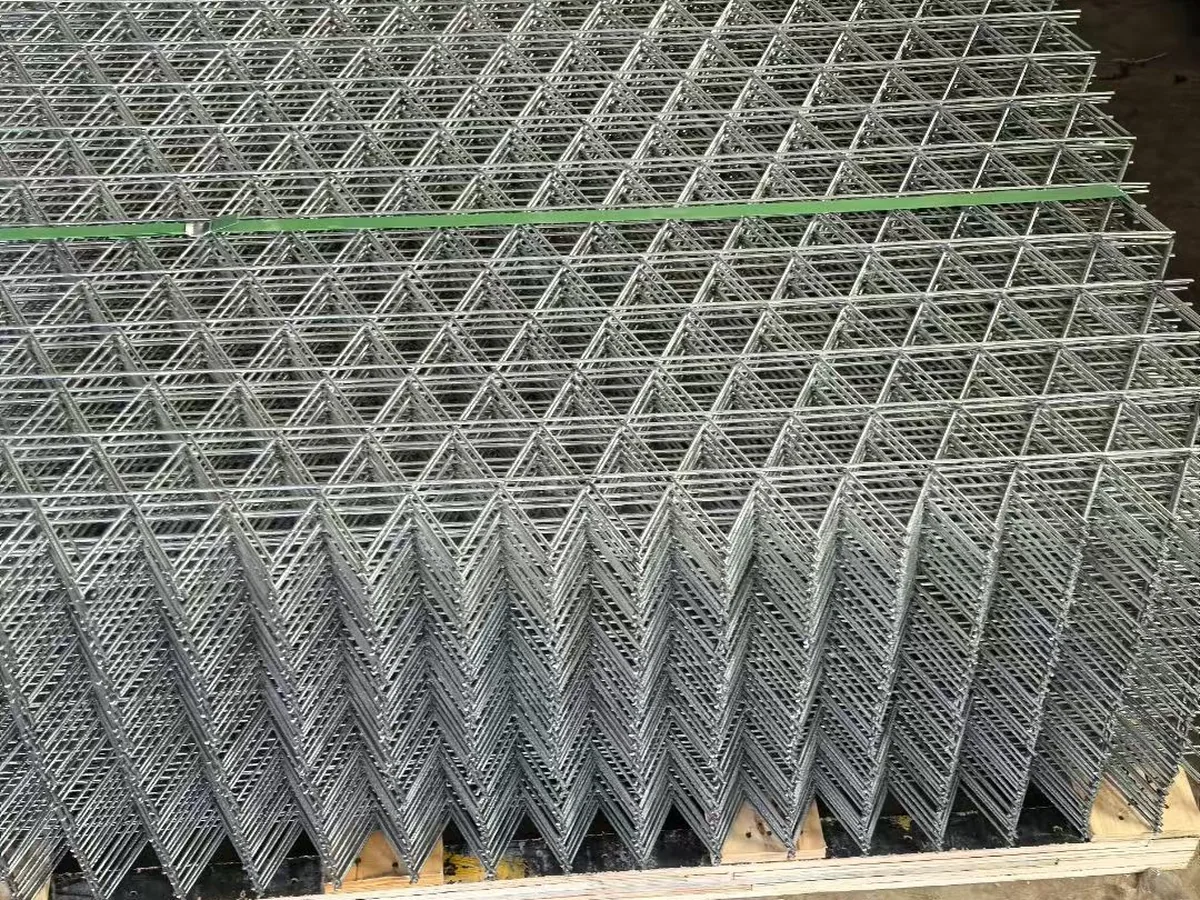

Our stainless steel framed welded mesh panels are fabricated at our Anping County, Hebei factory (USCC 91131125MA7FT3EA0D) using 304 / 316 / 316L stainless wire welded to flat or angle frames. Frame weld continuity inspected at every panel. Material certificates or inspection documents are available on request according to the RFQ and order requirement.
Manufacturer: Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) →
Compatible equipment and standards systems
Our stainless mesh panels is produced to fit the dimensions, hook strip, framing standards, or test profiles published by the following equipment manufacturers and standards bodies. Send us your system or screen model number with your RFQ and we will quote against the corresponding spec.
Brand names are property of their respective owners; listed for product compatibility / standards identification only. Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) is an independent stainless mesh panels manufacturer and is not affiliated with these brands or systems.
What you receive with every shipment
Every container we ship arrives with a complete document set so your QA, customs broker, and goods-in team have nothing to chase.
- ✓Mill test certificate (EN 10204 type 3.1) — Heat number, chemical composition, mechanical properties — on request per RFQ
- ✓Dimensional QC measurement record — Frame OD/ID, aperture, wire diameter, panel weight — measured against your approved drawing
- ✓Packing list with PO traceability — Roll / panel / sheet count, m² per unit, total weight, container loading sequence
- ✓Bill of lading (FOB Tianjin Xingang or Qingdao) — For your customs broker and freight forwarder
- ✓Country of origin certificate — Form A / Form E available for AU / NZ / Korea / RCEP markets
- ✓Sample inspection cert from SGS / BV / TUV / Lloyds — Type 3.2 third-party witness inspection on request, paid by buyer
Want to see a redacted sample document set before you place an order? Message engineer He Zhanbing on WhatsApp and he will email you a desensitized type 3.1 mill cert and SGS test report within one working day.
Export-ready capability for first-time international buyers
We are an Anping County, Hebei manufacturer prepared to handle full international procurement documentation in English — mill cert, packing list, BoL, country-of-origin form, freight forwarder coordination from Tianjin Xingang or Qingdao. Whether this is your first import from China or your fiftieth, our process is the same.
New buyer? Request a 5 m sample roll first; we ship by FedEx / DHL with a redacted EN 10204 type 3.1 mill cert so your QA team can validate before placing a container order.
Quick stainless mesh panels procurement reference
Where is the stainless welded mesh manufactured? At our Anping County factory, Hebei Province, China. Anping is the national wire mesh production cluster (4000+ enterprises, 500+ export-licensed factories). Our facility welds, fabricates, finishes, packs and ships in-house.
Can I visit the factory or arrange a video tour? Yes. Live video factory tour on WhatsApp video call. On-site visits welcome with one week notice; we can pick you up from Beijing Daxing or Shijiazhuang Zhengding airport (drive about 2.5 hours).
Which ports do you ship from? Tianjin and Qingdao for sea freight; Beijing Capital Airport and Shanghai Pudong for air freight. EXW, FOB, CIF, DAP and DDP (selected countries) supported.
Frequently asked stainless mesh panels questions
What grades of stainless steel welded mesh do you supply?
What wire diameter and mesh opening combinations can you weld?
Do you supply rolls or panels?
What is the minimum order quantity (MOQ)?
Do you provide mill test certificate (MTC)?
What surface finishes are available?
Can you fabricate panels (cut, bend, frame)?
What is the typical lead time?
What is the difference between 304 and 316 welded mesh?
How do you pack stainless welded mesh for export?
Do you ship overseas? Which Incoterms?
What information do I send for a fast quote?
More procurement resources: bulk wholesale factory direct quote · wire mesh datasheet and service life downloads.
Stainless mesh panel cost estimator (FOB / CIF / DDP)
Pick the material, wire class and quantity to see an instant FOB Tianjin estimate range. Numbers are based on public Tianjin port reference prices for Q4 2025 – Q2 2026 and become a binding quote only after the RFQ form is processed by our engineer.
Inside the Anping Hand in Hand factory – stainless steel mesh panels production gallery
Mesh panels fabrication line, QC inspection, stockyard, factory exterior, stock bay and an architectural application reference. All photos taken on site at the Anping Hand in Hand wire mesh factory. Buyers welcome to video tour or SGS / BV / TUV inspection before payment. USCC 91131125MA7FT3EA0D.
Why buyers can trust Anping Hand in Hand on this order
Anping County, Hebei Province is the national wire mesh production cluster of China with 4000+ wire mesh enterprises within 30 km. Our workshop, warehouse and shipping yard back every quotation with physical evidence buyers can verify on site, by video call, or via SGS / BV / TUV inspection.
He Zhanbing
Senior Application Engineer | Anping Hand in Hand
5 years on the wire mesh and steel grating production line. Reviews drawings, opening specifications, panel size, finish and packing. Replies within one business day with binding pricing, weight per panel and lead time. Confirms grade selection (304 / 316 / 316L / duplex / 65Mn / Q235) against your application before quotation.
Verified legal entity and buyer-checkable records
Registered name (EN): Anping Hand in Hand Wire Mesh Products Co., Ltd.
Registered name (CN): 安平县手拉手丝网制品有限公司
Unified Social Credit Code (USCC): 91131125MA7FT3EA0D
Registered address: Anping County, Hebei Province, China
Geo coordinates: Lat 38.2314 / Lng 115.6253 (Anping wire mesh cluster)
Buyers may request a legal entity check, on-site visit appointment, video factory tour, or third-party (SGS / BV / TUV) inspection before payment. Quotations and contracts are issued under the registered legal entity above. Mill test certificate (MTC) traceable to wire batch number supplied by default; ASTM B117 salt-spray, ASTM E8 tensile and ISO 9227 reports supplied on request.
Business license (click to view full size)
Standards we work to: ASTM A123 / A153 (hot-dip galvanizing), ASTM A580 / A480 (stainless steel grade), ASTM E8 (tensile), ASTM B117 (salt-spray), ISO 9227 (NSS), ISO 9001 (quality management — in renewal cycle), EN 10204 type 3.1 (mill cert), EN 10088 (stainless), EN 1461 (galvanizing), EN 10218 (steel wire), AS 4687 / EN 12811 (construction fence), AS 1657 (walkway), ISO 13857 (machine guard), NACE MR0175 / ISO 15156 (sour service).
Get a same day stainless mesh panel quote
4-step wizard. Pick the buyer track that matches you, send the key parameters, and our engineer replies within one business day.

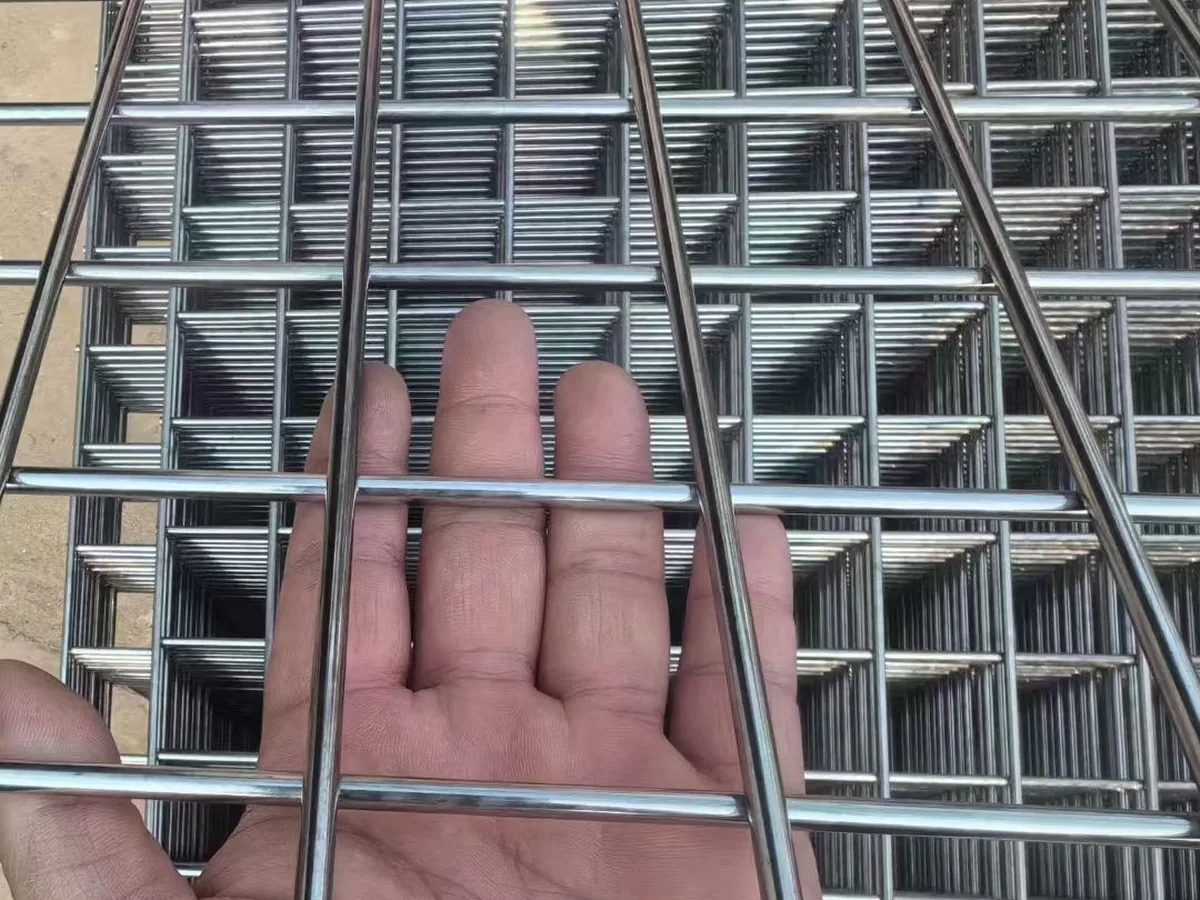

Stainless steel mesh panels tailored to your specs, shipped from Anping
304 / 304L / 316 / 316L stainless steel; wire 0.5-6 mm, opening 6.4-100 mm; standard 1.0 x 2.0 m or 1.2 x 2.4 m, custom up to 2.5 x 6.0 m; framed in flat or angle steel, hooked-edge, U-edge, polished or pickled in house; low MOQ, full export packing.
Factory and product gallery
Real photos of the Anping Hand in Hand stainless welded mesh production line, finished rolls and panels. EXIF metadata removed for buyer privacy.
Trade Policy & Compliance for Singapore
Policy score: 85/100 — China-Singapore FTA + RCEP zero tariff on HS 7314 with Chinese certificate of origin. Singapore PDPA aligns with GDPR for B2B forms.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: CSFTA + RCEP 0% with valid CoO
Required Conformity
- EN 10204 type 3.1 MTC
- SGS / BV third-party inspection
- ISO 9001
- Singapore safety mark not required for grating
Data & Trade Law
- Data law: PDPA 2012
- Import license: low
Project applications in Singapore
Jurong Island petrochemical walkway
316L stainless steel grating 32×5 bearing bar, salt-air corrosion resistance for refinery decks. Anping factory 316L pickled-passivated finish matches Singapore petrochem service-life specs.
Tuas Mega Port heavy-duty fence
Hot-dip galvanized welded mesh panel, AS/NZS 4680 class 600 zinc, 25-year service life. Anping factory routinely supplies similar specs FOB Tianjin/Qingdao to Singapore PSA terminals.
MRT depot perimeter mesh
Crimped wire mesh + steel grating walkway for Land Transport Authority depot tenders. Standard finish hot-dip galv ASTM A123 / ISO 1461 65-86 micrometre.
FAQ — Singapore buyers
Does Anping Hand in Hand have CSFTA Certificate of Origin for steel mesh exports to Singapore?
Yes. Form CSFTA and Form E (RCEP) issued by China CCPIT for all shipments to Singapore. Both qualify for 0% preferential tariff on HS 7314 / 7308.30.
What is the typical transit time and FOB port from Anping to Singapore?
Container loaded at Tianjin Xingang or Qingdao port. Standard transit Tianjin to PSA Singapore 14-18 days, Qingdao to PSA 11-15 days. EXW Anping County to Tianjin port ground transit 2 days.
Can the factory supply mill test certificate to Singapore standard?
Yes. Material certificates or inspection documents are available on request according to the RFQ and order requirement. Singapore PSB or PUB tenders requiring third-party witness inspection can be arranged with SGS or BV at the Anping factory before payment.
Is there any import duty or PDPA registration required for industrial wire mesh in Singapore?
No import duty under CSFTA / RCEP 0%. GST 9% applies at import (recoverable for B2B). PDPA does not require registration for B2B procurement forms.
Does Anping factory have prior Singapore export experience?
Yes. Wire mesh and steel grating shipments to Singapore PSA-terminating ports occur regularly under CSFTA preferential origin. Reference shipping records and container loading photos available upon RFQ.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 11-18 days to PSA Singapore
- Container capacity: 20 GP holds about 12-14 tons of 25×3 grating; 40 HQ about 20-22 tons
- Packing: Steel pallet with steel strapping for 6 m panels; wooden crate (ISPM 15 treated) for short pieces
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Singapore import documentation.
Trade Policy & Compliance for New Zealand
Policy score: 82/100 — NZ-China FTA upgraded 2022 maintains 0% tariff on HS 7314. AS/NZS standards shared with Australia simplify compliance.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: NZ-China FTA + RCEP 0% HS 7314 with CoO
Required Conformity
- EN 10204 type 3.1 MTC
- AS/NZS 4680 hot-dip galvanizing certificate
- ISO 9001
- SGS / BV third-party inspection
Data & Trade Law
- Data law: Privacy Act 2020
- Import license: low
Project applications in New Zealand
Auckland Watercare combined-sewer trench cover
AS 3996 class B steel grating with locking bar, cast-in concrete frame. Anping factory 30×5 bearing bar at 30 mm pitch matches Watercare BCS-W14 spec.
Christchurch transport corridor mesh barrier
Welded mesh panel + hot-dip galv AS 4680 class 600 zinc for state highway separation, 25-year coastal-rural service. Anping factory routine spec, FOB Tianjin to Auckland 20-24 days.
Otago dairy farm fencing and mesh
Crimped wire mesh + welded gates for large pastoral operations, AS/NZS 4671 reinforcement-grade wire compatible. Standard hot-dip galv finish or 304 stainless.
FAQ — New Zealand buyers
Does Anping Hand in Hand qualify for NZ-China FTA Form NZ-China?
Yes. China CCPIT issues NZ-China FTA Certificate of Origin upon request. 0% preferential tariff on HS 7314 / 7308.30 when CoO accompanies shipment.
What galvanizing class is required for New Zealand outdoor service?
AS 4680 class 600 (610 g/m2 minimum, about 85 micrometre) is the NZ industry standard for outdoor 25-year service. Coastal applications within 5 km of coast often spec class 710 or upgrade to 316L stainless.
Can the Anping factory supply AS 3996 class A/B/C/D trench cover gratings?
Yes. Standard class B (heel-safe, light vehicle) and class D (heavy duty) trench covers with locking bar, banding and lifting lugs are manufactured to AS 3996. EN 124 D400 equivalent for utility road service available on order.
Are there any biosecurity packaging rules for shipments to New Zealand?
Yes. MPI requires ISPM 15 heat-treated timber for all wooden packaging. Anping factory uses certified ISPM 15 treated pine crates for all NZ-bound shipments, with stamped IPPC mark.
Does Anping factory have prior New Zealand export experience?
Yes. Steel grating and welded mesh shipments to Auckland, Tauranga and Lyttelton ports occur regularly. Reference shipping records and AS 4680 batch galvanizing certificates available.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 20-26 days to Auckland / Tauranga / Lyttelton
- Container capacity: 20 GP about 12-14 tons of 25×3
- Packing: ISPM 15 treated wood crates mandatory for MPI biosecurity
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support New Zealand import documentation.
Trade Policy & Compliance for United Arab Emirates
Policy score: 82/100 — GCC 5% common external tariff on HS 7314. Jebel Ali Free Zone 0% duty for re-export to GCC. ESMA conformity required; UAE.S 5006 marking mandatory.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 5%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: GCC 5% common tariff + Jebel Ali FZ 0% for re-export
Required Conformity
- EN 10204 type 3.1 MTC
- ESMA conformity certificate
- UAE.S 5006 marking
- ADQCC for Abu Dhabi tenders
- ISO 9001
Data & Trade Law
- Data law: PDPL 2022
- Import license: med (ESMA)
Project applications in United Arab Emirates
Dubai Metro station perimeter fence
Hot-dip galvanized welded mesh panel, 50×100 mesh opening, 4 mm wire. Anping factory routine spec FOB Qingdao to Jebel Ali 19-22 days.
Jebel Ali port apron heavy-duty trench cover
Steel grating EN 124 D400 with locking bar. 316L upgrade option for marine-spray zones. Anping factory 40×5 bearing bar + welded banding.
Etihad Rail siding stainless mesh panel
316L stainless steel mesh for desert sand control and ballast retention. NACE MR0175 compatible chemistry available for sour-service segments.
FAQ — United Arab Emirates buyers
Does Anping factory have ESMA conformity certificate for steel grating in UAE?
Yes. ESMA registration via authorized agent for HS 7314 grating. UAE.S 5006 marking applied at factory pre-shipment. Documentation issued per consignment to satisfy customs clearance at Jebel Ali and Khalifa Port.
Can I re-export Chinese steel grating from Jebel Ali Free Zone to Saudi Arabia or Oman?
Yes. Jebel Ali Free Zone operates 0% duty entry. Re-export to GCC member states (Saudi, Oman, Bahrain, Kuwait) crosses the GCC common customs union at 5% common external tariff with simplified clearance.
What stainless grade is recommended for UAE coastal infrastructure?
316L (PREN 24-27) for general coastal humidity and salt spray. For continuous immersion in seawater or splash zone (seawater intake at desal plants), duplex 2205 (PREN 34-38) or super duplex 2507 is recommended. Anping factory stocks all four grades.
Does Anping factory support Abu Dhabi ADQCC tender prequalification?
Yes. ADQCC vendor application supported via authorized local representative. Required documents include EN 10204 3.1 MTC, ISO 9001, SGS verification report and trade license translation.
What is the typical transit time FOB Tianjin or Qingdao to Jebel Ali?
19-24 days end to end. EXW Anping County to Qingdao ground transit 2 days. Qingdao to Jebel Ali sea transit 17-22 days. Container loading photos sent before B/L.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 19-24 days to Jebel Ali
- Container capacity: 20 GP 12-14 tons; 40 HQ 20-22 tons
- Packing: Steel pallet with steel strapping; salt-air desiccant for stainless
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support United Arab Emirates import documentation.
Trade Policy & Compliance for Australia
Policy score: 80/100 — ChAFTA 0-5% preferential on HS 7314 with Chinese Certificate of Origin. No active AD on Chinese steel grating. AS/NZS standards align directly with Anping factory hot-dip galv capability.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 5%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 15%
- FTA: ChAFTA 0-5% preferential under CoO
Required Conformity
- EN 10204 type 3.1 MTC
- AS/NZS 4680 hot-dip galvanizing certificate
- JAS-ANZ scheme third-party inspection
- ISO 9001
Data & Trade Law
- Data law: Privacy Act 1988
- Import license: low
Project applications in Australia
WA Pilbara iron-ore mine catwalk
40×5 hot-dip galv AS 4680 class 610, abrasion-resistant. Anping factory supplies similar specs FOB Tianjin to Fremantle 22-26 days. AS 1554.1 welding certificate issued.
QLD coal port walkway and ladder
316L stainless steel mesh for chloride-spray service near port apron. Common spec 30×5 bar at 30 mm pitch with welded edge banding.
VIC municipal trench cover
AS 3996 class B steel grating with locking bar, cast-in concrete. Anping factory routinely produces AS 3996 class B and class D for Australian state government tenders.
FAQ — Australia buyers
Does Anping Hand in Hand have ChAFTA Certificate of Origin for steel grating exports to Australia?
Yes. Form ChAFTA CoO issued by China CCPIT for HS 7314 / 7308.30 to qualify for ChAFTA 0-5% preferential tariff. Without CoO the MFN tariff 5% applies.
What is the difference between AS 4680 class 600, 610, 710 zinc coatings?
AS 4680 class 600 is 600 g/m2 minimum (about 85 micrometre). Class 610 is 610 g/m2 (about 87 micrometre). Class 710 is 710 g/m2 (about 100 micrometre). Class 600 is standard outdoor; class 710 is recommended for coastal C5-M atmosphere within 5 km of ocean.
Can the Anping factory supply AS 3996 trench cover classes B and D?
Yes. AS 3996 class B (heel-safe, light vehicle, 250 kN test load) and class D (heavy duty industrial, 400 kN) are standard product lines at the Anping factory. Locking bar, lifting lugs and continuous welded edge banding are standard.
Are there AQIS biosecurity rules for packaging into Australia?
Yes. AQIS requires ISPM 15 heat-treated and certified timber for all wooden packaging. Anping factory uses certified ISPM 15 pine crates with stamped IPPC mark, plus container fumigation if specified.
Does Anping factory have experience supplying Western Australia mining tenders?
Yes. Steel grating, welded mesh and crimped wire mesh shipments to Fremantle, Brisbane and Sydney occur regularly. JAS-ANZ third-party inspection at the Anping factory before B/L is available on request for major tenders.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 20-26 days to Fremantle / Brisbane / Sydney
- Container capacity: 20 GP about 12-14 tons of 25×3
- Packing: ISPM 15 treated wood crates for AQIS biosecurity
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Australia import documentation.
Trade Policy & Compliance for Chile
Policy score: 80/100 — China-Chile FTA in force 2006, expanded 2019. 0% tariff on HS 7314 / 7308.30 with Chinese CoO Form F. No AD on Chinese steel grating. Copper mining sector dominates demand.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: China-Chile FTA HS 7314 0% with CoO
Required Conformity
- EN 10204 type 3.1 MTC
- ISO 9001
- SGS Chile verification
- NCh standards alignment (mirrors ASTM)
Data & Trade Law
- Data law: Law 19628 (data protection)
- Import license: low
Project applications in Chile
Escondida copper mine catwalk
40×5 hot-dip galv ASTM A123 steel grating. BHP Escondida operations standard spec; Anping factory routinely supplies 40×5 with welded banding, lifting lugs and bilingual Spanish-English MTC.
Codelco Chuquicamata mining perimeter
Chain-link plus welded mesh fence with hot-dip galv class 600 zinc, 25-year service life in high-altitude UV-intense Atacama climate. NCh 218 reinforcement-grade wire compatible.
Antofagasta port-area trench cover
EN 124 D400 steel grating with locking bar for heavy truck movement near copper concentrate loading dock. 316L upgrade option for chloride-prone splash zones.
FAQ — Chile buyers
Does Anping Hand in Hand qualify for China-Chile FTA Form F Certificate of Origin?
Yes. Form F CoO issued by China CCPIT confirms Chinese origin and qualifies for 0% preferential tariff on HS 7314 / 7308.30 under the China-Chile FTA expansion 2019.
What is the typical transit time and FOB port from Anping to Chile?
FOB Tianjin or Qingdao to Valparaiso, San Antonio or Mejillones (Antofagasta region) typically 35-42 days via Panama Canal. EXW Anping County to port ground transit 2 days. Spanish-language container manifest provided on request.
Are mill test certificates accepted by Chilean copper mining tenders (Codelco / BHP / Antofagasta Minerals)?
Yes. Material certificates or inspection documents are available on request according to the RFQ and order requirement. Major mining houses accept English MTC; some prefer bilingual EN/ES, available on request.
Does the Anping factory align with Chilean NCh standards?
Yes. NCh 218 (steel reinforcement wire), NCh 1180 (grating) and NCh 432 (load codes) are aligned with ASTM A1011, ANSI MBG 531 and ASCE 7 series. Anping factory production is dual-certified to ASTM and NCh-acceptable specs.
Does Anping factory have prior experience supplying Chilean copper mining sector?
Yes. Steel grating, welded mesh and chain-link fence shipments to Valparaiso, San Antonio and Mejillones occur for both prime contractors and EPCM contractors (Bechtel, Fluor, etc.) supplying BHP, Codelco and Antofagasta Minerals operations.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 35-42 days to Valparaiso / San Antonio / Mejillones via Panama
- Container capacity: 20 GP 12-14 tons; long-haul fumigation required
- Packing: ISPM 15 treated wood crates; salt-air desiccant; bilingual ES/EN container manifest on request
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Chile import documentation.
Container-Ready Packing & Loading
Palletizing, film-wrapping and container loading are performed at our own Anping workshop. We currently operate as an OEM / contract manufacturer for Anping-based trading companies serving overseas industrial buyers; the same container-ready packing workflow applies to direct international RFQs.
Specification sheets and RFQ checklists
Use the Download Center to prepare the correct product-specific parameters, quantity, packing and destination before manual quotation. Wire mesh uses wire diameter and opening; steel grating uses bearing bar and span direction; perforated metal uses sheet thickness, hole size and pitch; temporary fence uses panel size, frame tube, base and clamp.
