Mining Screening Wire Mesh | 65Mn Spring-Steel Crimped Mesh for Vibrating Screen Decks
Anping Hand in Hand factory direct 65Mn spring-steel crimped wire mesh (per GB/T 1222-2016), double-crimp / lock-crimp / flat-top weave for mining and quarry screening: vibrating screen deck, ore sizing, aggregate processing, sand and gravel classification, coal washing and powder screening. Wear life measured in tonnage screened, hooked-edge for tensioned screen frame, drawing-driven panel cut.
Get my mining screen mesh quote Send a detailed RFQ
- High-tensile 65Mn spring-steel wire (per GB/T 1222-2016) for abrasive mining and aggregate screening
- 304 / 316 stainless for chemical / coastal screening; galvanized for dry classification
- Double-crimp, lock-crimp and flat-top weave per screen deck duty
- Hooked-edge fabrication for tensioned screen frame mounting
- Wire diameter 1-12 mm, opening 0.5-200 mm, panel cut to drawing
- Wear life 200-2000 tonnes screened depending on ore hardness and weave
- RFQ replied by named engineer within one business day
Recommended products: 65Mn spring-steel crimped wire mesh manufacturer · 304 / 316 stainless welded mesh for wash screen · custom mesh panels for screen deck · perforated metal sheet for trommel screen.
Why 65Mn manganese, double-crimp and hooked-edge decide mining screen life
Mining screen mesh selection is governed by ore hardness, screen deck duty (primary / secondary / fine), wet vs dry processing and tension-mounting style. The four mechanisms below decide material, weave and edge fabrication.
65Mn wear resistance
65Mn spring-steel wire (per GB/T 1222-2016) is the standard choice for hard-rock primary screening. Mill certificate available on request.
Double-crimp lock
Double-crimp weave locks every wire intersection mechanically (no welding), prevents opening size drift under vibration. Standard for medium-to-fine screening 5-50 mm opening.
Hooked-edge tension
Hooked-edge along screen length wraps the side rail, allowing tension-bolt take-up. Edge fabrication cured per panel size; reduces deck flex and slip.
Wear vs corrosion
Mining duty: 65Mn manganese for wear, galvanized for cost, 304 for corrosion-prone ore (sulphide tail), 316 for coastal / chemical washing.
Material and weave guide for mining screen wire mesh
Engineers select material against ore hardness and processing chemistry; weave against screening duty and opening size; edge fabrication against screen frame style. 65Mn manganese is the wear-rated default for hard-rock primary; stainless and galvanized for specialty applications. crimped wire mesh opening size guide · 304 vs 316 stainless material comparison · surface treatment selection guide · wire mesh buying guide and material comparison.
| Material | Best use | Notes |
|---|---|---|
| 65Mn spring steel (per GB/T 1222-2016) | Hard rock, ore sizing | Industry default for primary screening; mill certificate available on request |
| Spring steel 50Mn | Aggregate, gravel | Cost-effective alternative |
| 304 stainless | Mineral wash, sulphide ore | Corrosion resistant |
| 316 stainless | Coastal washing, chemical | Chloride / acid resistant |
| Galvanized HC steel | Dry classification, sand | Cost-effective dry screening |
| PU / rubber overlay | Heavy ore, fine wet screening | Quieter specialty overlay |
Mining and quarry screening application zones
Six standard mining and aggregate procurement scenarios with recommended product, weave and edge spec, and expected wear life. Send the zone plus your screen model number and our engineer matches panel cut, weave and hook style.
Vibrating screen deck (primary)
Recommended: 65Mn manganese double-crimp mesh
Spec: 4-8 mm wire, 25-50 mm opening, hooked-edge per deck size, double-crimp weave
Primary screening after crusher for hard rock, granite, basalt, iron ore. High-impact wear duty; 65Mn spring-steel wire for primary crushing circuits.
Aggregate / gravel sizing
Recommended: 50Mn or 65Mn lock-crimp mesh
Spec: 3-6 mm wire, 5-25 mm opening, lock-crimp weave, hooked-edge
Quarry aggregate sizing, road base material, concrete sand classification. Lock-crimp keeps opening stable under prolonged vibration.
Sand and fine classification
Recommended: Galvanized or stainless flat-top mesh
Spec: 1-3 mm wire, 0.5-5 mm opening, flat-top crimp for smooth flow
Fine sand, foundry casting sand, glass-grade silica sizing. Flat-top crimp prevents particle hang-up; smooth top surface.
Coal preparation / washing
Recommended: 304 stainless crimped mesh + sieve panel
Spec: 2-5 mm wire, 5-50 mm opening, 304 stainless for sulfur-resistant washing
Coal sizing, dewatering screen, anthracite classification. Stainless resists sulfur acid leach during wet washing process.
Mineral processing / sulphide ore
Recommended: 316 stainless lock-crimp mesh
Spec: 2-4 mm wire, 1-25 mm opening, 316 stainless pickled finish
Copper, zinc, lead sulphide concentrator screening. 316 resists chloride pitting and acidic flotation chemistry.
Trommel and rotary screen
Recommended: Galvanized welded panel with frame
Spec: 3-5 mm wire, 25-100 mm opening, framed in steel for cylindrical mounting
Trommel screen for waste sorting, compost classification, recycling material sizing. Framed panel curved to drum diameter.
Recommended Anping Hand in Hand products for mining screening procurement
Each product page covers full specifications, opening size, wire diameter, panel size, and pricing for FOB Tianjin, CIF, DAP and DDP. RFQ is replied within one business day by a named engineer.
- 65Mn spring-steel crimped wire mesh manufacturer
- 304 / 316 stainless welded mesh for wash screen
- custom mesh panels for screen deck
- perforated metal sheet for trommel screen
Sibling application pages: marine and coastal 316 stainless wire mesh · factory equipment guard mesh selection · chemical plant 316 stainless mesh · wire mesh application gallery.
Mining screen wire mesh procurement FAQ
Common procurement questions answered up front. Bulk wholesale buyers see request a mining screen mesh quote or contact Anping factory team.
Is 65Mn the same as manganese steel screen mesh?
In the mining and quarry trade, heavy woven screen cloth is often called "manganese steel mesh" because of its manganese content. Our mining screen cloth is woven from 65Mn spring-steel wire (per GB/T 1222-2016), a high-carbon spring steel with about 0.65% carbon and 0.9-1.2% manganese. It is not the same as high-manganese Hadfield cast steel (11-15% Mn), which is used for crusher liners rather than drawn wire. 65Mn gives screen panels high yield strength and toughness for vibrating decks; mill certificate is available on request.
Why is 65Mn spring-steel wire used for mining screening?
65Mn is a high-carbon spring steel (per GB/T 1222-2016) drawn into wire and woven into screen panels. Its high yield strength and toughness suit the repeated impact and vibration of hard-rock primary screening. It is not the same as high-manganese (Hadfield) cast steel, which is used for crusher liners rather than woven wire. Mill certificate with chemistry and tensile values is available on request.
What is the difference between double-crimp and lock-crimp weave?
Double-crimp: every wire is corrugated before weaving, locking intersections mechanically; standard for medium-to-fine screening 5-50 mm opening, deck thickness flexible. Lock-crimp: only at intersection points, more rigid, holds opening tighter under prolonged vibration; default for aggregate 5-25 mm. Flat-top: smooth upper surface for fine flow, used for sand and foundry casting.
How is wear life of mining mesh measured?
Wear life depends on ore hardness, feed size, opening and weave. We confirm expected service life per application and supply an engineering data sheet with the quotation.
What hooked-edge styles do you fabricate?
Standard 50 mm hook depth, 90-degree fold for tension-bolt take-up; long-hook 100 mm for heavy-duty deck. Hook on length only, length plus width, or specialty drawing-driven shape. Engineer confirms hook style against your screen frame drawing or photo.
Can you cut panels to my screen deck drawing?
Yes. Send 2D drawing or screen frame manufacturer model number (Sandvik, Metso, Terex Finlay, McLanahan, Astec, Haver and Boecker, Schenck etc.) and our engineer cuts to within +/- 5 mm tolerance. Pre-tensioning options for specific deck systems supported.
What is the MOQ and lead time for mining mesh?
MOQ, production schedule and delivery timing are confirmed in the RFQ after we review material, opening, panel size, edge style, quantity, packing and current workshop schedule. Sea-freight transit is quoted per destination port.
Do you supply mesh for specific brand vibrating screens?
Yes. We routinely supply replacement screen panels for: Sandvik QA / QE / QH series, Metso Lokotrack and Nordberg, Terex Finlay 683 / 694 / 884, McLanahan, Astec KPI-JCI, Haver and Boecker NIAflex, Schenck Process. Send screen model number and panel size; we match opening, weave and hook style.
What do you ship to mining buyers internationally?
Sea freight from Tianjin / Qingdao to Australia (Pilbara, NT), South America (Chile, Peru, Brazil), Africa (RSA, Zambia, DRC), Russia / CIS, Canada and US mining regions. Container-load wholesale pricing for stock 65Mn panels; mixed-load with stainless or galvanized for project orders.
Inside the Anping Hand in Hand factory – mining sourcing transparency

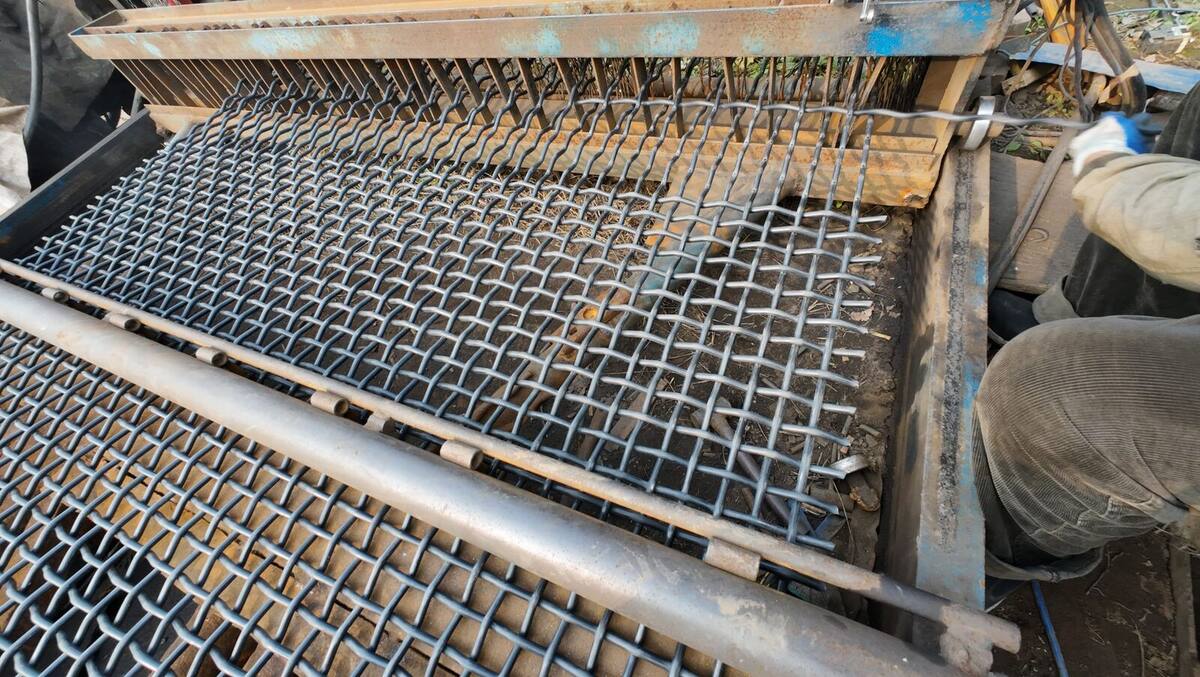

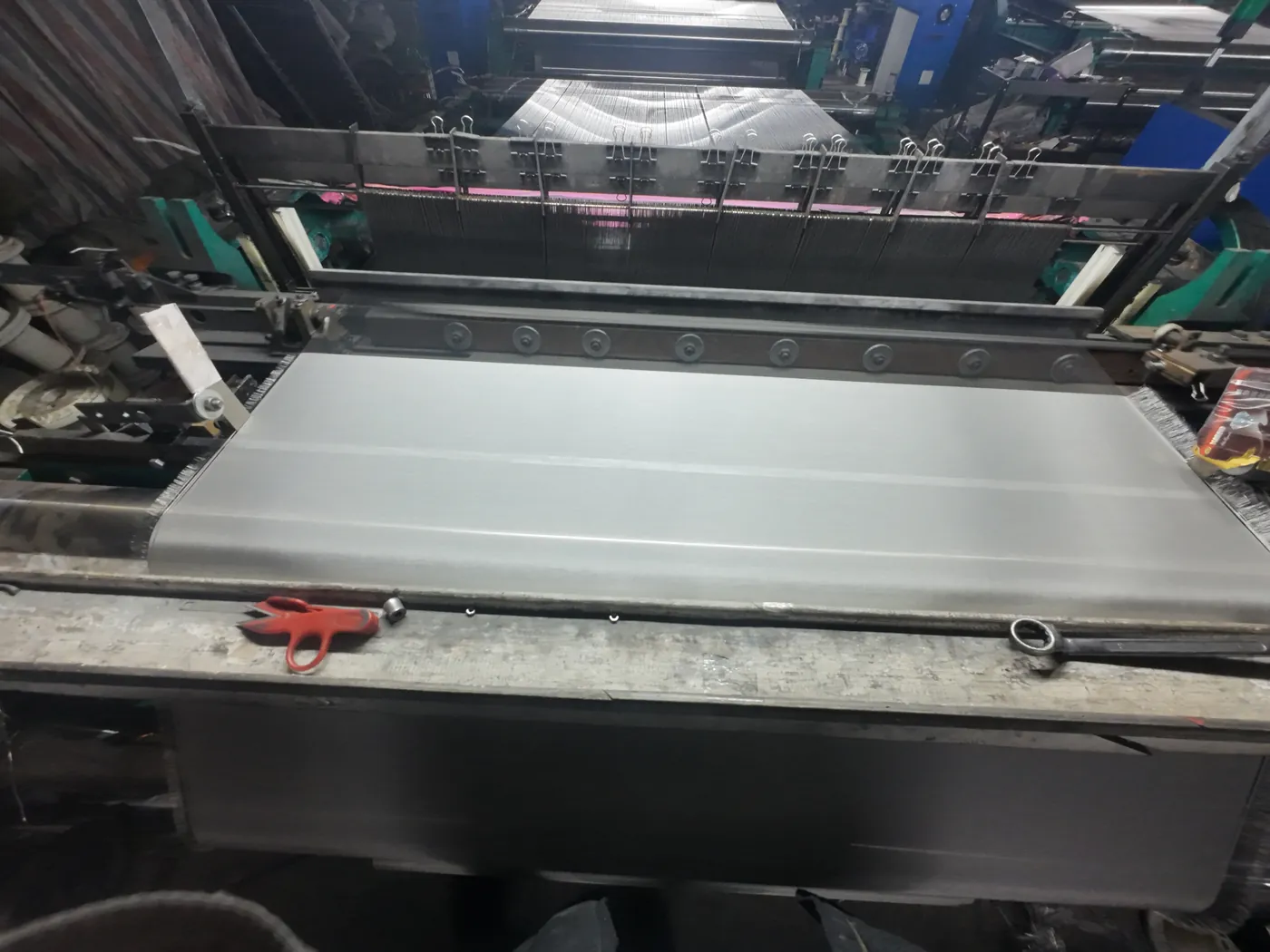

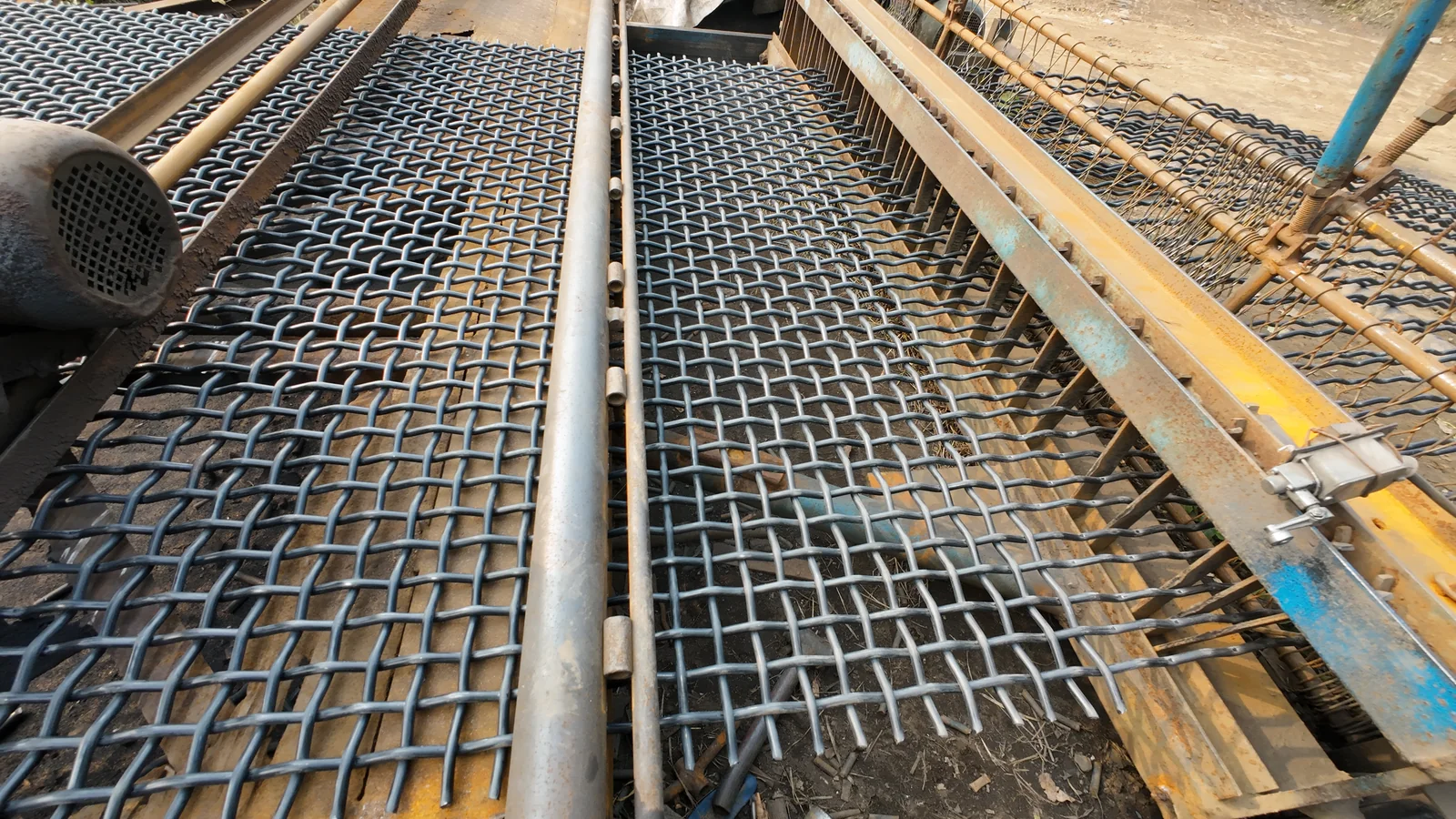

Crimped wire mesh and 65Mn spring-steel screens for mining and quarry vibrating screens – weaving looms, 65Mn screens, vibrating screen overlays and finished roll inventory sourcing transparency at the Anping wire mesh factory. Buyers welcome to visit, video tour, or appoint SGS / BV / TUV third-party inspection. USCC 91131125MA7FT3EA0D.
Why buyers can trust Anping Hand in Hand on this order
Anping County, Hebei Province is the national wire mesh production cluster of China with 4000+ wire mesh enterprises within 30 km. Our workshop, warehouse and shipping yard back every quotation with physical evidence buyers can verify on site, by video call, or via SGS / BV / TUV inspection.
He Zhanbing
Senior Application Engineer | Anping Hand in Hand
5 years on the wire mesh and steel grating production line. Reviews drawings, opening specifications, panel size, finish and packing. Replies within one business day with binding pricing, weight per panel and lead time. Confirms grade selection (304 / 316 / 316L / duplex / 65Mn / Q235) against your application before quotation.
Verified legal entity and buyer-checkable records
Registered name (EN): Anping Hand in Hand Wire Mesh Products Co., Ltd.
Registered name (CN): 安平县手拉手丝网制品有限公司
Unified Social Credit Code (USCC): 91131125MA7FT3EA0D
Registered address: Anping County, Hebei Province, China
Geo coordinates: Lat 38.2314 / Lng 115.6253 (Anping wire mesh cluster)
Buyers may request a legal entity check, on-site visit appointment, video factory tour, or third-party (SGS / BV / TUV) inspection before payment. Quotations and contracts are issued under the registered legal entity above. Mill test certificate (MTC) traceable to wire batch number supplied by default; ASTM B117 salt-spray, ASTM E8 tensile and ISO 9227 reports supplied on request.
Business license (click to view full size)
Standards we work to: ASTM A123 / A153 (hot-dip galvanizing), ASTM A580 / A480 (stainless steel grade), ASTM E8 (tensile), ASTM B117 (salt-spray), ISO 9227 (NSS), EN 10204 type 3.1 (mill cert), EN 10088 (stainless), EN 1461 (galvanizing), EN 10218 (steel wire), AS 4687 / EN 12811 (construction fence), AS 1657 (walkway), ISO 13857 (machine guard), NACE MR0175 / ISO 15156 (sour service).
Get a same day mining screen mesh quote
Send the form below or WhatsApp +86 15075801841 for a same day reply. Drawings (2D / 3D / STEP) and salt-spray test requirements welcome.
Engineering reference: see our steel grating load capacity and span selection guide for ANSI/NAAMM MBG 531 load tables, span formulas and a 5-step procurement workflow.
Manufacturer evidence and quality control
The mining screening wire mesh described on this page is manufactured at our Anping County, Hebei factory (USCC 91131125MA7FT3EA0D) by Anping Hand in Hand Wire Mesh Products Co., Ltd. Mill cert per EN 10204 type 3.1 issued for every order; type 3.2 third-party witness inspection (SGS / BV / TUV / Lloyds) on request.
Manufacturer: Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) →
Compatible equipment and standards systems
Our wire mesh is produced to fit the dimensions, hook strip, framing standards, or test profiles published by the following equipment manufacturers and standards bodies. Send us your system or screen model number with your RFQ and we will quote against the corresponding spec.
Brand names are property of their respective owners; listed for product compatibility / standards identification only. Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) is an independent wire mesh manufacturer and is not affiliated with these brands or systems.
What you receive with every shipment
Every container we ship arrives with a complete document set so your QA, customs broker, and goods-in team have nothing to chase.
- ✓Mill test certificate (EN 10204 type 3.1) — Heat number, chemical composition, mechanical properties — issued for every order
- ✓Dimensional QC measurement record — Per-product critical dimensions verified against your approved drawing — measured against your approved drawing
- ✓Packing list with PO traceability — Roll / panel / sheet count, m² per unit, total weight, container loading sequence
- ✓Bill of lading (FOB Tianjin Xingang or Qingdao) — For your customs broker and freight forwarder
- ✓Country of origin certificate — Form A / Form E available for AU / NZ / Korea / RCEP markets
- ✓Sample inspection cert from SGS / BV / TUV / Lloyds — Type 3.2 third-party witness inspection on request, paid by buyer
Want to see a redacted sample document set before you place an order? Message engineer He Zhanbing on WhatsApp and he will email you a desensitized type 3.1 mill cert and SGS test report within one working day.
Export-ready capability for first-time international buyers
We are an Anping County, Hebei manufacturer prepared to handle full international procurement documentation in English — mill cert, packing list, BoL, country-of-origin form, freight forwarder coordination from Tianjin Xingang or Qingdao. Whether this is your first import from China or your fiftieth, our process is the same.
New buyer? Request a 5 m sample roll first; we ship by FedEx / DHL with a redacted EN 10204 type 3.1 mill cert so your QA team can validate before placing a container order.
