Steel Grating Manufacturer | Hot Dip Galvanized Industrial Bar Grating
Anping Hand in Hand factory direct steel grating for industrial platforms, drainage trench covers, stair treads and offshore walkways. Press welded Q235 HDG, 304 / 316 stainless and aluminum. Custom panel size, MOQ 1 m², 7 to 15 days lead time, full export documents.
Get my steel grating quoteSend a detailed RFQDownload spec sheet PDF (4 pages)
- Source factory in Anping wire mesh cluster, not a trading agent
- Anping County hosts 4000+ wire mesh enterprises and 500+ export-licensed factories
- Press welded steel grating produced to ANSI/NAAMM MBG 531 and BS 4592 dimensions
- Hot dip galvanized to ASTM A123 (75 to 120 micron coating)
- Custom panel size from 1 m2, lead time 7 to 15 days for stock specs
- RFQ replied by a named application engineer under one business day
- Factory open to buyer visit, third-party QC and pre-shipment inspection
Looking for a specific build? See our heavy load steel grating for construction projects or marine anti-corrosion grating for drainage and offshore decks. Need a different mesh family? Browse our stainless steel welded mesh for filtration and architectural use, crimped wire mesh for vibrating screens and quarry, perforated metal sheet for facade and acoustic panels, stainless steel mesh panels for cladding and balustrade, construction site fence panels and temporary barriers.
Send a 10-second Steel Grating RFQ
Two fields. He Zhanbing replies within one business day. No login, no signup.
- Anping source factory
- Reply within 24h
- MOQ 1 m²
- USCC 91131125MA7FT3EA0D

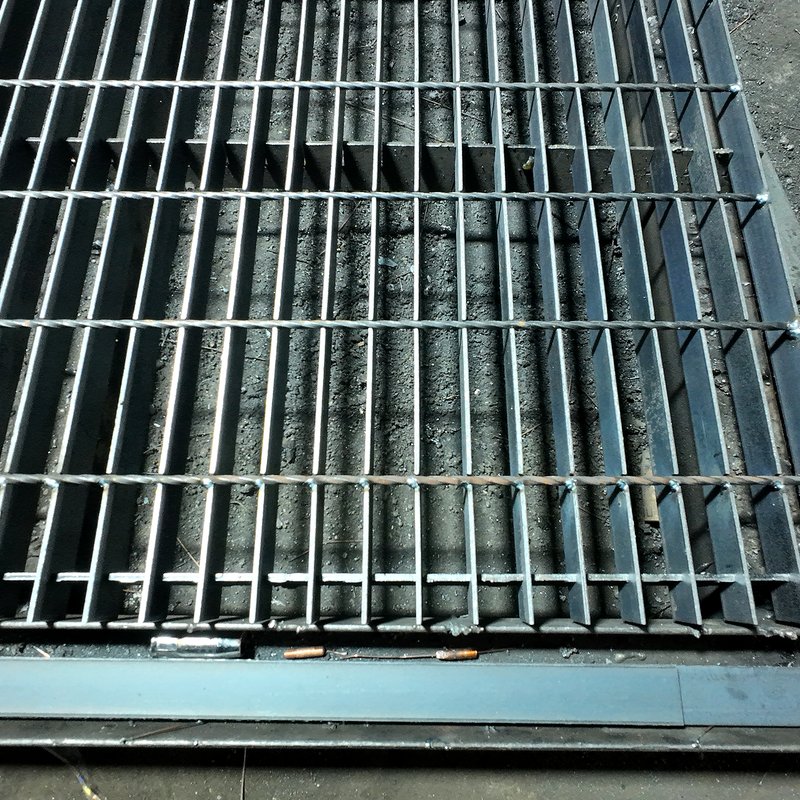

Container-Ready Steel Grating from Our Workshop
Palletizing, film-wrapping and container loading are performed in our Anping workshop. We currently produce for Anping-based trading companies serving overseas industrial buyers; the same container-ready packing workflow applies to direct international RFQs.
Get factory Steel Grating quote within 24h
Reply from named application engineer He Zhanbing. Anping source factory, no trading agent.
What is steel grating
Steel grating is an open grid metal product made by welding parallel bearing bars to perpendicular cross bars at a fixed mesh pitch. Anping Hand in Hand produces press welded carbon steel grating, 304 and 316 stainless steel grating and aluminum grating for industrial platforms, walkways, stair treads, drainage trench covers and offshore decking.
Each panel is hot dip galvanized to ASTM A123 with mean coating between 75 and 120 micron, produced to the dimensional rules of ANSI/NAAMM MBG 531 and BS 4592, and shipped with a mill certificate keyed to the heat number of your order.
Steel grating specifications and standards
| Parameter | Range / standard value |
|---|---|
| Material | Q235 carbon steel (HDG), 304 / 316 stainless steel, 6061 aluminum |
| Bearing bar size | 20×3 mm to 100×10 mm, common 32×5 / 40×5 / 50×5 mm |
| Cross bar | phi6 to phi10 mm twisted square bar, common phi8 mm |
| Mesh pitch | 30×100 / 40×100 / 50×100 mm (custom on request) |
| Panel size | Width 100 to 2000 mm, Length 1000 to 6000 mm, common 995×2000 / 1000×3000 |
| Surface treatment | Hot dip galvanized 75 to 120 micron, electro galvanized, painted, polished, mill finish |
| Tolerance | Bearing bar 1 mm, panel size 2 mm |
| Standards | ANSI/NAAMM MBG 531, BS 4592, AS 1657, EN 1991-1-1 |
| MOQ | 10 panels for stock specs, 1 square meter for custom |
| Lead time | 7 to 15 days for standard, 20 to 25 days for custom |
Each steel grating order is engineered around four parameters that drive both price and load capacity: bearing bar size, mesh pitch, surface treatment and panel quantity. Send these four values plus the destination port and we will reply with a same day quote.
Common steel grating types
- Press welded grating. Heavy press welded by machine. Highest strength and tightest tolerance, used for industrial platforms and walkways under heavy loads.

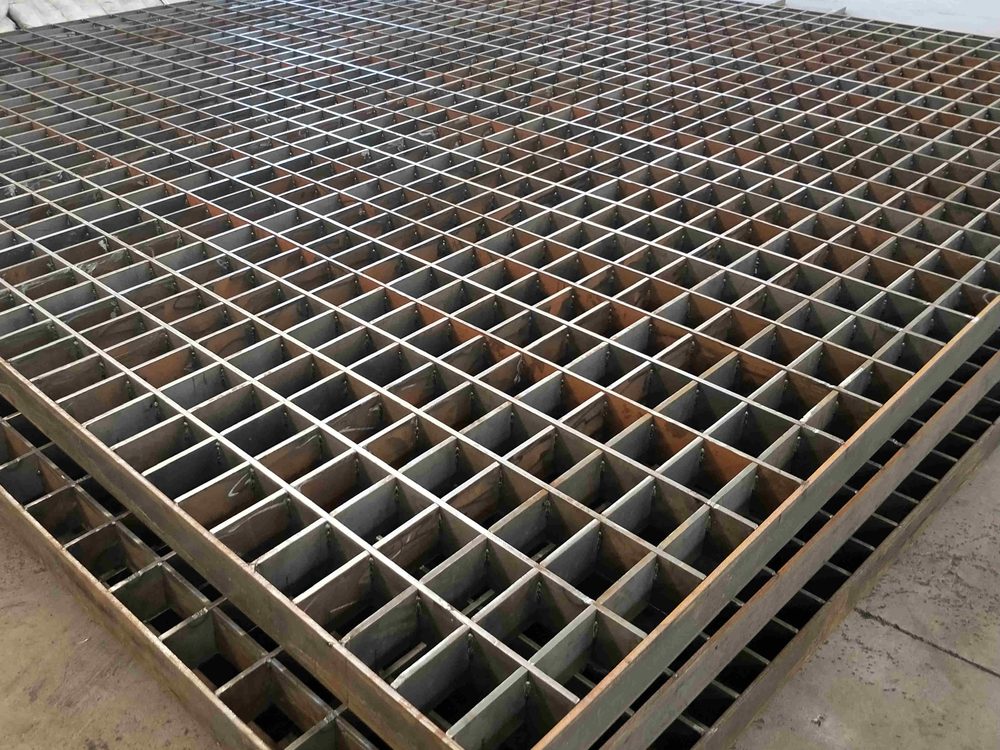

- Swage locked grating. Cross bars swage locked into bearing bars for aluminum or stainless variants where welding is not preferred.

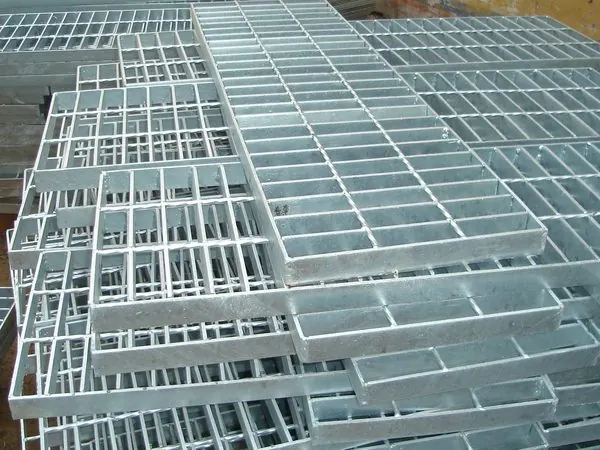

- Serrated grating. Bearing bars serrated for anti slip. Required on wet, oily or pedestrian surfaces in chemical and food plants.

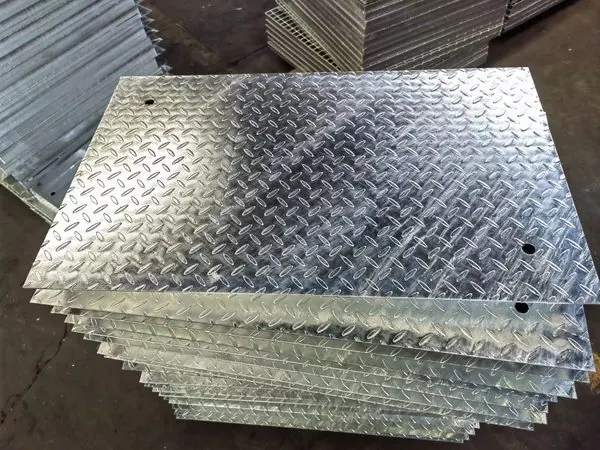

- Composite grating. Top sealed with checker plate to prevent small parts from falling through. Common on offshore and chemical platforms.
For load-bearing engineering, see our steel grating load bearing selection guide and hot dip galvanizing service and custom fabrication.
Full steel grating specification table (11 standard parameters)
This 11-parameter table is the same procurement-ready format used on our PDF spec sheet. Engineers can copy any line into a drawing call-out or RFQ; every value references a published industry standard (ANSI/NAAMM MBG 531-09, BS 4592:1987, AS 1657-1985, ASTM A123, ISO 1461, GB/T 13912:2002).
| Parameter | Range / standard value |
|---|---|
| Material | Q235B / S275JR carbon steel; SS304 / SS316 stainless; 6061 aluminum |
| Bearing bar | 20×3 mm to 100×10 mm (common 25×3, 32×5, 40×5, 50×5) |
| Bearing bar pitch | 12.5 / 22 / 25.4 / 30 / 34 / 40 / 41 / 60 mm |
| Cross bar | 5 / 6 / 8 / 10 mm round or twisted square bar |
| Cross bar pitch | 33 / 38 / 50 / 76 / 100 mm |
| Bearing bar type | Flat / I-bar / Serrated flat / Serrated I-bar |
| Surface treatment | Untreated / Hot-dip galvanized (75-120 um) / Painting / Stainless |
| Grating standard | ANSI/NAAMM MBG 531-09 / BS 4592:1987 / AS 1657-1985 / YB/T 4001.1-2007 / EN 1991-1-1 |
| Galvanizing standard | ASTM A123 / A153 / ISO 1461 / GB/T 13912:2002 |
| Package | Seaworthy package: pallet + steel strap + corner protector + bar code |
| MOQ | 50 pieces standard, 1 m2 for custom (lower than peer 50-pc baseline) |
Download the same 11-parameter spec sheet as PDF (A4, 4 pages)
Hot-dip galvanized steel grating service life by ISO 9223 environment
The expected lifespan of an HDG coating is governed by zinc consumption rate per ISO 9223 atmospheric corrosion class. The first few years see the fastest zinc consumption; corrosion products then form a self-passivating layer that slows the rate. Use the table to match a coating thickness (we ship 75 to 120 micron, ASTM A123) to your project lifespan target.
| Class | Environment | Zinc loss (µm/yr) | Life @ 85µm | Life @ 120µm |
|---|---|---|---|---|
| C1 | Indoor dry (heated buildings, offices, museums) | <= 0.1 | > 100 years | > 100 years |
| C2 | Indoor damp / outdoor low pollution (rural, agriculture) | 0.1 – 0.7 | > 75 years | > 100 years |
| C3 | Outdoor urban, low salinity coastal, indoor humid | 0.7 – 2.1 | 40 – 75 years | 55 – 100 years |
| C4 | Industrial atmospheres, coastal moderate salinity | 2.1 – 4.2 | 20 – 40 years | 28 – 55 years |
| C5 | Heavy industrial / marine / offshore | 4.2 – 8.4 | 10 – 20 years | 14 – 28 years |
Coating thickness and zinc loss rates align with ISO 9223:2012 (atmospheric corrosion classification), ISO 14713-1 (galvanizing performance) and ASTM A123 / ISO 1461 (HDG coating thickness).
Steel grating load tables (NAAMM MBG 531-09)
Uniform and concentrated load capacities below are calculated per ANSI/NAAMM MBG 531-09 for press-welded steel grating with 30/100 mesh, used as a baseline for span and bar-size selection. Send your span, live load and deflection limit and our engineer returns a project-specific calculation.
| Bearing bar @ pitch | Span (mm) | Uniform load (kN/m²) | Concentrated load (kN/m) | Deflection (mm) |
|---|---|---|---|---|
| 25×3 @ 30/100 | 600 | 12.5 | 5.6 | 3.2 |
| 25×3 @ 30/100 | 900 | 5.6 | 2.5 | 5.0 |
| 32×5 @ 30/100 | 600 | 22.0 | 9.8 | 2.5 |
| 32×5 @ 30/100 | 900 | 9.8 | 4.4 | 4.0 |
| 32×5 @ 30/100 | 1200 | 5.5 | 2.5 | 5.5 |
| 40×5 @ 30/100 | 900 | 13.0 | 5.8 | 3.5 |
| 40×5 @ 30/100 | 1200 | 7.3 | 3.3 | 5.0 |
| 50×5 @ 30/100 | 1200 | 11.4 | 5.1 | 4.0 |
| 50×5 @ 30/100 | 1500 | 7.3 | 3.3 | 5.5 |
| 60×5 @ 30/100 | 1500 | 10.5 | 4.7 | 4.5 |
Calculations follow ANSI/NAAMM MBG 531-09 Metal Bar Grating Manual, BS 4592:1987 Industrial Type Flooring and Stair Treads, and AS 1657-1985 Fixed platforms, walkways, stairways and ladders.
Steel grating export logistics, HS code and Incoterms 2020
Most steel grating buyers ask the same logistics questions before placing an order: HS classification on the commercial invoice, container loading limits, port routing and Incoterms options. The block below is the same logistics summary used on every Anping Hand in Hand quote.
| Item | Value |
|---|---|
| HS Code | 7308.90.95 – Other structures and parts of structures, of iron or steel |
| Container 20'GP capacity | 22 – 25 metric tons of HDG steel grating (about 850 – 1100 m2 in 32×5 specs) |
| Container 40'HQ capacity | 50 – 55 metric tons of HDG steel grating (about 1900 – 2400 m2 in 32×5 specs) |
| Origin port | Tianjin Xingang (250 km from Anping factory) |
| Backup ports | Qingdao (650 km), Shanghai (1100 km) |
| Inland trucking lead time | 8 – 12 hours Anping factory to Tianjin port |
| Sea freight lead time | Tianjin to US West Coast 18-22 days; to Hamburg 32-38 days; to Singapore 8-12 days |
| Documents on request | Commercial invoice, packing list, B/L, mill test certificate, certificate of origin (CCPIT / Form A / Form E) |
| Packaging | Seaworthy: pallet + steel strap + corner protector + bar code; bundle weight balanced for even container floor loading |
Incoterms 2020 supported on every quote
| Code | Rule | How we use it for steel grating |
|---|---|---|
| EXW | Ex Works | Buyer collects from our factory in Anping. Buyer carries all risk and cost from factory gate. |
| FCA | Free Carrier | We deliver to a named carrier in China (e.g. Tianjin terminal). Risk transfers when carrier accepts. |
| FAS | Free Alongside Ship | We place goods alongside vessel at Tianjin Xingang. Suited for break-bulk steel grating cargo. |
| FOB | Free On Board | Most common for our HDG steel grating. We load and clear customs at Tianjin Xingang. Risk transfers once on board. |
| CFR | Cost and Freight | We pay sea freight to destination port; risk still transfers at Tianjin port loading. |
| CIF | Cost, Insurance and Freight | CFR + cargo insurance (ICC(C) minimum, ICC(A) on request). Common for first-time buyers. |
| CPT | Carriage Paid To | For multi-modal (rail + sea + truck), we cover carriage to named destination. |
| CIP | Carriage and Insurance Paid To | CPT + insurance (ICC(A) default since Incoterms 2020). |
| DAP | Delivered at Place | We deliver to a named destination, buyer handles import customs and duties. |
| DPU | Delivered at Place Unloaded | DAP + we unload. New rule replacing DAT in Incoterms 2020. |
| DDP | Delivered Duty Paid | We handle everything including import customs, duties and VAT. Common for small project orders to EU/US distributors. |
HS classification follows HTSUS 7308.90 (US International Trade Commission) and corresponding entries in the EU Combined Nomenclature; Incoterms® 2020 rules are published by the International Chamber of Commerce.
Common procurement questions answered up front
Each of the answers below is written so an engineer or buyer can pull a complete reply on a single procurement question, with the verifiable numbers and standards every project team needs.
What is the standard MOQ for hot-dip galvanized steel grating?
Anping Hand in Hand accepts a minimum order of 50 pieces for stock specs (e.g. 32×5 bearing bar at 30/100 mesh, 1m x 6m panel) and 1 square meter for fully custom orders. Most peer Anping factories require 50 pieces baseline; we lowered the custom MOQ to one square meter so engineers can order trial samples without committing to a full container. Lead time is 7 to 15 days for stock specs.
Which Incoterms do you support for Tianjin port shipments?
We quote and ship under all 11 Incoterms 2020 rules: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAP, DPU and DDP. Most steel grating buyers choose FOB Tianjin (we load and clear customs) or CIF destination port (we add ocean freight and ICC(C) insurance). DDP is available for small EU and US project orders where buyers prefer a one-stop landed price.
Can I get a steel grating spec sheet PDF before requesting a quote?
Yes. Each grating type (press-welded, swage-locked, serrated, composite) has a downloadable PDF spec sheet listing 11 standard parameters: material, bearing bar size, pitch, cross bar size, pitch, bar type, surface treatment, grating standard (ANSI/NAAMM MBG 531-09), galvanizing standard (ASTM A123), package and MOQ. Service-life tables for ISO 9223 environments C1 through C5 are included so engineers can size coating thickness for project lifespan.
What is the HS code for steel grating exports from China?
Steel grating, stair treads and grating panels are classified under HS code 7308.90 (other structures and parts of structures, of iron or steel). Anping Hand in Hand declares 7308.90.95 on every commercial invoice and supplies a CCPIT-stamped certificate of origin plus Form A or Form E (FTA), so your customs broker can clear the shipment without re-classifying.
How much steel grating fits in a shipping container?
A 20-foot general purpose container loads 22 to 25 metric tons of hot-dip galvanized steel grating (about 850 to 1100 square meters in standard 32×5 bearing bar specs). A 40-foot high cube container loads 50 to 55 metric tons (roughly 1900 to 2400 square meters). Inland transport from our Anping factory to Tianjin Xingang port takes 8 to 12 hours.
How long does hot-dip galvanized steel grating last outdoors?
Hot-dip galvanizing performance follows ISO 9223 environment classes. In rural / agriculture (C2) the 85-micron coating lasts over 75 years; in urban (C3) 40 to 75 years; in industrial / coastal (C4) 20 to 40 years; in heavy marine (C5) 10 to 20 years. The first few years see fastest zinc consumption, then corrosion products form a self-passivating layer that slows the rate. ASTM A123 and ISO 1461 govern the coating thickness.
Steel grating applications across industries

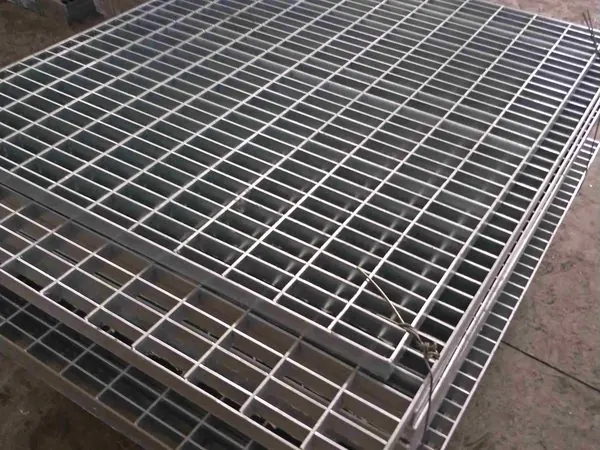

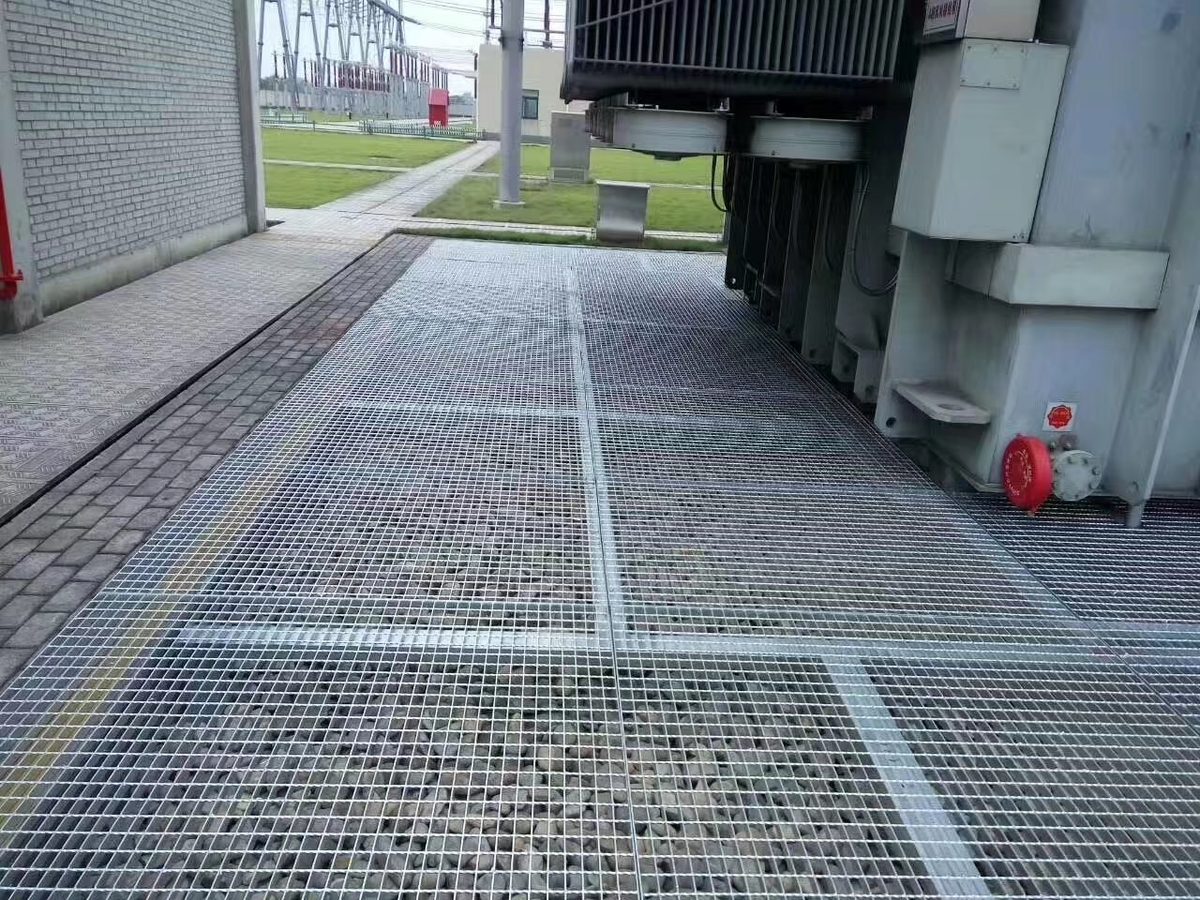

Industrial platforms and walkways
Steel mills, oil and gas plants, power plants, refineries, factories with heavy foot and forklift traffic.

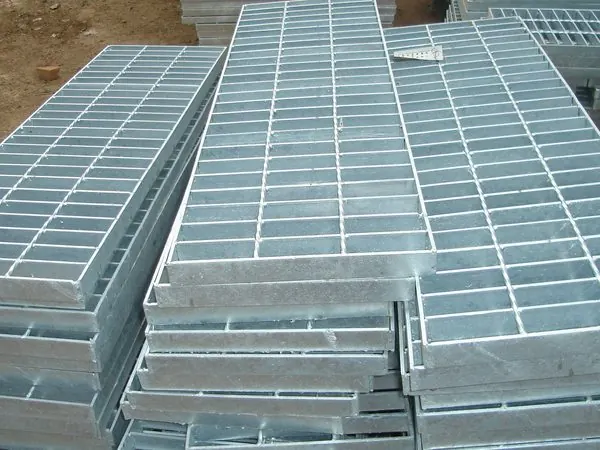

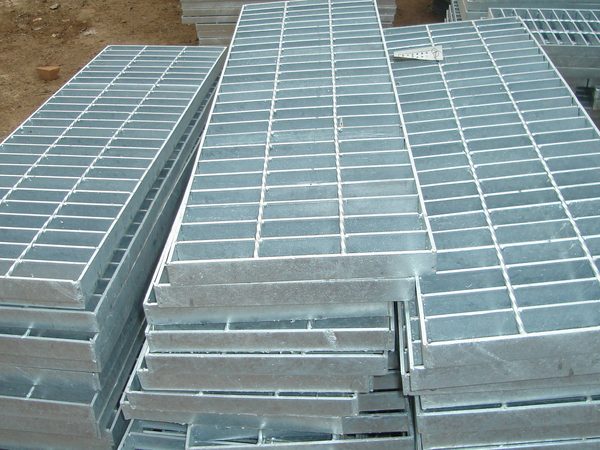

Stair treads
Welded with serrated nosing for anti slip industrial staircases.

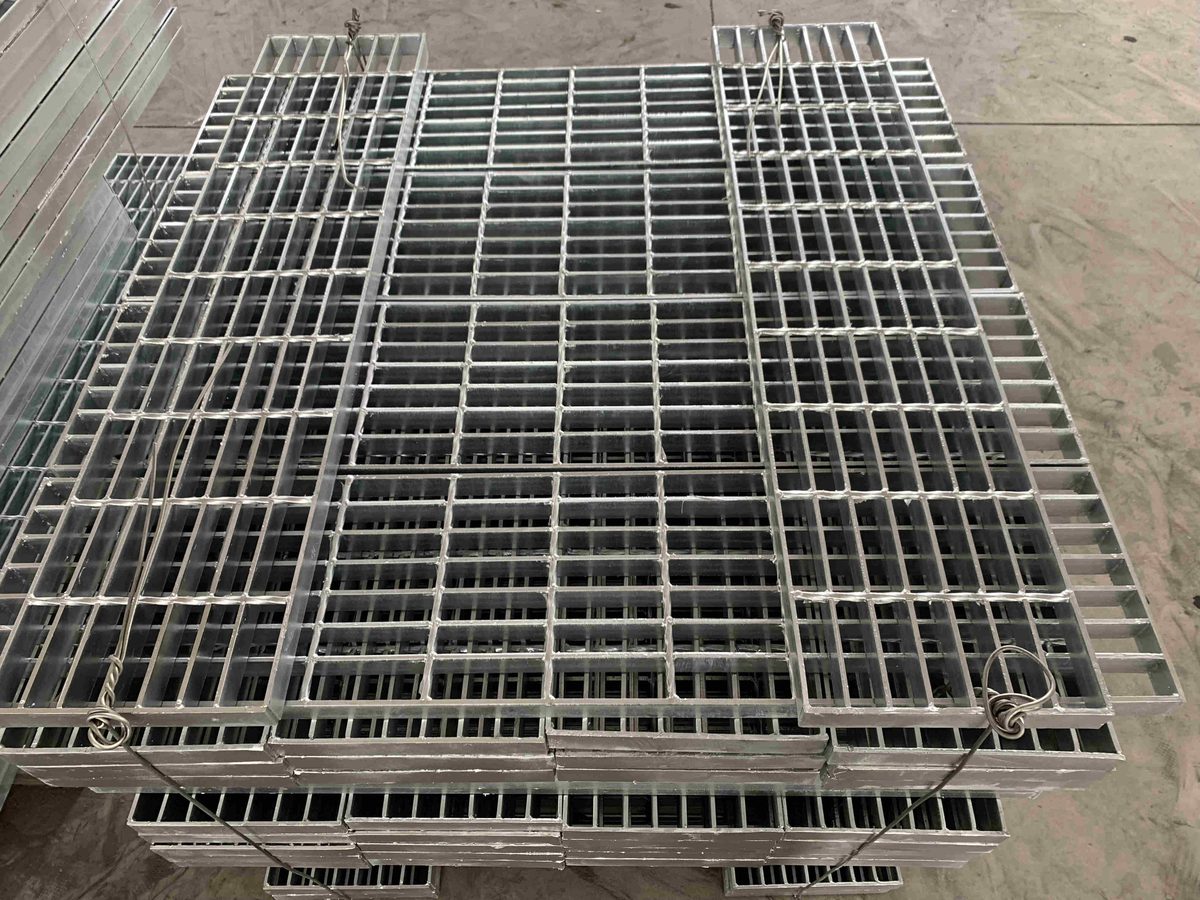

Drainage and trench covers
Storm water trench covers, sewer grates, pavement drainage covers in industrial parks and ports.
Fencing and ventilation
Security fence panels, sound walls, ventilation panels for substations and pump rooms.
Offshore and marine
316 stainless steel grating for offshore platforms and corrosion exposed walkways.
Civil and architectural
Building facade screens, sun shade panels, decorative trench covers.
Engineering scenario references: construction site fence panels and hoarding; farm and aquaculture fencing wire mesh; marine and coastal 316 stainless wire mesh; municipal drainage trench cover grating projects; heavy load steel grating for mining screening platforms; chemical plant walkway and platform grating; factory equipment guard and platform grating.
Why buyers choose Anping Hand in Hand steel grating
- Engineer-on-record. Your RFQ goes straight to He Zhanbing, our application engineer with 5 years on the steel grating line. Reply under one business day, no sales middleman.
- Drawings and BOQ. Send DWG, PDF or photo. He sizes bearing bar, mesh pitch and edge banding for your span and replies with weight per panel.
- Standards alignment. Steel grating produced to ANSI/NAAMM MBG 531 and BS 4592 dimensions, hot dip galvanized to ASTM A123 (75 to 120 micron coating).
- Project packing. Pallet plus steel strap plus corner protectors, bar coded, suited for site lift directly to position.
- Fixing parts. Clip, anchor and saddle clip in 304, 316 or HDG carbon steel supplied with grating to avoid shortage.
- Factory direct pricing. No trading agent markup. Quote based on bar size, pitch, surface and quantity, with bulk tier from 50, 200 and 500 square meters.
- Stock specs ready. Common 32×5, 40×5 and 50×5 bearing bar with 30×100 mesh, HDG, ship within 7 days.
- Private label. OEM stamp on bearing bar end plate or paper sleeve. MOQ 200 square meters for OEM mark.
- Drop shipping. Neutral packing list and your logo on documents support resale in your local market.
- Anping cluster supply chain. Raw bar mills, galvanizing lines and Tianjin port (250 km) sit on a single county-scale supply chain. Lead time stays predictable.
Quality, certification and traceability
Anping Hand in Hand steel grating is produced to the dimensional rules of ANSI/NAAMM MBG 531, BS 4592, AS 1657 and EN 1991-1-1, and hot dip galvanized to ASTM A123 / A153 with 75 to 120 micron mean coating. Heat-number traceable raw material accompanies every shipment with a mill certificate. Buyer site visit, third-party SGS / BV / TUV inspection and pre-shipment QC are unrestricted.
Source factory in Anping cluster
Located in Anping County, Hebei (38.2314 N, 115.6253 E) — the world's largest wire mesh manufacturing cluster, 4000+ producers, 500+ export-licensed factories within 30 km.
Standards-driven production
Steel grating produced to ANSI/NAAMM MBG 531, BS 4592, AS 1657 and EN 1991-1-1 dimensional rules. Hot dip galvanizing aligned with ASTM A123 / A153 (75 to 120 micron).
Mill test reports
Heat number traceable raw material, mill certificate issued per shipment.
Engineer signed RFQ
Every quote signed by He Zhanbing, our application engineer (5 years). Drawings, photos and inspection reports linked to your project file.
Open factory policy
Buyer site visit, third-party inspection (SGS / BV / TUV) and pre-shipment QC are welcome and unrestricted.
Honest export readiness
Direct export team established in 2026. Every shipment is photographed and indexed in our shipment log so engineers and distributors get traceable references over time, not stock photos.
Inside our steel grating production line
Our hot-dip galvanized welded steel grating is manufactured at our Anping County, Hebei factory (USCC 91131125MA7FT3EA0D), galvanized to ASTM A123 / ISO 1461 / AS NZS 4680, with load tables verified against NAAMM MBG 531. Material certificates or inspection documents are available on request according to the RFQ and order requirement.
Manufacturer: Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) →
Steel grating factory tour
A 37-second tour of the Anping Hand in Hand operation: our application engineer on the production floor, an aerial view of bulk hot-dip galvanized stock, and a close-up of EN ISO 1461 bearing-bar coating — English captions throughout.
Compatible equipment and standards systems
Our steel grating is produced to fit the dimensions, hook strip, framing standards, or test profiles published by the following equipment manufacturers and standards bodies. Send us your system or screen model number with your RFQ and we will quote against the corresponding spec.
Brand names are property of their respective owners; listed for product compatibility / standards identification only. Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) is an independent steel grating manufacturer and is not affiliated with these brands or systems.
What you receive with every shipment
Every container we ship arrives with a complete document set so your QA, customs broker, and goods-in team have nothing to chase.
- ✓Mill test certificate (EN 10204 type 3.1) — Heat number, chemical composition, mechanical properties — on request per RFQ
- ✓Dimensional QC measurement record — Bearing bar dimension, cross bar pitch, panel size, banding — measured against your approved drawing
- ✓Packing list with PO traceability — Roll / panel / sheet count, m² per unit, total weight, container loading sequence
- ✓Bill of lading (FOB Tianjin Xingang or Qingdao) — For your customs broker and freight forwarder
- ✓Country of origin certificate — Form A / Form E available for AU / NZ / Korea / RCEP markets
- ✓Sample inspection cert from SGS / BV / TUV / Lloyds — Type 3.2 third-party witness inspection on request, paid by buyer
Want to see a redacted sample document set before you place an order? Message engineer He Zhanbing on WhatsApp and he will email you a desensitized type 3.1 mill cert and SGS test report within one working day.
Export-ready capability for first-time international buyers
We are an Anping County, Hebei manufacturer prepared to handle full international procurement documentation in English — mill cert, packing list, BoL, country-of-origin form, freight forwarder coordination from Tianjin Xingang or Qingdao. Whether this is your first import from China or your fiftieth, our process is the same.
New buyer? Request a 5 m sample roll first; we ship by FedEx / DHL with a redacted EN 10204 type 3.1 mill cert so your QA team can validate before placing a container order.
Quick steel grating procurement reference
Steel grating is an open grid metal product made by welding parallel bearing bars to perpendicular cross bars at fixed pitch. It is used for industrial platforms, walkways, stair treads, drainage trench covers and offshore decking because it carries heavy loads while staying light, lets water and air pass and resists slipping.
The four parameters that drive both price and load capacity on every steel grating quote are bearing bar size, mesh pitch, surface treatment (hot dip galvanized vs stainless) and panel quantity. Send these four values plus the destination port and our engineer replies the same business day.
Anping Hand in Hand is a source steel grating factory in Anping County, Hebei Province (38.2314 N, 115.6253 E). The factory produces press welded carbon steel grating, 304 and 316 stainless steel grating and aluminum grating to ANSI/NAAMM MBG 531 and BS 4592 dimensional rules, hot dip galvanized to ASTM A123. RFQs are answered by He Zhanbing, our application engineer with 5 years on the line.
Frequently asked steel grating questions
Do you supply SS grating and stainless steel floor grating?
Is GI grating the same as your galvanized steel grating?
What information do I need to send for a steel grating quote?
Do you ship steel grating to my country?
What is the difference between press welded and swage locked grating?
Is hot dip galvanized steel grating suitable for outdoor use?
Can you produce custom size and serrated grating?
What payment terms do you accept?
More procurement resources: bulk wholesale galvanized grating quote and sample policy · wire mesh buying guide and procurement checklist · factory direct supply trench cover packing and shipping policy · hot dip galvanized service life introduction and PDF library.
Steel grating cost estimator (FOB / CIF / DDP)
Pick the bearing bar, surface and quantity to see an instant FOB Tianjin estimate range. Numbers are based on public Tianjin port reference prices for Q4 2025 – Q2 2026 and become a binding quote only after the RFQ form is processed by our engineer.
Inside the Anping Hand in Hand factory – steel grating production gallery
Real steel grating production workshop, QC inspection, stockyard, container loading and field-installed photos from the Anping Hand in Hand factory. Buyers welcome to video tour or SGS / BV / TUV inspection before payment. Anping County is the national wire mesh cluster of China – Hand in Hand operates as a registered legal entity (USCC 91131125MA7FT3EA0D).
Why buyers can trust Anping Hand in Hand on this order
Anping County, Hebei Province is the national wire mesh production cluster of China with 4000+ wire mesh enterprises within 30 km. Our workshop, warehouse and shipping yard back every quotation with physical evidence buyers can verify on site, by video call, or via SGS / BV / TUV inspection.
He Zhanbing
Senior Application Engineer | Anping Hand in Hand
5 years on the wire mesh and steel grating production line. Reviews drawings, opening specifications, panel size, finish and packing. Replies within one business day with binding pricing, weight per panel and lead time. Confirms grade selection (304 / 316 / 316L / duplex / 65Mn / Q235) against your application before quotation.
Verified legal entity and buyer-checkable records
Registered name (EN): Anping Hand in Hand Wire Mesh Products Co., Ltd.
Registered name (CN): 安平县手拉手丝网制品有限公司
Unified Social Credit Code (USCC): 91131125MA7FT3EA0D
Registered address: Anping County, Hebei Province, China
Geo coordinates: Lat 38.2314 / Lng 115.6253 (Anping wire mesh cluster)
Buyers may request a legal entity check, on-site visit appointment, video factory tour, or third-party (SGS / BV / TUV) inspection before payment. Quotations and contracts are issued under the registered legal entity above. Mill test certificate (MTC) traceable to wire batch number supplied by default; ASTM B117 salt-spray, ASTM E8 tensile and ISO 9227 reports supplied on request.
Business license (click to view full size)
Standards we work to: ASTM A123 / A153 (hot-dip galvanizing), ASTM A580 / A480 (stainless steel grade), ASTM E8 (tensile), ASTM B117 (salt-spray), ISO 9227 (NSS), ISO 9001 (quality management — in renewal cycle), EN 10204 type 3.1 (mill cert), EN 10088 (stainless), EN 1461 (galvanizing), EN 10218 (steel wire), AS 4687 / EN 12811 (construction fence), AS 1657 (walkway), ISO 13857 (machine guard), NACE MR0175 / ISO 15156 (sour service).
Get a same day steel grating quote
4-step wizard. Pick the buyer track that matches you, send the four key parameters, and our engineer replies within one business day.
Prefer the detailed 4-step guided form?
Steel grating tailored to your project, shipped from Anping
Hot dip galvanized, 304 / 316 stainless or aluminum, custom panel size from 1 square meter, lead time 7 to 25 days, full export documents and CE / ISO compliance.
Factory and product gallery
Real photos of the Anping Hand in Hand steel grating line, captured by drone and on-site cameras between 2023 and 2025. EXIF metadata has been removed for buyer privacy.
Steel grating PDF spec sheets & CAD/DXF templates
Each grating type has its own A4 spec sheet covering the 11 standard parameters, ISO 9223 service-life chart, NAAMM MBG 531 load baseline, applications, export logistics and Incoterms 2020. CAD templates are 1 m x 1 m DXF panels you can drop into your drawing.
Press-Welded
Workhorse for industrial platforms (HDG carbon steel).
Swage-Locked
Aluminum 6061 / stainless 304 / 316 – no welding heat zone.
Serrated Anti-Slip
Required on wet, oily or icy walking surfaces.
Composite Top-Sealed
Checker plate top – dropped object protection.
CAD drawings (DXF) – 1 m x 1 m panel templates
CAD 32×5 @ 30/100 (most common)
Stock spec for industrial platforms. DXF inside ZIP – opens in AutoCAD, SolidWorks, BricsCAD, FreeCAD.
CAD 40×5 @ 40/100 (medium duty)
Walkways with wheel-loader access. DXF inside ZIP – opens in AutoCAD, SolidWorks, BricsCAD, FreeCAD.
CAD 50×5 @ 30/100 (heavy duty)
Forklift-rated platforms. DXF inside ZIP – opens in AutoCAD, SolidWorks, BricsCAD, FreeCAD.
CAD 25×3 @ 30/100 (light duty)
Foot traffic and small-equipment platforms. DXF inside ZIP – opens in AutoCAD, SolidWorks, BricsCAD, FreeCAD.
Engineering reference: see our steel grating load capacity and span selection guide for ANSI/NAAMM MBG 531 load tables, span formulas and a 5-step procurement workflow.
Trade Policy & Compliance for Singapore
Policy score: 85/100 — China-Singapore FTA + RCEP zero tariff on HS 7314 with Chinese certificate of origin. Singapore PDPA aligns with GDPR for B2B forms.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: CSFTA + RCEP 0% with valid CoO
Required Conformity
- EN 10204 type 3.1 MTC
- SGS / BV third-party inspection
- ISO 9001
- Singapore safety mark not required for grating
Data & Trade Law
- Data law: PDPA 2012
- Import license: low
Project applications in Singapore
Jurong Island petrochemical walkway
316L stainless steel grating 32×5 bearing bar, salt-air corrosion resistance for refinery decks. Anping factory 316L pickled-passivated finish matches Singapore petrochem service-life specs.
Tuas Mega Port heavy-duty fence
Hot-dip galvanized welded mesh panel, AS/NZS 4680 class 600 zinc, 25-year service life. Anping factory routinely supplies similar specs FOB Tianjin/Qingdao to Singapore PSA terminals.
MRT depot perimeter mesh
Crimped wire mesh + steel grating walkway for Land Transport Authority depot tenders. Standard finish hot-dip galv ASTM A123 / ISO 1461 65-86 micrometre.
FAQ — Singapore buyers
Does Anping Hand in Hand have CSFTA Certificate of Origin for steel mesh exports to Singapore?
Yes. Form CSFTA and Form E (RCEP) issued by China CCPIT for all shipments to Singapore. Both qualify for 0% preferential tariff on HS 7314 / 7308.30.
What is the typical transit time and FOB port from Anping to Singapore?
Container loaded at Tianjin Xingang or Qingdao port. Standard transit Tianjin to PSA Singapore 14-18 days, Qingdao to PSA 11-15 days. EXW Anping County to Tianjin port ground transit 2 days.
Can the factory supply mill test certificate to Singapore standard?
Yes. Material certificates or inspection documents are available on request according to the RFQ and order requirement. Singapore PSB or PUB tenders requiring third-party witness inspection can be arranged with SGS or BV at the Anping factory before payment.
Is there any import duty or PDPA registration required for industrial wire mesh in Singapore?
No import duty under CSFTA / RCEP 0%. GST 9% applies at import (recoverable for B2B). PDPA does not require registration for B2B procurement forms.
Does Anping factory have prior Singapore export experience?
Yes. Wire mesh and steel grating shipments to Singapore PSA-terminating ports occur regularly under CSFTA preferential origin. Reference shipping records and container loading photos available upon RFQ.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 11-18 days to PSA Singapore
- Container capacity: 20 GP holds about 12-14 tons of 25×3 grating; 40 HQ about 20-22 tons
- Packing: Steel pallet with steel strapping for 6 m panels; wooden crate (ISPM 15 treated) for short pieces
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Singapore import documentation.
Trade Policy & Compliance for New Zealand
Policy score: 82/100 — NZ-China FTA upgraded 2022 maintains 0% tariff on HS 7314. AS/NZS standards shared with Australia simplify compliance.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: NZ-China FTA + RCEP 0% HS 7314 with CoO
Required Conformity
- EN 10204 type 3.1 MTC
- AS/NZS 4680 hot-dip galvanizing certificate
- ISO 9001
- SGS / BV third-party inspection
Data & Trade Law
- Data law: Privacy Act 2020
- Import license: low
Project applications in New Zealand
Auckland Watercare combined-sewer trench cover
AS 3996 class B steel grating with locking bar, cast-in concrete frame. Anping factory 30×5 bearing bar at 30 mm pitch matches Watercare BCS-W14 spec.
Christchurch transport corridor mesh barrier
Welded mesh panel + hot-dip galv AS 4680 class 600 zinc for state highway separation, 25-year coastal-rural service. Anping factory routine spec, FOB Tianjin to Auckland 20-24 days.
Otago dairy farm fencing and mesh
Crimped wire mesh + welded gates for large pastoral operations, AS/NZS 4671 reinforcement-grade wire compatible. Standard hot-dip galv finish or 304 stainless.
FAQ — New Zealand buyers
Does Anping Hand in Hand qualify for NZ-China FTA Form NZ-China?
Yes. China CCPIT issues NZ-China FTA Certificate of Origin upon request. 0% preferential tariff on HS 7314 / 7308.30 when CoO accompanies shipment.
What galvanizing class is required for New Zealand outdoor service?
AS 4680 class 600 (610 g/m2 minimum, about 85 micrometre) is the NZ industry standard for outdoor 25-year service. Coastal applications within 5 km of coast often spec class 710 or upgrade to 316L stainless.
Can the Anping factory supply AS 3996 class A/B/C/D trench cover gratings?
Yes. Standard class B (heel-safe, light vehicle) and class D (heavy duty) trench covers with locking bar, banding and lifting lugs are manufactured to AS 3996. EN 124 D400 equivalent for utility road service available on order.
Are there any biosecurity packaging rules for shipments to New Zealand?
Yes. MPI requires ISPM 15 heat-treated timber for all wooden packaging. Anping factory uses certified ISPM 15 treated pine crates for all NZ-bound shipments, with stamped IPPC mark.
Does Anping factory have prior New Zealand export experience?
Yes. Steel grating and welded mesh shipments to Auckland, Tauranga and Lyttelton ports occur regularly. Reference shipping records and AS 4680 batch galvanizing certificates available.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 20-26 days to Auckland / Tauranga / Lyttelton
- Container capacity: 20 GP about 12-14 tons of 25×3
- Packing: ISPM 15 treated wood crates mandatory for MPI biosecurity
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support New Zealand import documentation.
Trade Policy & Compliance for United Arab Emirates
Policy score: 82/100 — GCC 5% common external tariff on HS 7314. Jebel Ali Free Zone 0% duty for re-export to GCC. ESMA conformity required; UAE.S 5006 marking mandatory.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 5%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: GCC 5% common tariff + Jebel Ali FZ 0% for re-export
Required Conformity
- EN 10204 type 3.1 MTC
- ESMA conformity certificate
- UAE.S 5006 marking
- ADQCC for Abu Dhabi tenders
- ISO 9001
Data & Trade Law
- Data law: PDPL 2022
- Import license: med (ESMA)
Project applications in United Arab Emirates
Dubai Metro station perimeter fence
Hot-dip galvanized welded mesh panel, 50×100 mesh opening, 4 mm wire. Anping factory routine spec FOB Qingdao to Jebel Ali 19-22 days.
Jebel Ali port apron heavy-duty trench cover
Steel grating EN 124 D400 with locking bar. 316L upgrade option for marine-spray zones. Anping factory 40×5 bearing bar + welded banding.
Etihad Rail siding stainless mesh panel
316L stainless steel mesh for desert sand control and ballast retention. NACE MR0175 compatible chemistry available for sour-service segments.
FAQ — United Arab Emirates buyers
Does Anping factory have ESMA conformity certificate for steel grating in UAE?
Yes. ESMA registration via authorized agent for HS 7314 grating. UAE.S 5006 marking applied at factory pre-shipment. Documentation issued per consignment to satisfy customs clearance at Jebel Ali and Khalifa Port.
Can I re-export Chinese steel grating from Jebel Ali Free Zone to Saudi Arabia or Oman?
Yes. Jebel Ali Free Zone operates 0% duty entry. Re-export to GCC member states (Saudi, Oman, Bahrain, Kuwait) crosses the GCC common customs union at 5% common external tariff with simplified clearance.
What stainless grade is recommended for UAE coastal infrastructure?
316L (PREN 24-27) for general coastal humidity and salt spray. For continuous immersion in seawater or splash zone (seawater intake at desal plants), duplex 2205 (PREN 34-38) or super duplex 2507 is recommended. Anping factory stocks all four grades.
Does Anping factory support Abu Dhabi ADQCC tender prequalification?
Yes. ADQCC vendor application supported via authorized local representative. Required documents include EN 10204 3.1 MTC, ISO 9001, SGS verification report and trade license translation.
What is the typical transit time FOB Tianjin or Qingdao to Jebel Ali?
19-24 days end to end. EXW Anping County to Qingdao ground transit 2 days. Qingdao to Jebel Ali sea transit 17-22 days. Container loading photos sent before B/L.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 19-24 days to Jebel Ali
- Container capacity: 20 GP 12-14 tons; 40 HQ 20-22 tons
- Packing: Steel pallet with steel strapping; salt-air desiccant for stainless
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support United Arab Emirates import documentation.
Trade Policy & Compliance for Australia
Policy score: 80/100 — ChAFTA 0-5% preferential on HS 7314 with Chinese Certificate of Origin. No active AD on Chinese steel grating. AS/NZS standards align directly with Anping factory hot-dip galv capability.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 5%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 15%
- FTA: ChAFTA 0-5% preferential under CoO
Required Conformity
- EN 10204 type 3.1 MTC
- AS/NZS 4680 hot-dip galvanizing certificate
- JAS-ANZ scheme third-party inspection
- ISO 9001
Data & Trade Law
- Data law: Privacy Act 1988
- Import license: low
Project applications in Australia
WA Pilbara iron-ore mine catwalk
40×5 hot-dip galv AS 4680 class 610, abrasion-resistant. Anping factory supplies similar specs FOB Tianjin to Fremantle 22-26 days. AS 1554.1 welding certificate issued.
QLD coal port walkway and ladder
316L stainless steel mesh for chloride-spray service near port apron. Common spec 30×5 bar at 30 mm pitch with welded edge banding.
VIC municipal trench cover
AS 3996 class B steel grating with locking bar, cast-in concrete. Anping factory routinely produces AS 3996 class B and class D for Australian state government tenders.
FAQ — Australia buyers
Does Anping Hand in Hand have ChAFTA Certificate of Origin for steel grating exports to Australia?
Yes. Form ChAFTA CoO issued by China CCPIT for HS 7314 / 7308.30 to qualify for ChAFTA 0-5% preferential tariff. Without CoO the MFN tariff 5% applies.
What is the difference between AS 4680 class 600, 610, 710 zinc coatings?
AS 4680 class 600 is 600 g/m2 minimum (about 85 micrometre). Class 610 is 610 g/m2 (about 87 micrometre). Class 710 is 710 g/m2 (about 100 micrometre). Class 600 is standard outdoor; class 710 is recommended for coastal C5-M atmosphere within 5 km of ocean.
Can the Anping factory supply AS 3996 trench cover classes B and D?
Yes. AS 3996 class B (heel-safe, light vehicle, 250 kN test load) and class D (heavy duty industrial, 400 kN) are standard product lines at the Anping factory. Locking bar, lifting lugs and continuous welded edge banding are standard.
Are there AQIS biosecurity rules for packaging into Australia?
Yes. AQIS requires ISPM 15 heat-treated and certified timber for all wooden packaging. Anping factory uses certified ISPM 15 pine crates with stamped IPPC mark, plus container fumigation if specified.
Does Anping factory have experience supplying Western Australia mining tenders?
Yes. Steel grating, welded mesh and crimped wire mesh shipments to Fremantle, Brisbane and Sydney occur regularly. JAS-ANZ third-party inspection at the Anping factory before B/L is available on request for major tenders.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 20-26 days to Fremantle / Brisbane / Sydney
- Container capacity: 20 GP about 12-14 tons of 25×3
- Packing: ISPM 15 treated wood crates for AQIS biosecurity
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Australia import documentation.
Trade Policy & Compliance for Chile
Policy score: 80/100 — China-Chile FTA in force 2006, expanded 2019. 0% tariff on HS 7314 / 7308.30 with Chinese CoO Form F. No AD on Chinese steel grating. Copper mining sector dominates demand.
Import Tariffs (HS 7314 / 7308.30)
- Base MFN tariff: 0%
- Section 301 / Special: 0%
- AD/CVD on Chinese welded mesh: 0%
- FTA: China-Chile FTA HS 7314 0% with CoO
Required Conformity
- EN 10204 type 3.1 MTC
- ISO 9001
- SGS Chile verification
- NCh standards alignment (mirrors ASTM)
Data & Trade Law
- Data law: Law 19628 (data protection)
- Import license: low
Project applications in Chile
Escondida copper mine catwalk
40×5 hot-dip galv ASTM A123 steel grating. BHP Escondida operations standard spec; Anping factory routinely supplies 40×5 with welded banding, lifting lugs and bilingual Spanish-English MTC.
Codelco Chuquicamata mining perimeter
Chain-link plus welded mesh fence with hot-dip galv class 600 zinc, 25-year service life in high-altitude UV-intense Atacama climate. NCh 218 reinforcement-grade wire compatible.
Antofagasta port-area trench cover
EN 124 D400 steel grating with locking bar for heavy truck movement near copper concentrate loading dock. 316L upgrade option for chloride-prone splash zones.
FAQ — Chile buyers
Does Anping Hand in Hand qualify for China-Chile FTA Form F Certificate of Origin?
Yes. Form F CoO issued by China CCPIT confirms Chinese origin and qualifies for 0% preferential tariff on HS 7314 / 7308.30 under the China-Chile FTA expansion 2019.
What is the typical transit time and FOB port from Anping to Chile?
FOB Tianjin or Qingdao to Valparaiso, San Antonio or Mejillones (Antofagasta region) typically 35-42 days via Panama Canal. EXW Anping County to port ground transit 2 days. Spanish-language container manifest provided on request.
Are mill test certificates accepted by Chilean copper mining tenders (Codelco / BHP / Antofagasta Minerals)?
Yes. Material certificates or inspection documents are available on request according to the RFQ and order requirement. Major mining houses accept English MTC; some prefer bilingual EN/ES, available on request.
Does the Anping factory align with Chilean NCh standards?
Yes. NCh 218 (steel reinforcement wire), NCh 1180 (grating) and NCh 432 (load codes) are aligned with ASTM A1011, ANSI MBG 531 and ASCE 7 series. Anping factory production is dual-certified to ASTM and NCh-acceptable specs.
Does Anping factory have prior experience supplying Chilean copper mining sector?
Yes. Steel grating, welded mesh and chain-link fence shipments to Valparaiso, San Antonio and Mejillones occur for both prime contractors and EPCM contractors (Bechtel, Fluor, etc.) supplying BHP, Codelco and Antofagasta Minerals operations.
Logistic Brief
- FOB ports: Tianjin / Qingdao
- Sea transit: 35-42 days to Valparaiso / San Antonio / Mejillones via Panama
- Container capacity: 20 GP 12-14 tons; long-haul fumigation required
- Packing: ISPM 15 treated wood crates; salt-air desiccant; bilingual ES/EN container manifest on request
Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) can provide material certificates or inspection documents on request per RFQ to support Chile import documentation.
Specification sheets and RFQ checklists
Use the Download Center to prepare the correct product-specific parameters, quantity, packing and destination before manual quotation. Wire mesh uses wire diameter and opening; steel grating uses bearing bar and span direction; perforated metal uses sheet thickness, hole size and pitch; temporary fence uses panel size, frame tube, base and clamp.
