Stainless Steel Welded Mesh Supplier

304 & 316 Stainless Steel Welded Mesh | Anping Hand in Hand Wire Mesh

Stainless steel welded mesh is used for construction reinforcement, industrial protection, filtration and corrosion-resistant fencing. Anping Hand in Hand Wire Mesh supplies 304 and 316 stainless steel welded mesh with custom wire diameter, mesh opening, roll size and panel size for project buyers.

Product Overview

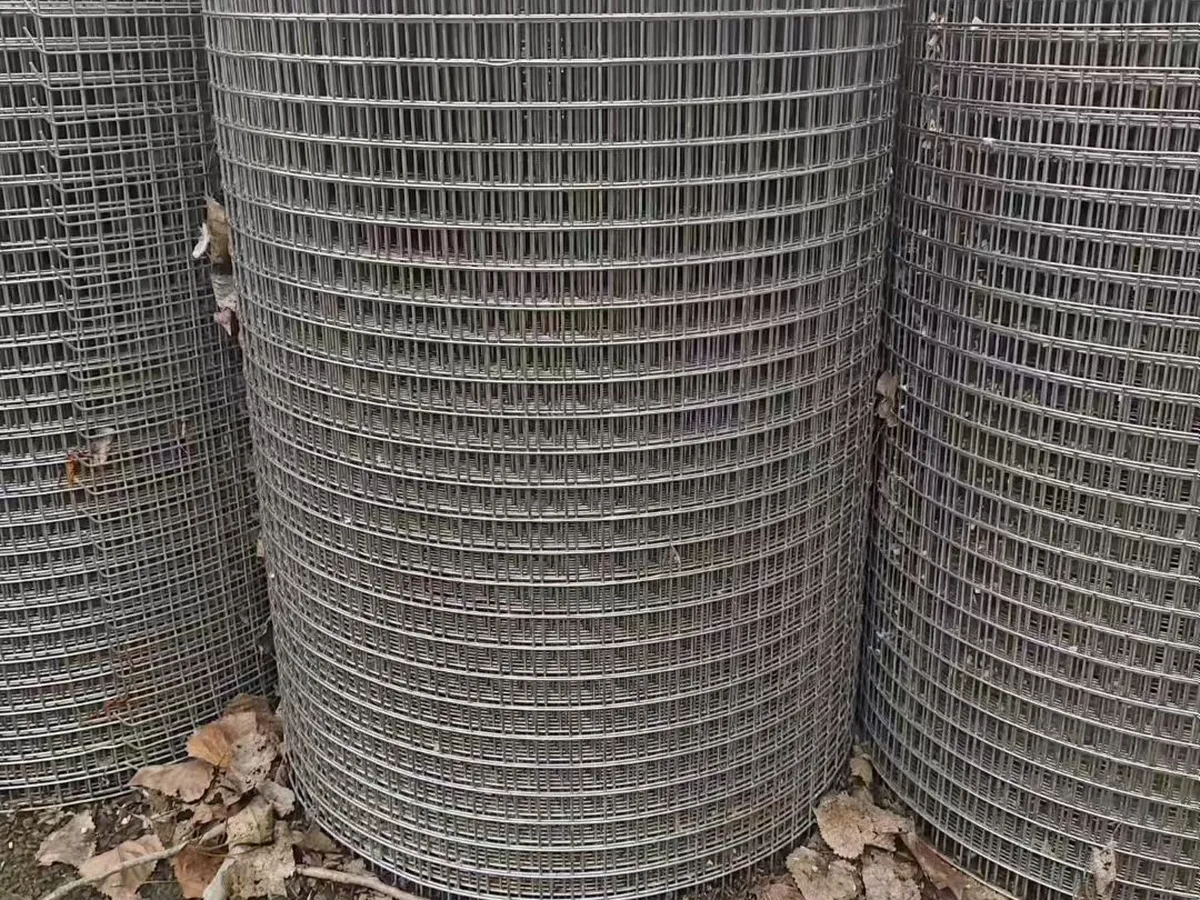

304 and 316 stainless steel welded mesh consists of longitudinal and transverse wires resistance-welded at every intersection, forming a rigid square or rectangular grid. Unlike woven wire cloth, welded mesh keeps its opening shape under load, making it the preferred choice for structural reinforcement and heavy-duty screening.

Anping Hand in Hand Wire Mesh Products Co., Ltd (USCC: 91131125MA7FT3EA0D) manufactures welded mesh on automated production lines in Anping County, China — the historic wire mesh hub with over 600 years of industry heritage. Our factory covers 3,000㎡ with a monthly capacity of 50,000㎡ for welded mesh products.

Technical Specifications

Parameter	Range	Common Construction Grades	Common Industrial Grades
Material	304, 316, 316L	304	316 / 316L
Wire Diameter	0.5 – 6.0 mm	2.0 – 4.0 mm	1.5 – 3.0 mm
Opening Size	12.7×12.7 – 100×100 mm	50×50, 75×75 mm	12.7×12.7, 25×25 mm
Panel Size	1.0×2.0 – 2.4×6.0 m	2.0×3.0 m	1.2×2.4 m
Roll Size	1.0×20 – 2.0×30 m	N/A (panels only)	Available on request
Tensile Strength	500–750 N/mm² (304)	≥550 N/mm²	≥500 N/mm²
Applicable Standard	ASTM A580 / ISO 9044	ASTM A185	ASTM A580
Surface Finish	Mill finish, pickled, electropolished	Mill finish	Pickled

Applications

1. Concrete Reinforcement & Construction

[IMG: construction-site-welded-mesh-concrete]

Stainless steel welded mesh sheets are embedded in concrete slabs, walls, and foundations to control thermal cracking and improve structural integrity. Unlike galvanized mesh, 304 stainless welded mesh will not rust inside the concrete, making it ideal for:

Commercial building foundations
Bridge deck reinforcement
Tunnel lining and shotcrete support
Precast concrete products

Common spec: 304, 4.0mm wire, 75×75mm opening, 2.0×3.0m panels.

2. Industrial Filtration & Chemical Processing

[IMG: industrial-filtration-welded-mesh]

316 and 316L welded mesh is widely used as support screens, filter discs, and retention grids in:

Petrochemical filter housings
Water treatment aeration platforms
Food processing conveyor supports
Pharmaceutical clean room partitions

Common spec: 316L, 1.5mm wire, 12.7×12.7mm opening, custom cut-to-size panels.

3. Safety & Machine Protection

[IMG: safety-barrier-welded-mesh]

Heavy-duty welded mesh forms machine guarding, mezzanine railings, and perimeter barriers in:

Warehouse safety cages
Factory floor equipment enclosures
Loading dock security gates

Common spec: 304, 5.0mm wire, 50×50mm opening, 2.0×2.5m panels.

Manufacturing Process

1. Wire drawing – Stainless steel rod is drawn to specified wire diameter (tolerance ±0.03mm)

2. Straightening & cutting – Wire is straightened and cut to precise length

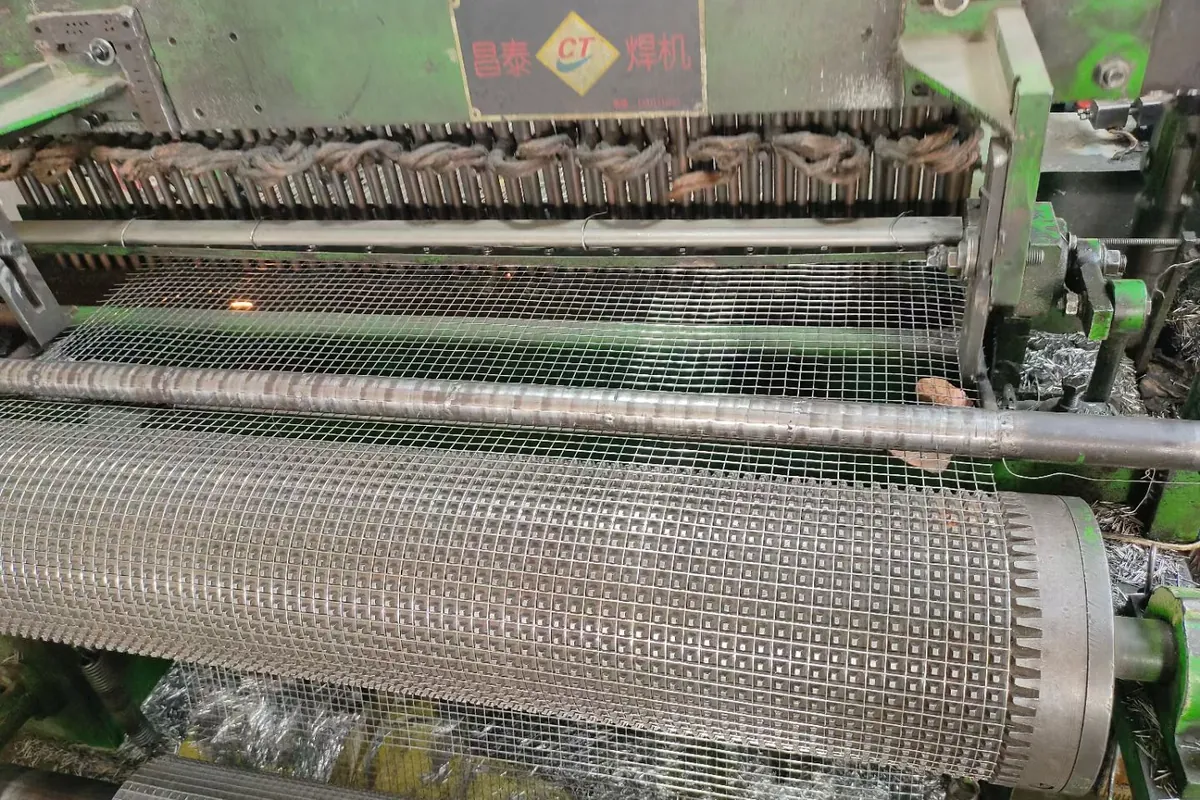

3. Resistance welding – All intersections are welded simultaneously under controlled pressure and current

4. Inspection – Each panel is checked: weld shear strength, opening tolerance (within ±1.5mm), flatness

5. Edge preparation – Panel edges are deburred and squared (optional: welded edge frame for extra rigidity)

6. Packaging – Panels are banded with edge protectors, wrapped in moisture-proof paper, loaded on plywood pallets

Why Choose Anping Hand in Hand?

Factor	What We Offer
Factory Direct	No middleman markups – you buy from the actual manufacturer
Custom Orders	Any wire diameter, opening, panel size, material grade
Quality Control	100% dimensional inspection before packing; weld shear test per batch
Lead Time	2,000㎡ in stock → ships in 3 days; custom orders → 10-15 days
Volume Capacity	Up to 50,000㎡ per month
Experience	Founded by He Tao, built on Anping’s 600-year wire mesh heritage

FAQ

Q: What is the difference between 304 and 316 stainless steel welded mesh?

304 offers excellent corrosion resistance for general construction and indoor industrial use. 316 contains molybdenum, providing superior resistance to chlorides and acidic environments — essential for chemical plants, coastal areas, and food processing.

Q: Can you cut welded mesh to my exact dimensions?

Yes. We custom-shear panels to any size up to 2.4×6.0m. Provide your required width, length, and wire diameter for a precise quotation.

Q: What is the minimum order quantity?

For stock sizes: 50㎡. For custom specifications: 200㎡. We welcome smaller trial orders for new clients.

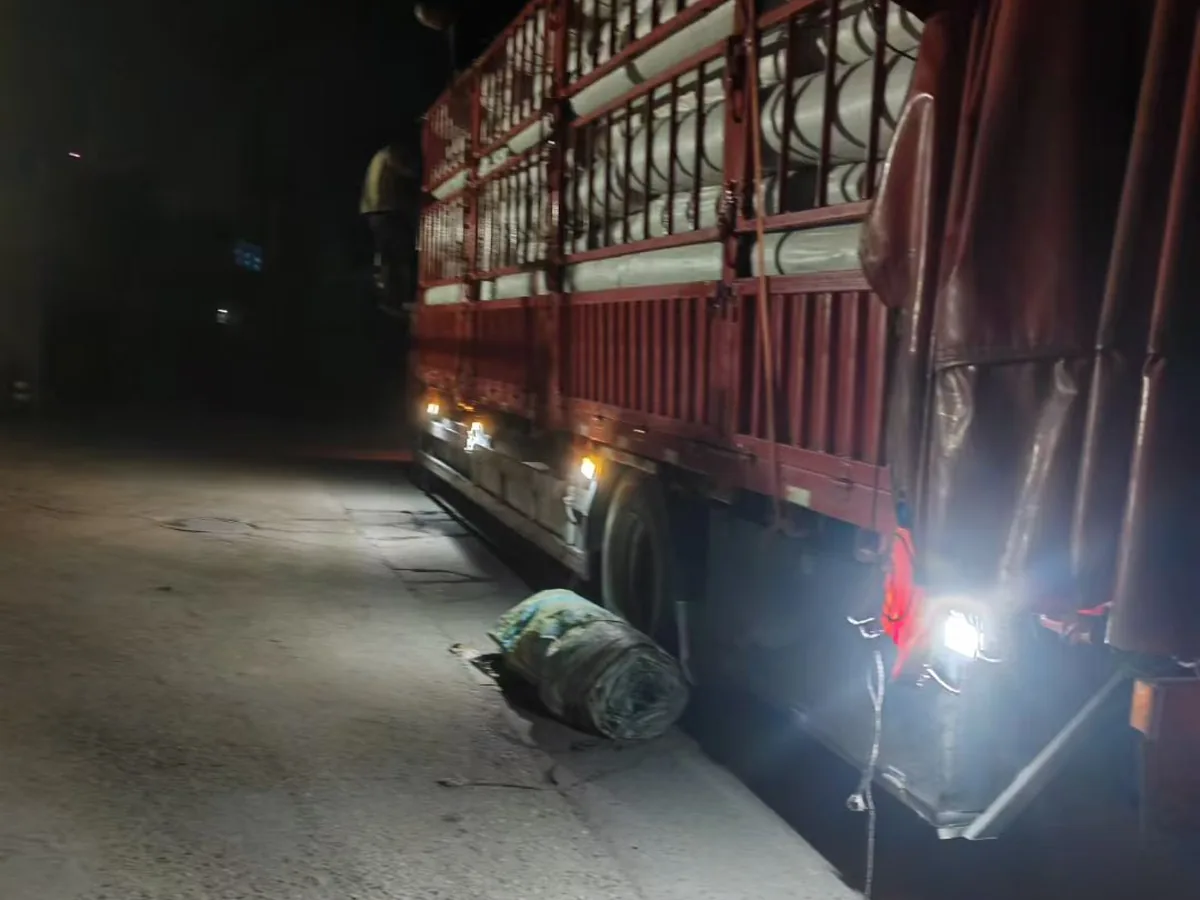

Q: How is the mesh packed for export?

Standard export packing: plywood pallet + steel bands + edge protectors + moisture-proof wrapping. Fumigation-free pallets available. Can be mixed with other products in one container.

Q: Do you provide material certification?

Yes. A mill test certificate per ASTM A580 is provided with every batch. Third-party inspection (SGS/BV) is available at buyer’s cost.

Related Wire Mesh Products

View all wire mesh products from Anping Hand in Hand Wire Mesh.

For custom cut panel applications, you can also view our stainless steel wire mesh panels.For heavier screening or enclosure use, see our crimped wire mesh.

Contact us with your material, wire diameter, mesh opening, size, quantity, application and destination country for quotation.

Get Your Custom Quote

[IMG: factory-welded-mesh-production]

Send us your specifications for a factory-direct quotation within 12 hours:

Required information:

1. Wire diameter (mm)

2. Opening / mesh size (mm)

3. Panel or roll dimensions (W × L)

4. Material grade (304 / 316 / 316L)

5. Quantity (m² or number of panels)

6. Application (construction / filtration / safety)
