Crimped Wire Mesh for Mining and Powder Screening
Anping Hand in Hand factory direct crimped wire mesh: pre-crimped woven screen in 304 / 316 stainless and 65Mn manganese steel for mining screening, aggregate sorting, grain cleaning and industrial filtration. Crimped wire mesh produced according to confirmed RFQ material, wire diameter, opening size and roll/panel dimensions.
Get my crimped mesh quoteSend a detailed RFQ
- Source factory in Anping wire mesh cluster, not a trading agent
- Anping County hosts 4000+ wire mesh enterprises and 500+ export-licensed factories
- Pre-crimped woven mesh in 304 / 316 stainless and 65Mn manganese steel
- Wire diameter 1.0 to 8.0 mm, opening 0.5 to 100 mm, roll width up to 2000 mm
- Double-crimp, lock-crimp and flat-top weave for stable opening under heavy load
- Cut-to-size panels with finished or hooked edges for vibrating screens
- RFQ replied by a named engineer under one business day, factory visit welcome
Looking for a specific build? See our heavy load manganese mining screen mesh for vibrating screens or corrosion resistant stainless welded mesh for filtration. Need a different mesh family? Browse our stainless steel welded mesh for filtration and architectural use, perforated metal sheet for facade and acoustic panels, hot dip galvanized steel grating for platforms and trench covers, stainless steel mesh panels for cladding and balustrade.
What is crimped wire mesh
Crimped wire mesh is a woven screen made from wires that are crimped (corrugated) before weaving, which locks the intersections and keeps the opening size stable under vibrating screen load. Anping Hand in Hand weaves crimped mesh in 304 and 316 stainless steel, 65Mn manganese steel and galvanized high-carbon steel for mining screening, aggregate sorting, grain cleaning, industrial filtration and decorative architectural panels.
Wire diameter runs 1.0 to 8.0 mm with openings from 0.5 to 100 mm and roll width up to 2000 mm, woven as double crimp, lock crimp or flat-top crimp. Mesh is supplied in rolls or cut into rectangular panels with plain, folded or hooked edges so it mounts and tensions directly on your screen deck.
Crimped wire mesh specifications and types
| Parameter | Range / standard value |
|---|---|
| Material | 304 / 316 / 316L stainless steel, 65Mn manganese steel, galvanized / high carbon steel |
| Wire diameter | 1.0 to 8.0 mm (custom on request) |
| Opening (aperture) | 0.5 to 100 mm square or rectangular |
| Weave / crimp type | Double crimp, lock crimp, flat top crimp, intermediate crimp |
| Roll width | up to 2000 mm |
| Panel size | cut-to-size rectangular panels with finished or hooked edges |
| Edge / hook | plain, folded or hooked edge for vibrating screen tensioning |
| Surface | mill finish stainless, bright, or galvanized; manganese steel as-rolled |
| Tolerance | wire +/- 0.05 mm, opening per ISO 4783 / industry weave tables |
| MOQ / lead time | MOQ and lead time confirmed after RFQ review |
Every crimped wire mesh quote is built around five values that drive both price and screening performance: material grade, wire diameter, opening size, weave type and quantity. Send these plus your destination port and we reply with a same day quote.
Crimped wire mesh types we produce

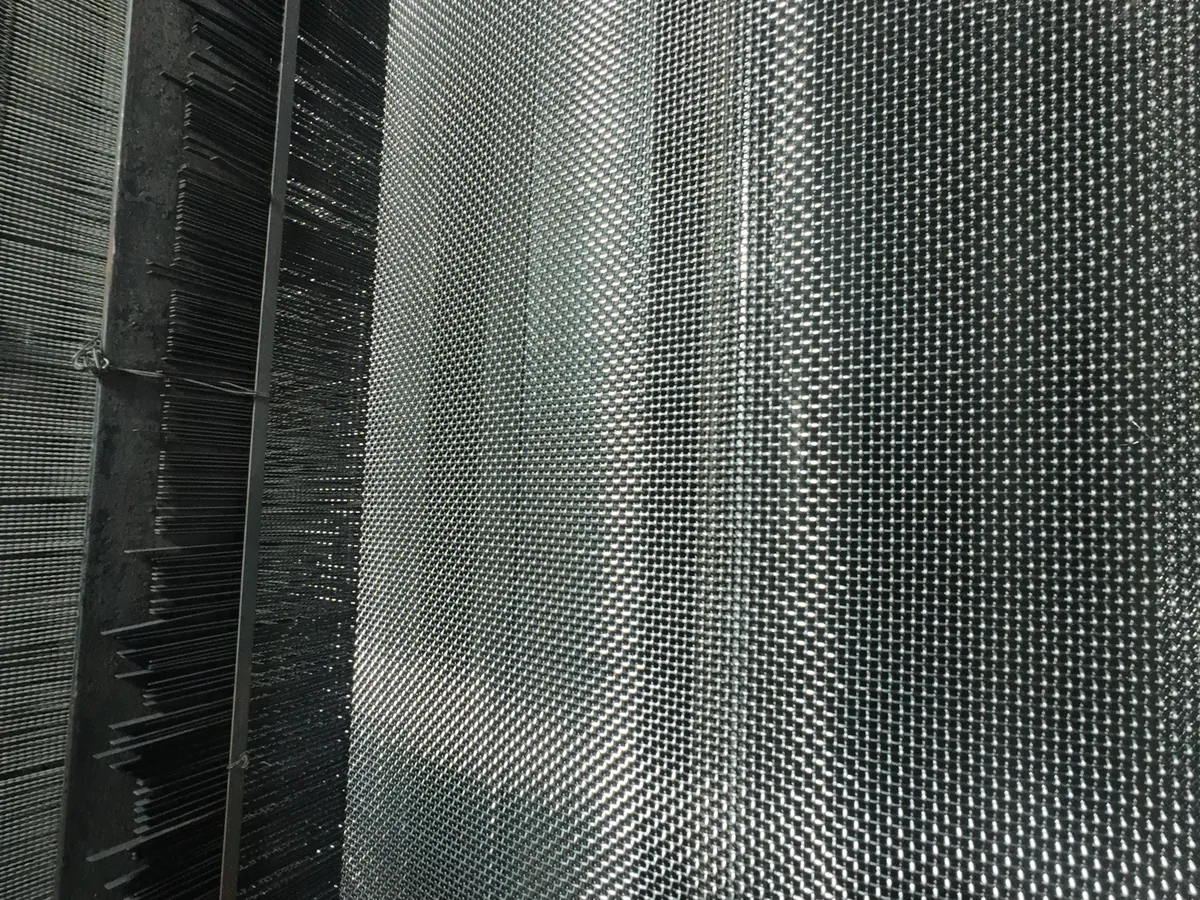

- Stainless steel crimped mesh. Pre-crimped 304 / 316 woven screen for corrosion-resistant screening, filtration and architectural use. Stable opening, long service life in chemical and coastal environments.

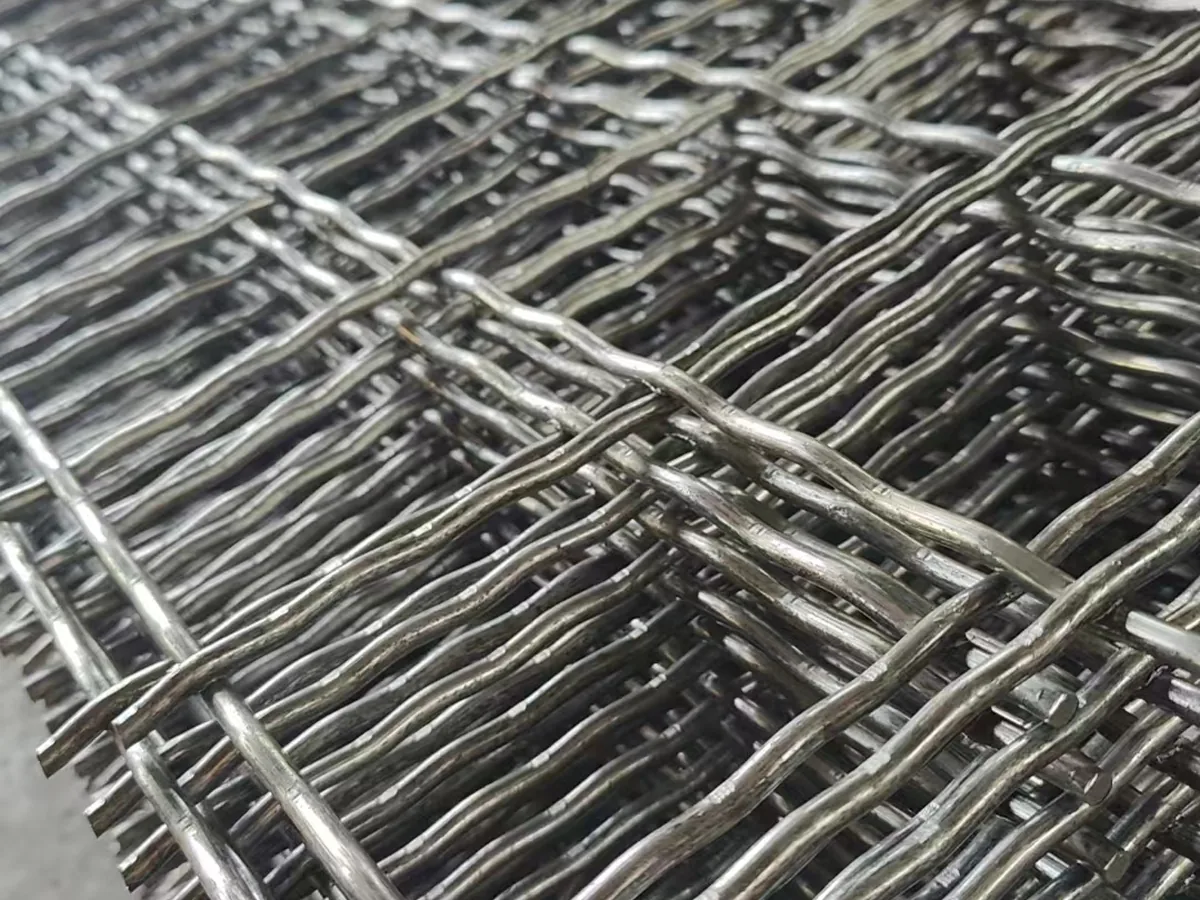

- 65Mn manganese steel mining screen. High-manganese (65Mn) crimped screen built for abrasion resistance on vibrating screens in mining, quarry and aggregate sorting. Hooked edges for tensioning.
- Double / lock crimp mesh. Double-crimp and lock-crimp weaves lock the wire intersections so the opening stays stable under heavy, vibrating load. Preferred for heavy screening duty.
- Decorative crimped mesh. Architectural crimped mesh in stainless or coated wire for partitions, infill panels, facades and ceilings where a uniform woven pattern is wanted.
For custom fabrication and finishes, see our crimped wire mesh opening size selection guide and custom opening size and cut-to-size weaving service.
Full crimped wire mesh specification table (10 standard parameters)
This table is the procurement-ready format used on our quotes. Engineers can copy any line into an RFQ; values cover the stainless screening line plus the 65Mn manganese mining and decorative variants.
| Parameter | Range / standard value |
|---|---|
| Material | 304 / 316 / 316L stainless; 65Mn manganese steel; galvanized / high-carbon steel |
| Wire diameter | 1.0 to 8.0 mm (per weave table) |
| Opening / aperture | 0.5 to 100 mm, square or rectangular |
| Crimp / weave type | Double crimp / lock crimp / flat-top crimp / intermediate crimp / plain crimp |
| Roll width | up to 2000 mm |
| Panel length | cut to size per drawing |
| Edge finish | Plain / folded / hooked edge for screen tensioning |
| Surface | Mill / bright stainless, galvanized, or as-rolled manganese |
| Standards | ISO 4783 (industrial woven wire screen), GB/T 5330 weave reference |
| MOQ / lead time | MOQ and lead time confirmed after RFQ review |
Crimped mesh material selection and service life
Service life depends on whether the duty is corrosion-driven or wear-driven. Stainless 316 and 304 resist corrosion for decades in chemical, coastal and filtration use; galvanized high-carbon suits dry screening; 65Mn manganese steel is wear-rated for abrasive mining and aggregate screening, where life is measured in tonnage screened rather than years. Use the table to match a material to your duty.
| Material | Best duty | Corrosion / wear rating | Typical life | Heavy-section life |
|---|---|---|---|---|
| Stainless 316 | Coastal / chemical / marine screening and filtration | Highest | Decades | Decades |
| Stainless 304 | General corrosion, food, indoor / outdoor screening | High | 15 – 30 years | 20 – 40 years |
| Galvanized HC | General dry screening, low-corrosion duty | Medium | 5 – 12 years | 8 – 15 years |
| 65Mn manganese | Abrasive mining / aggregate (wear, not corrosion driven) | Wear-rated | By tonnage | By tonnage |
Stainless corrosion behaviour aligns with ISO 9223 atmospheric classes; manganese wear life is application-specific and confirmed per RFQ.
Crimped mesh weave selection by screening duty
The right weave depends on screening duty. Fine stainless double-crimp for grain and filtration; medium lock-crimp for aggregate and sand; heavy 65Mn double-crimp with hooked edges for mining ore sizing; extra-heavy lock-crimp for primary crusher decks. Send your material, throughput and deck size and our engineer specifies wire diameter, opening and weave.
| Screen class | Wire dia | Opening | Material / weave | Typical duty |
|---|---|---|---|---|
| Fine screen | 1.0 – 2.0 mm | 0.5 – 5 mm | Stainless double crimp | grain / filtration / fine sizing |
| Medium screen | 2.0 – 4.0 mm | 5 – 25 mm | 304 / 65Mn lock crimp | aggregate / sand sorting |
| Heavy screen | 4.0 – 6.0 mm | 25 – 60 mm | 65Mn double crimp, hooked | mining / quarry ore sizing |
| Extra heavy | 6.0 – 8.0 mm | 60 – 100 mm | 65Mn lock crimp, hooked | primary crusher screening |
Weave selection follows ISO 4783 industrial woven wire screen practice; exact wire and opening confirmed per RFQ.
Crimped mesh export logistics, HS code and Incoterms 2020
Most screening buyers ask the same logistics questions before ordering: HS classification, container loading, port routing and Incoterms. The block below is the same logistics summary used on every Anping Hand in Hand quote.
| Item | Value |
|---|---|
| HS Code | 7314.14 (other woven cloth of stainless steel) / 7314.19; 7314.12 endless bands |
| Container 20'GP capacity | Rolls and panels loaded by weight; balanced for floor load |
| Container 40'HQ capacity | Mixed rolls + cut panels, container-optimized bundling |
| Origin port | Tianjin Xingang (250 km from Anping factory) |
| Backup ports | Qingdao (650 km), Shanghai (1100 km) |
| Inland trucking lead time | Confirmed during RFQ review |
| Sea freight lead time | Confirmed during RFQ review based on destination |
| Documents on request | Commercial invoice, packing list, B/L, mill test certificate, certificate of origin (CCPIT / Form A / Form E) |
| Packaging | Rolls in waterproof wrap + pallet; panels bundled with edge protection |
Incoterms 2020 supported on every quote
| Code | Rule | How we use it for crimped mesh |
|---|---|---|
| EXW | Ex Works | Buyer collects from our factory in Anping. Buyer carries all risk and cost from factory gate. |
| FCA | Free Carrier | We deliver to a named carrier in China. Risk transfers when carrier accepts. |
| FAS | Free Alongside Ship | We place goods alongside vessel at Tianjin Xingang. |
| FOB | Free On Board | Most common for crimped mesh. We load and clear customs at Tianjin Xingang. |
| CFR | Cost and Freight | We pay sea freight to destination port; risk transfers at Tianjin loading. |
| CIF | Cost, Insurance and Freight | CFR + cargo insurance (ICC(C) minimum, ICC(A) on request). |
| CPT | Carriage Paid To | For multi-modal, we cover carriage to named destination. |
| CIP | Carriage and Insurance Paid To | CPT + insurance (ICC(A) default since Incoterms 2020). |
| DAP | Delivered at Place | We deliver to a named destination, buyer handles import customs. |
| DPU | Delivered at Place Unloaded | DAP + we unload. New rule replacing DAT. |
| DDP | Delivered Duty Paid | We handle everything including import customs and duties. |
HS classification follows HS 7308.90 / 7314.31; Incoterms® 2020 rules are published by the International Chamber of Commerce.
Common procurement questions answered up front
Each answer below is written so a buyer or engineer can pull a complete reply on a single procurement question, with the verifiable numbers every project team needs.
What is crimped wire mesh used for?
Crimped wire mesh is a pre-crimped woven screen used mainly for screening and sizing: mining and quarry vibrating screens, aggregate and sand sorting, grain and food cleaning, industrial filtration, plus decorative architectural panels. The crimping locks the wire intersections so the opening stays stable under vibrating load.
What is the difference between double crimp and lock crimp mesh?

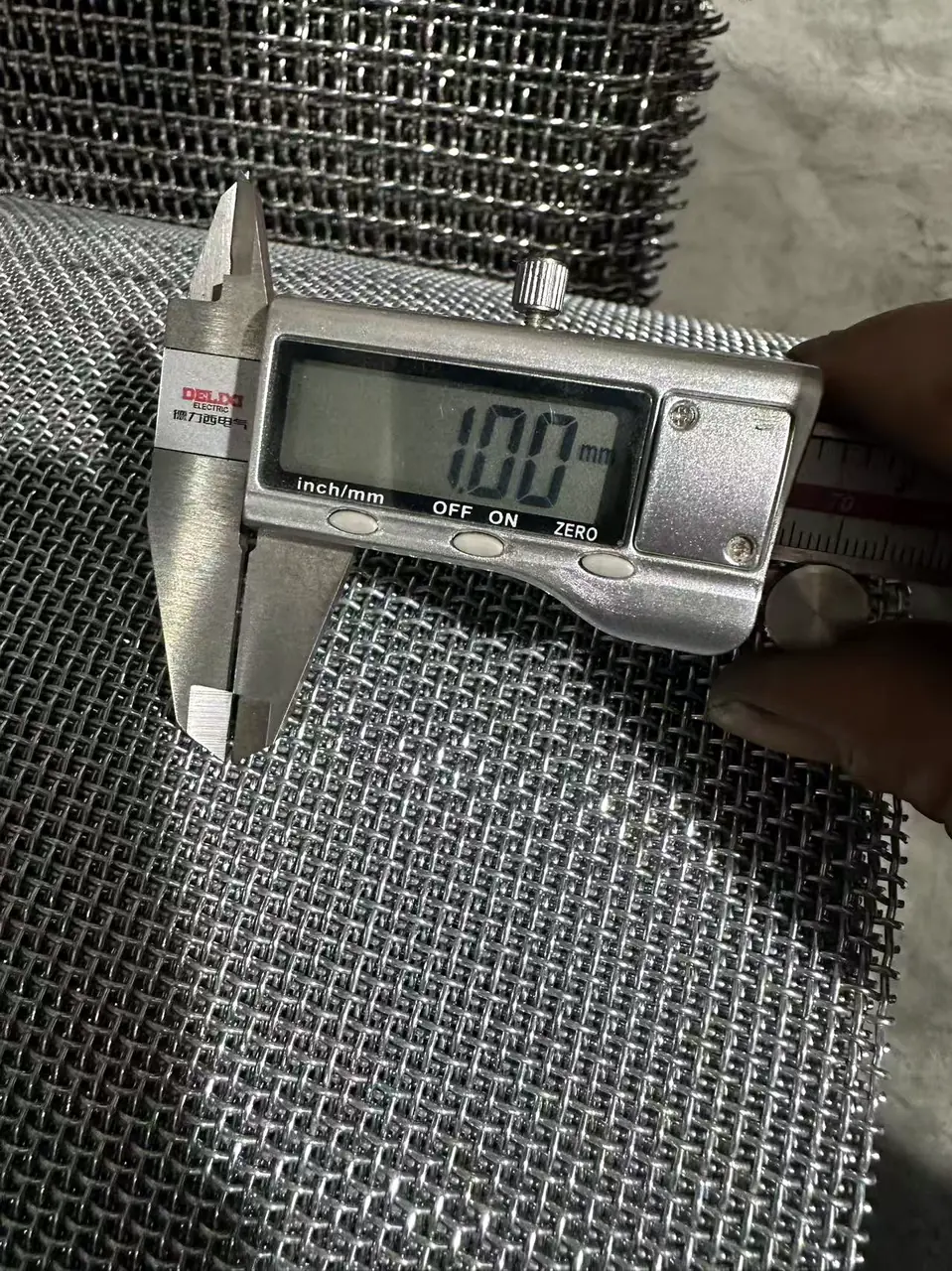

In double-crimp mesh both the warp and weft wires are crimped at every intersection, giving a stable, economical screen for medium duty. In lock-crimp mesh the wires are crimped only at the intersection points so they lock together tightly, holding the opening size under heavy vibrating load – preferred for abrasive mining and aggregate screening.
Which material is best for mining screen mesh?
65Mn manganese steel is the standard choice for abrasive mining and aggregate screening because it resists wear under continuous vibration, usually woven as a lock-crimp or double-crimp screen with hooked edges for tensioning. For corrosion-driven duty (chemical, coastal, food, filtration) 304 or 316 stainless steel is used instead.
What is the HS code for crimped wire mesh exports from China?
Crimped woven wire mesh is generally classified under HS 7314.14 (other woven cloth of stainless steel) or 7314.19 for other steels. Anping Hand in Hand declares the correct line on every commercial invoice and supplies a CCPIT-stamped certificate of origin plus Form A or Form E (FTA) so your customs broker can clear the shipment.
How is crimped wire mesh measured and quoted?
A crimped wire mesh spec is defined by four values: wire diameter (1.0 to 8.0 mm), opening or aperture (0.5 to 100 mm), material grade (304 / 316 / 65Mn) and weave type (double / lock / flat-top crimp). Roll width up to 2000 mm and cut panel size complete the order. Send these and we reply within one business day.
Can crimped wire mesh be cut into panels with hooked edges?
Yes. We cut woven crimped mesh into rectangular panels and add plain, folded or hooked edges so the panel mounts and tensions directly on your vibrating screen deck. Send your deck dimensions and hook detail with the RFQ.
Crimped wire mesh applications across industries

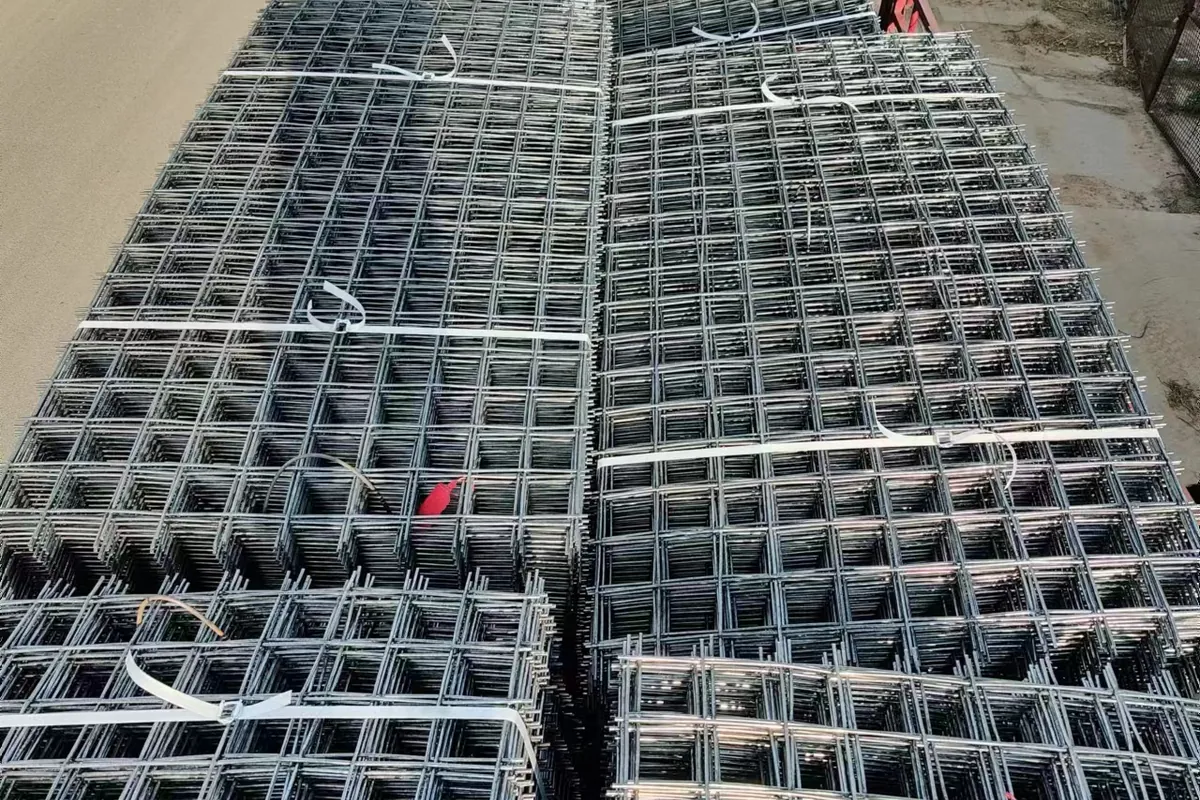

Mining and quarry screening
Vibrating screen decks for ore, coal, stone and aggregate sizing. 65Mn manganese steel resists abrasion under continuous load.
Aggregate and sand sorting
Sizing and grading of sand, gravel and crushed stone in aggregate plants.
Grain and food cleaning
Cleaning and grading grain, seed and food product on screening machines.
Industrial filtration
Liquid and solid filtration, slurry dewatering and particle separation in stainless grade.

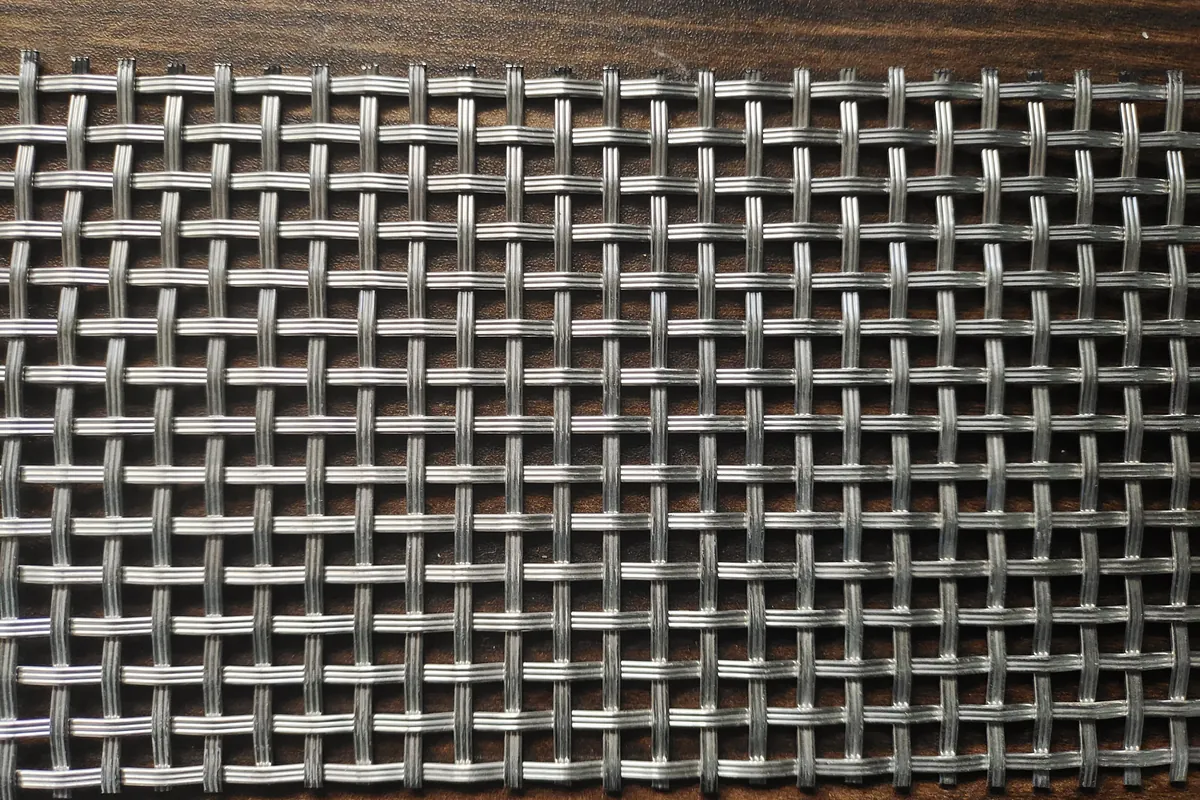

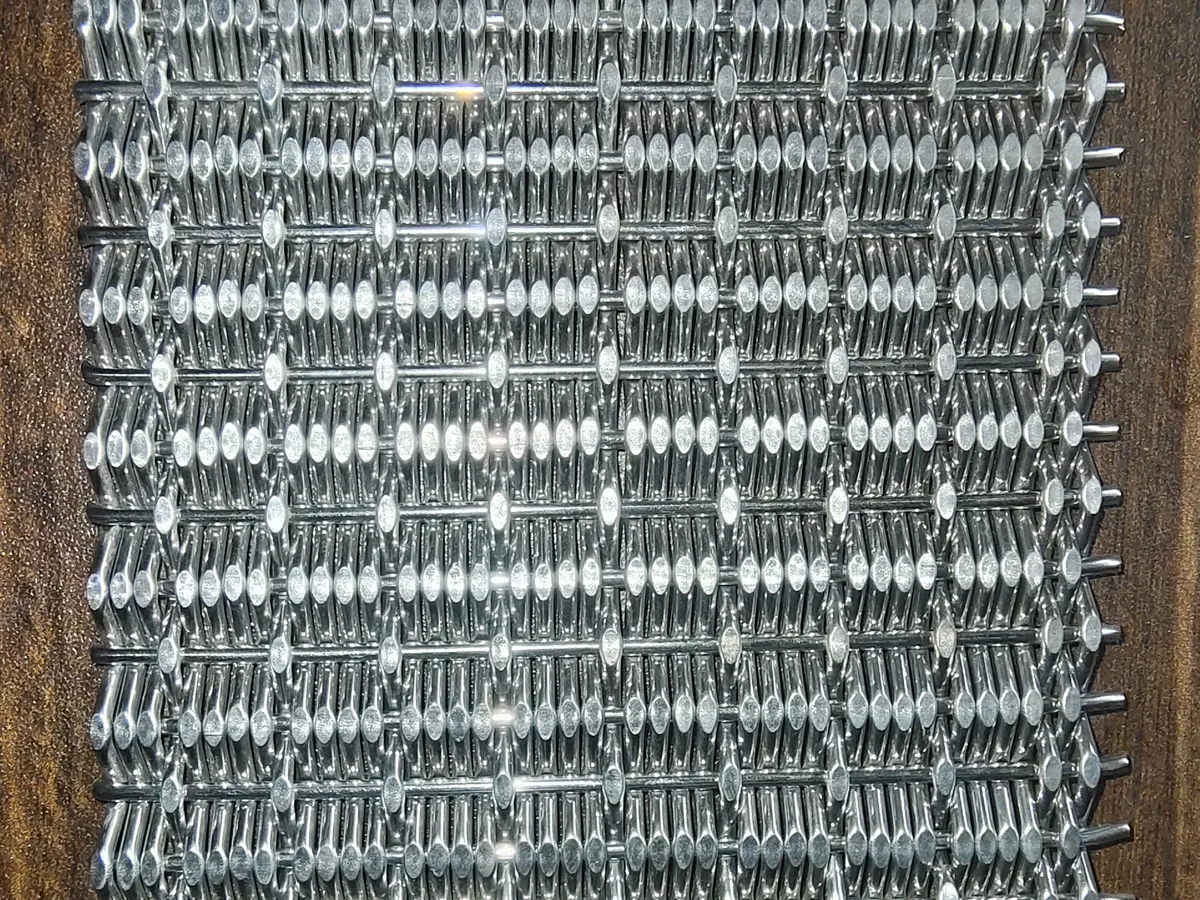

Architectural and decorative
Partition screens, facade infill, ceilings and balustrade panels with a woven pattern.
Safety and support mesh
Mine roof support mesh, machine guards and protective screening.
Engineering scenario references: construction site fence panels and hoarding; farm and aquaculture fencing wire mesh; marine and coastal 316 stainless wire mesh; mining screening and aggregate sorting projects; chemical plant filtration and protection mesh; factory equipment guard and safety screening.
Why buyers choose Anping Hand in Hand crimped wire mesh
- Engineer-on-record. Your RFQ goes straight to He Zhanbing, our application engineer with 5 years on the line. Reply under one business day, no sales middleman.
- Right weave for your load. He matches double, lock or flat-top crimp, wire diameter and opening to your screen load and material so the opening stays stable in service.
- Material for your duty. 65Mn manganese steel for abrasive mining duty, 304 / 316 stainless for corrosion and filtration, galvanized for general screening.
- Cut-to-size with hooks. Panels cut to your deck size with plain, folded or hooked edges so they mount and tension directly on your vibrating screen.
- Project packing. Rolls and panels bundled, bar-coded and protected for export, balanced for container floor loading.
- Factory direct pricing. No trading agent markup. Quote based on material, wire diameter, opening, weave and quantity, with bulk tiers by roll volume.
- Stock weaves ready. Common stainless and manganese crimped weaves in stock for fast dispatch.
- Private label. OEM packing and your logo on documents for resale in your local market.
- Mixed container. Combine crimped mesh with other Anping wire mesh products in one container to balance freight.
- Anping cluster supply chain. Wire drawing, weaving and Tianjin port (250 km) on one county-scale supply chain. Lead time stays predictable.

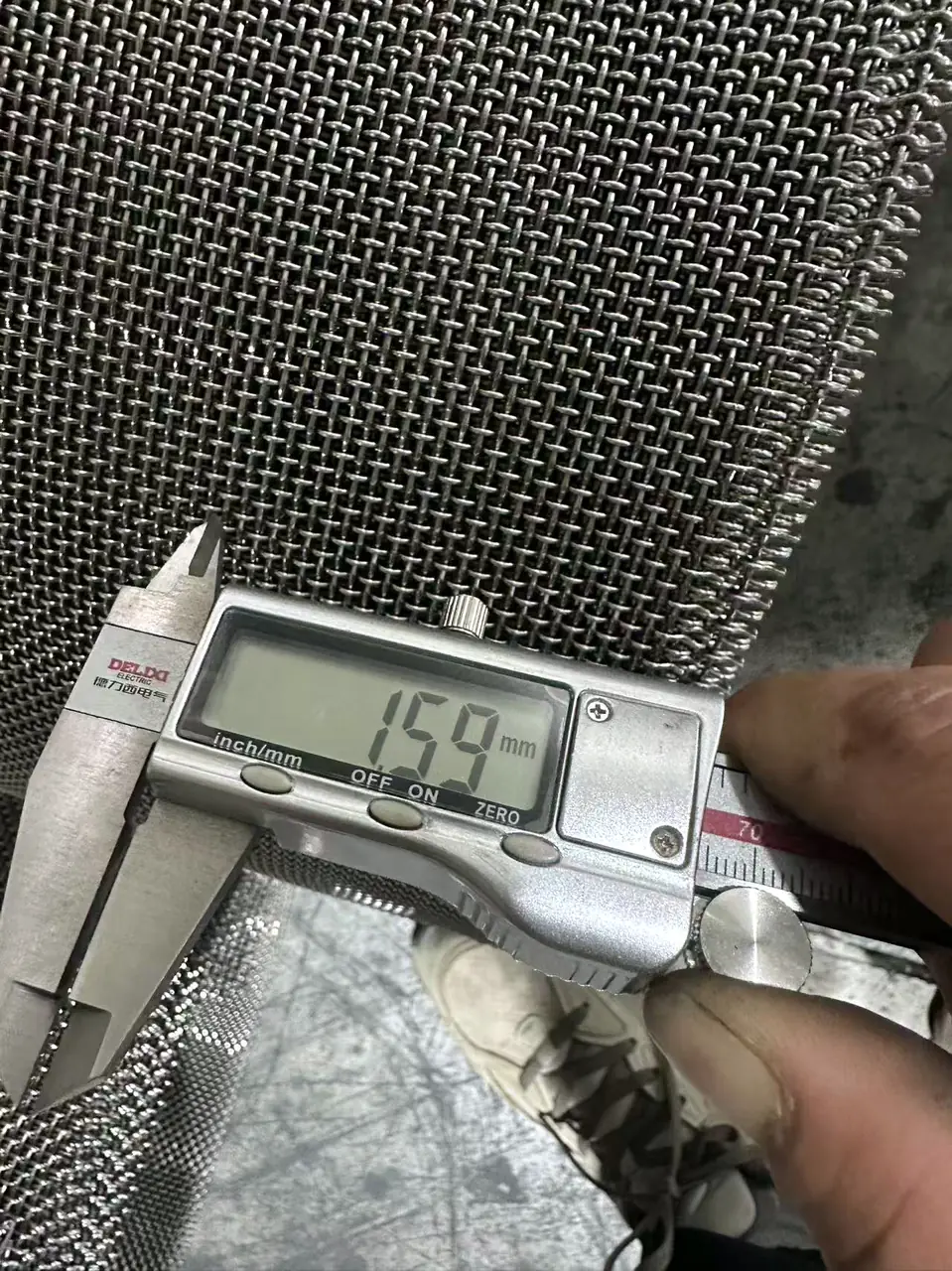

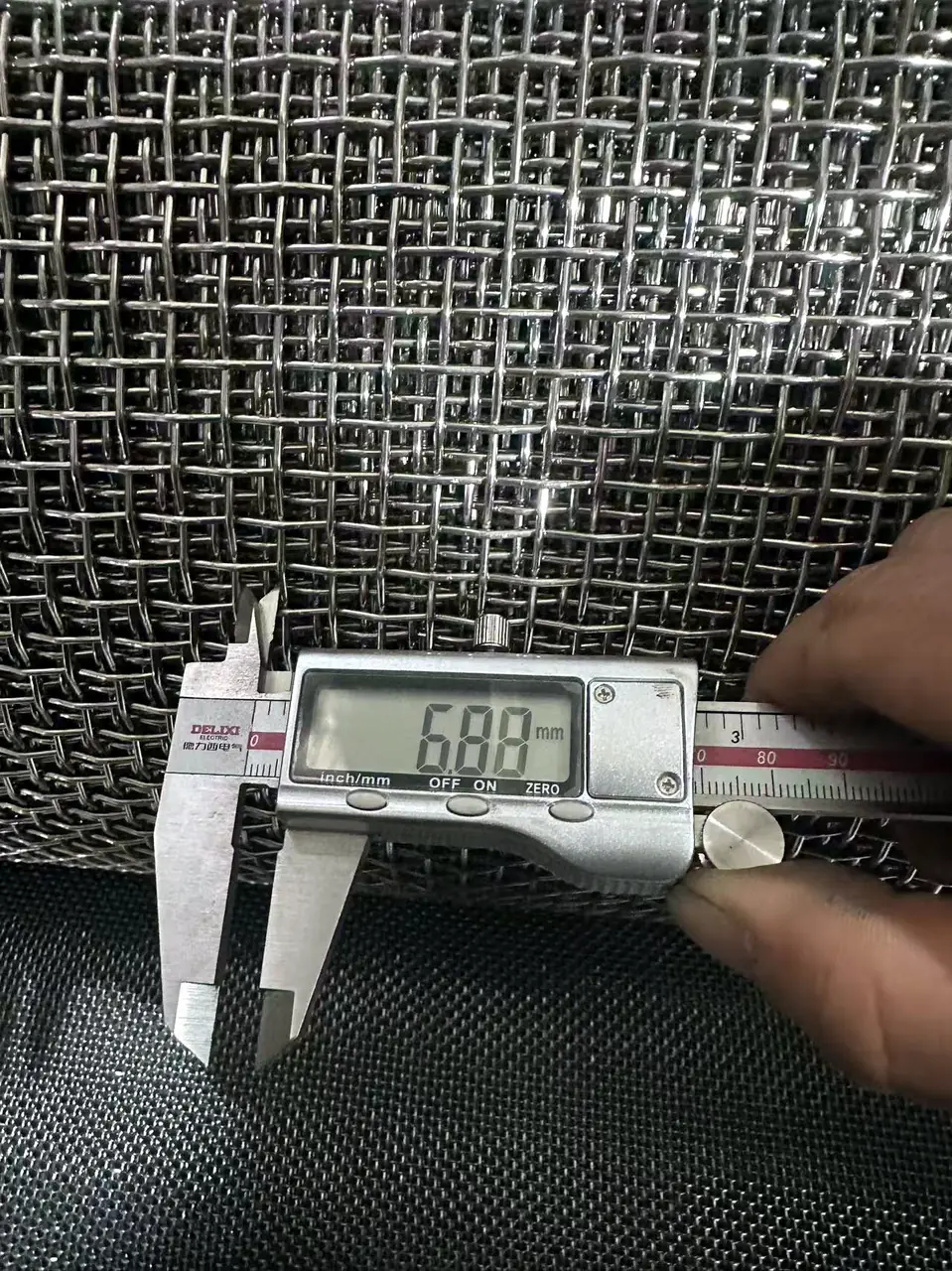

Quality, certification and traceability
Anping Hand in Hand crimped wire mesh is drawn, crimped and woven in house, so wire diameter and opening size stay consistent panel to panel. Buyer site visit and third-party inspection can be discussed and confirmed during RFQ review when applicable.
Source factory in Anping cluster
Located in Anping County, Hebei (38.2314 N, 115.6253 E) – the world's largest wire mesh manufacturing cluster, 4000+ producers, 500+ export-licensed factories within 30 km.
Pre-crimped for stable opening

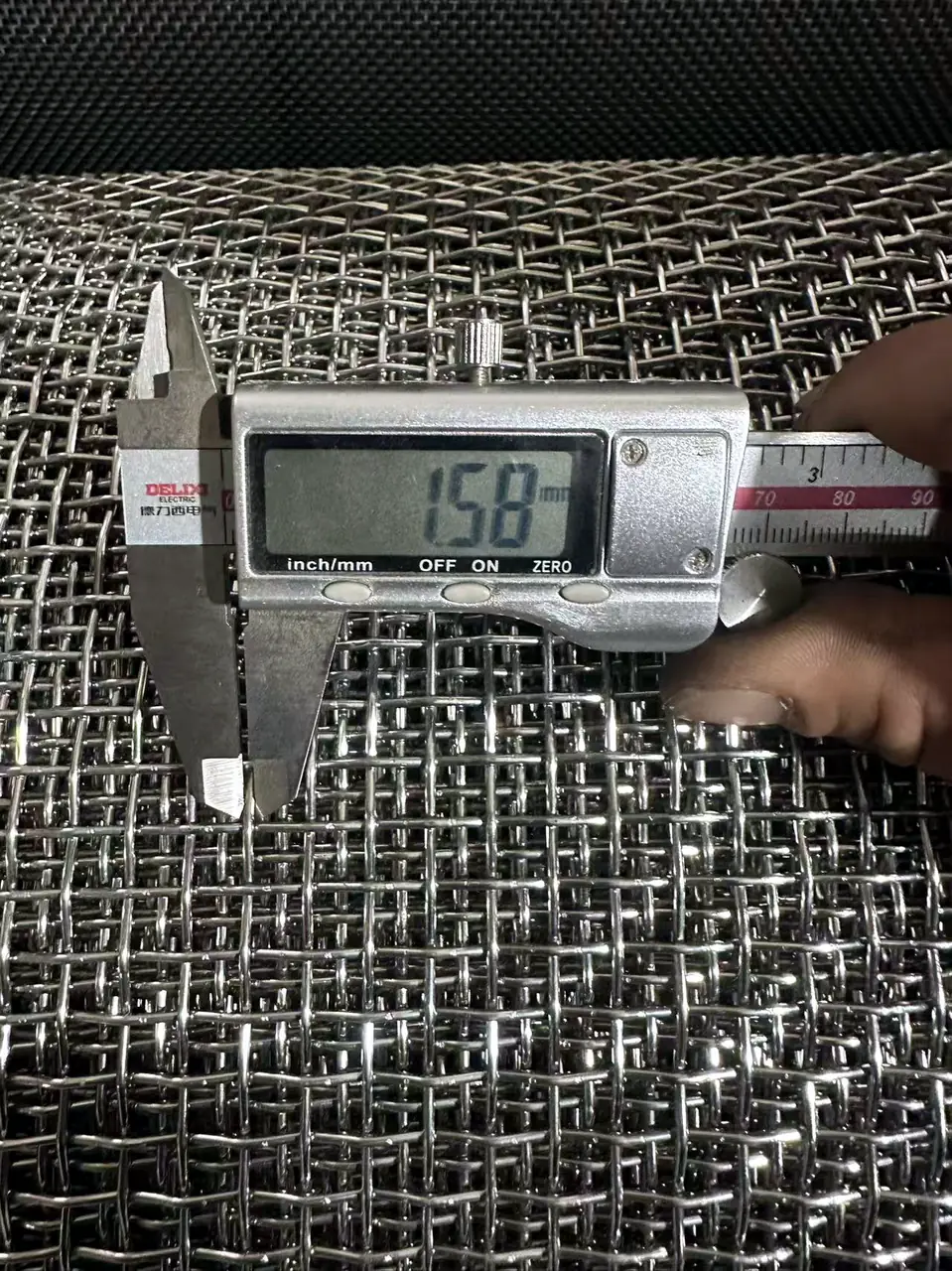

Wires are crimped before weaving so the opening size stays accurate and consistent across the panel, even under vibrating screen load.
Real production photos
The factory, mining-screen and packing photos on this page are our own crimped mesh line, not stock images. EXIF removed for buyer privacy.
Engineer signed RFQ
Every quote signed by He Zhanbing, our application engineer (5 years). Drawings, photos and inspection reports linked to your project file.
Open factory policy
Buyer site visit and third-party inspection can be discussed and confirmed during RFQ review when applicable.
Honest export readiness
Expanding supply capability to serve international industrial buyers. Every shipment is photographed and indexed in our shipment log so buyers get traceable references over time, not stock photos.

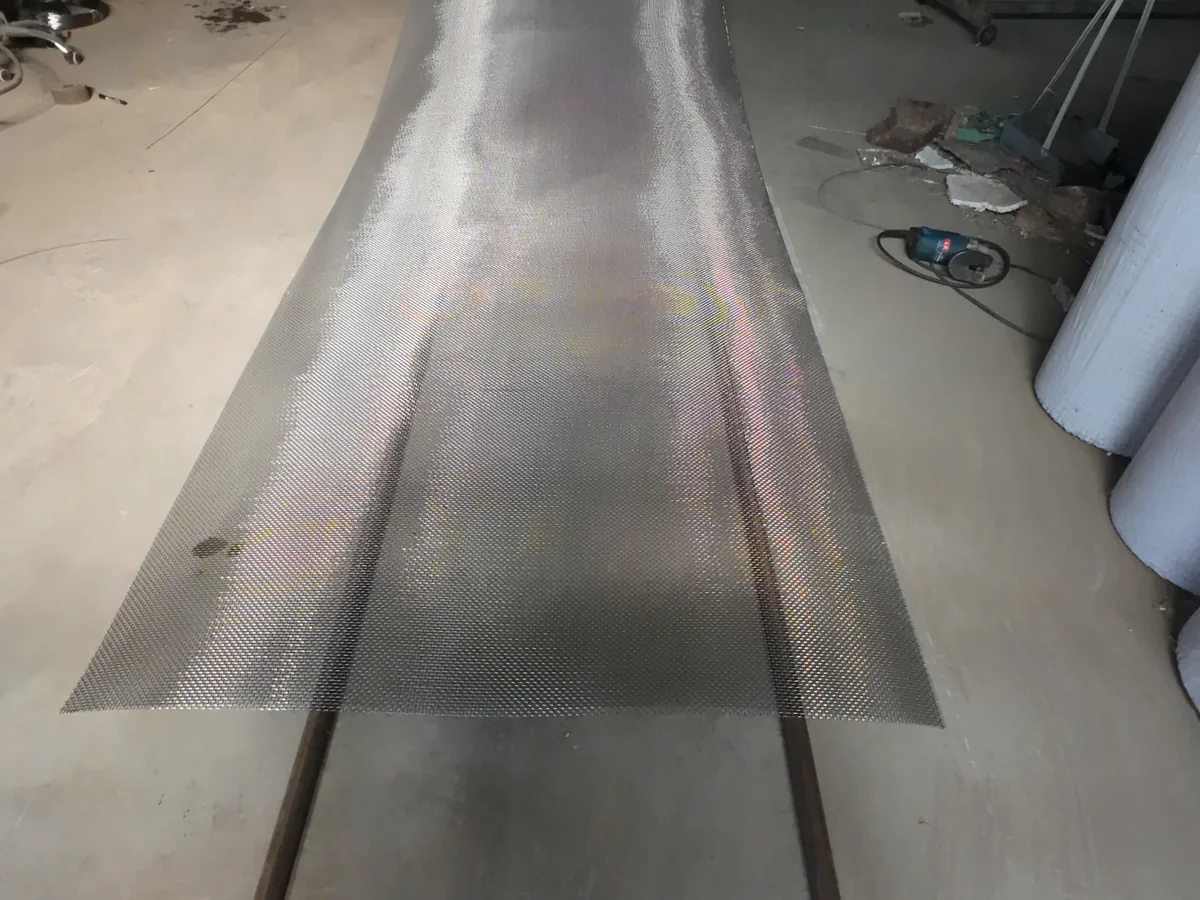

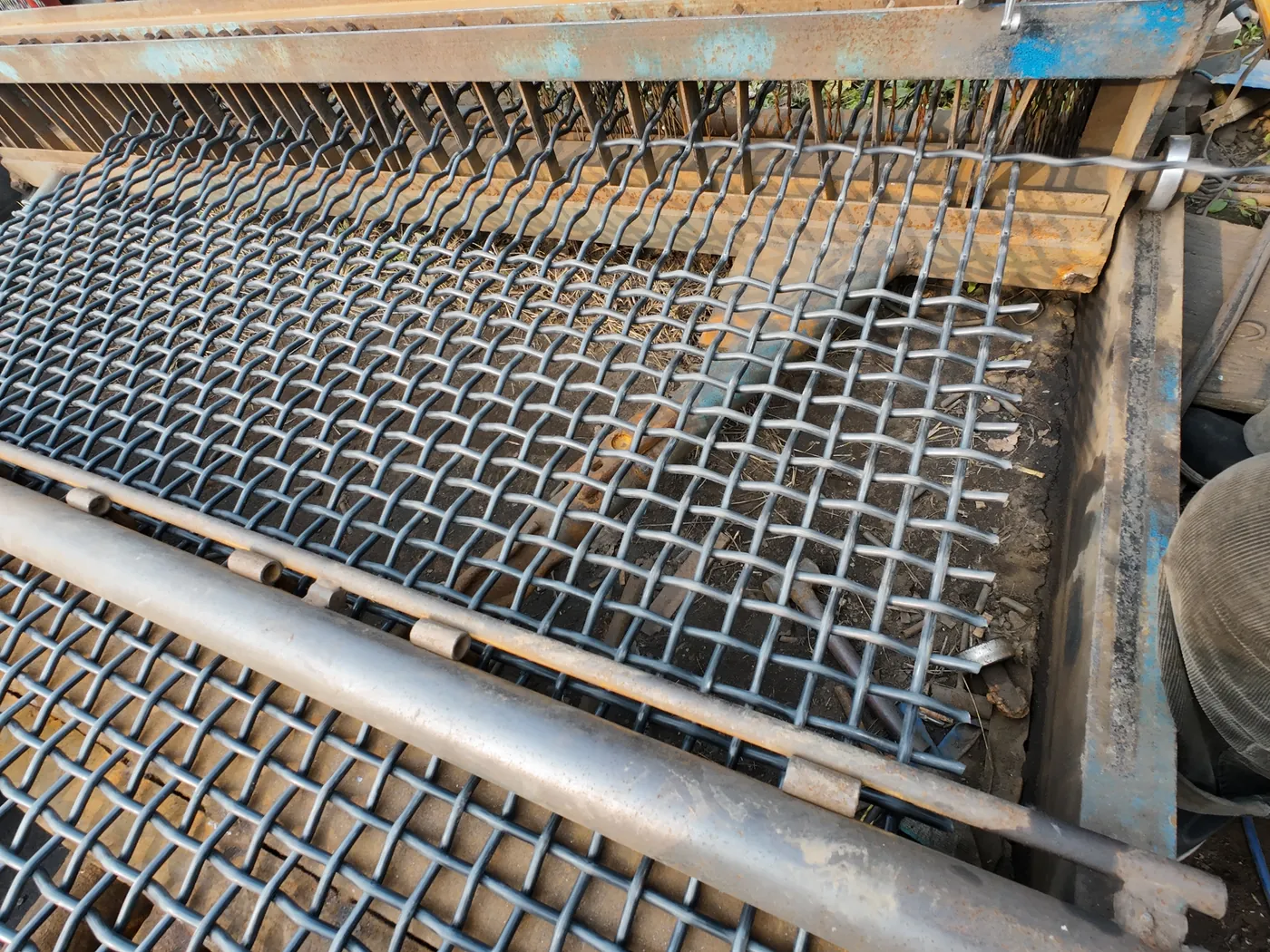

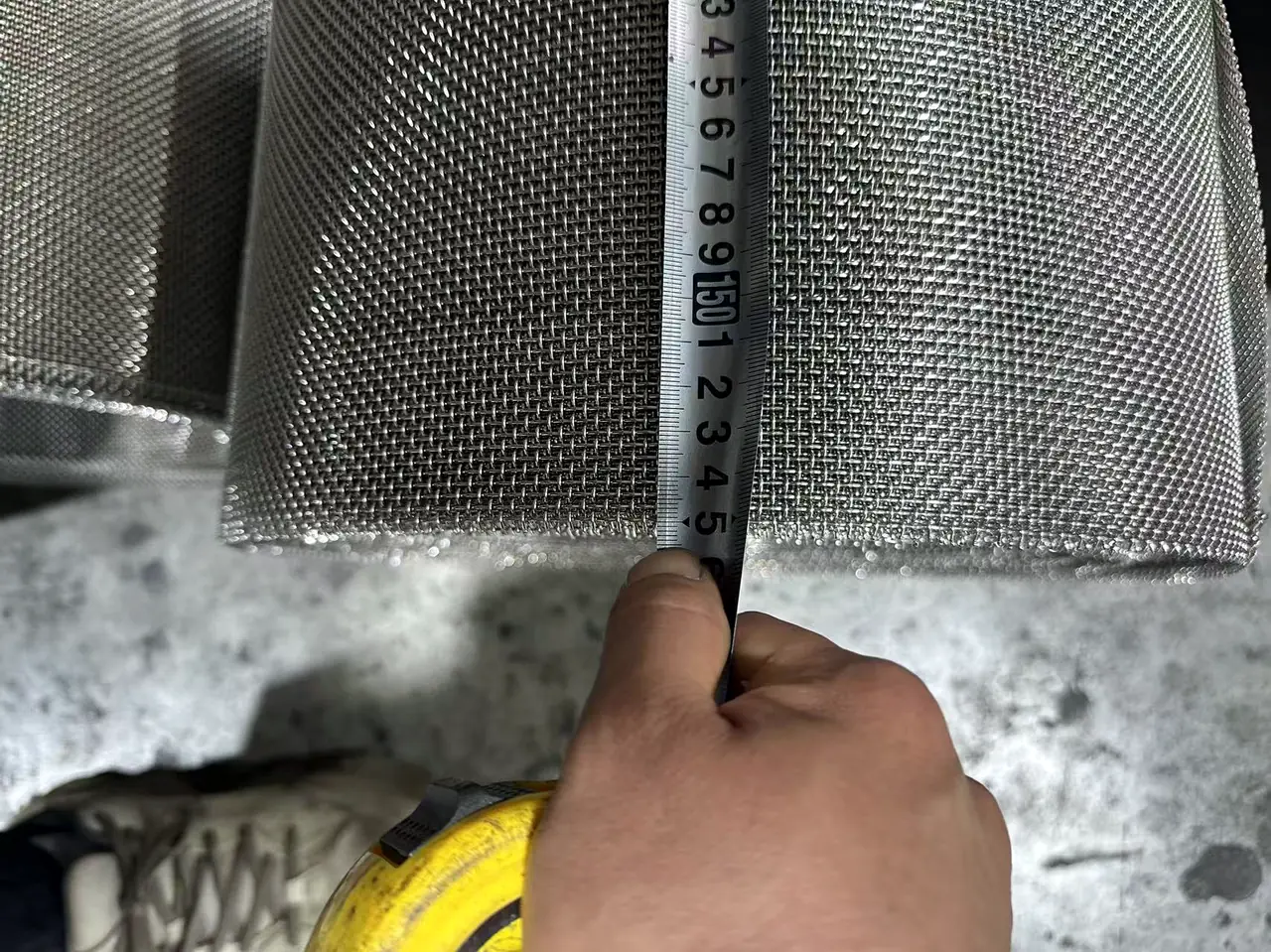

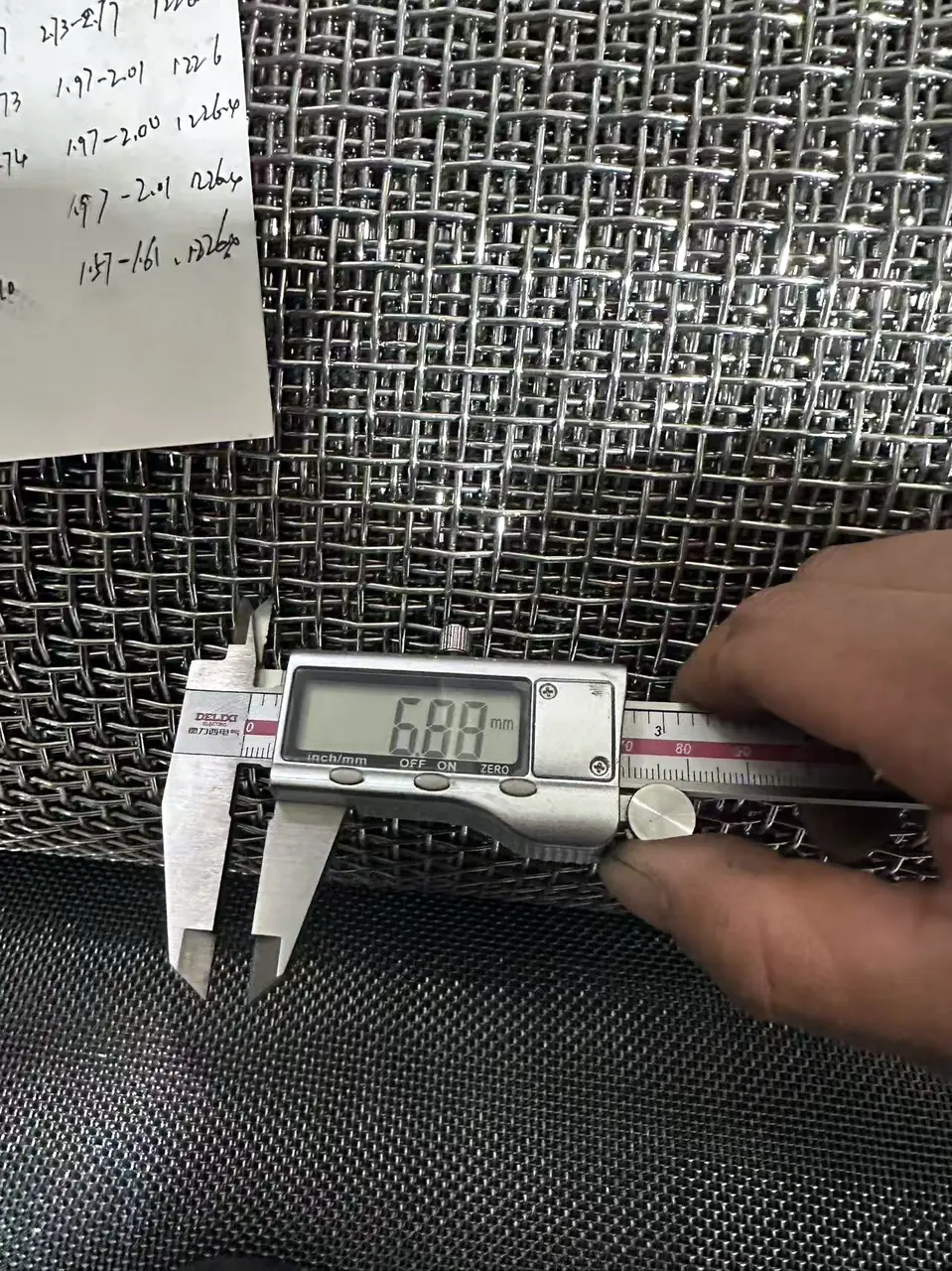

Inside our crimped wire mesh production line
Our stainless steel and 65Mn manganese spring steel crimped wire mesh is woven on dedicated heavy-gauge looms at our Anping County, Hebei factory (USCC 91131125MA7FT3EA0D). Material certificates or inspection documents are available on request according to the RFQ and order requirement.
Manufacturer: Anping Hand in Hand Wire Mesh Products Co., Ltd. (USCC 91131125MA7FT3EA0D) →
Quick crimped wire mesh procurement reference
Crimped wire mesh is a woven screen made from wires that are crimped (corrugated) before weaving, which locks the intersections and keeps the opening size stable under vibrating screen load. Anping Hand in Hand weaves it in 304 / 316 stainless and 65Mn manganese steel with wire 1.0 to 8.0 mm and opening 0.5 to 100 mm for mining screening, aggregate sorting, grain cleaning, filtration and decorative use.
The values that drive both price and screening performance on every crimped wire mesh quote are material grade (304 / 316 stainless vs 65Mn manganese), wire diameter, opening (aperture) size, weave type (double / lock / flat-top crimp) and roll width or panel size. Send these plus quantity and destination port, and we review and reply within one business day.
Anping Hand in Hand is a source crimped wire mesh factory in Anping County, Hebei Province (38.2314 N, 115.6253 E). The factory weaves stainless and 65Mn manganese crimped screen, cut-to-size panels with hooked edges, and decorative crimped mesh. RFQs are answered by He Zhanbing, our application engineer with 5 years on the line.
Frequently asked crimped wire mesh questions
What information do I need to send for a crimped wire mesh quote?
Do you ship crimped wire mesh to my country?
What is the difference between crimped wire mesh and welded mesh?
What crimp weave should I choose for mining screening?
Can you produce custom opening size and cut-to-size panels?
What payment terms do you accept?
More procurement resources: bulk wholesale crimped screen mesh quote and sample policy · wire mesh buying guide and procurement checklist · factory direct crimped mesh packing and shipping policy · crimped mesh opening size and service life guide.
Crimped mesh cost estimator (FOB / CIF / DDP)
Pick the material, weave class and quantity to see an instant FOB Tianjin estimate range. Numbers are based on public Tianjin port reference prices for Q4 2025 – Q2 2026 and become a binding quote only after the RFQ form is processed by our engineer.
Why buyers can trust Anping Hand in Hand on this order
Anping County, Hebei Province is the national wire mesh production cluster of China with 4000+ wire mesh enterprises within 30 km. Our workshop, warehouse and shipping yard back every quotation with physical evidence buyers can verify on site, by video call, or via third-party inspection when applicable.
He Zhanbing
Senior Application Engineer | Anping Hand in Hand
5 years on the wire mesh and steel grating production line. Reviews drawings, opening specifications, panel size, finish and packing. Replies within one business day with binding pricing, weight per panel and lead time. Confirms grade selection (304 / 316 / 316L / duplex / 65Mn / Q235) against your application before quotation.
Verified legal entity and buyer-checkable records
Registered name (EN): Anping Hand in Hand Wire Mesh Products Co., Ltd.
Registered name (CN): 安平县手拉手丝网制品有限公司
Unified Social Credit Code (USCC): 91131125MA7FT3EA0D
Registered address: Anping County, Hebei Province, China
Geo coordinates: Lat 38.2314 / Lng 115.6253 (Anping wire mesh cluster)
Buyers may request a legal entity check, on-site visit appointment, video factory tour, or third-party inspection when applicable. Quotations and contracts are issued under the registered legal entity above. Mill test certificate (MTC) traceable to wire batch number supplied by default; ASTM B117 salt-spray, ASTM E8 tensile and ISO 9227 reports supplied on request.
Business license (click to view full size)
Standards we work to: ASTM A123 / A153 (hot-dip galvanizing), ASTM A580 / A480 (stainless steel grade), ASTM E8 (tensile), ASTM B117 (salt-spray), ISO 9227 (NSS), EN 10204 type 3.1 (mill cert), EN 10088 (stainless), EN 1461 (galvanizing), EN 10218 (steel wire), AS 4687 / EN 12811 (construction fence), AS 1657 (walkway), ISO 13857 (machine guard), NACE MR0175 / ISO 15156 (sour service).
Get a same day crimped wire mesh quote
4-step wizard. Pick the buyer track that matches you, send the key parameters, and our engineer replies within one business day.
Crimped wire mesh tailored to your screen, shipped from Anping
Stainless, 65Mn manganese or galvanized crimped screen, double / lock / flat-top crimp, custom opening and roll width, cut-to-size panels with hooked edges. Specifications and documents confirmed during RFQ review.
Factory and product gallery
Real photos of the Anping Hand in Hand crimped wire mesh line and finished rolls and panels. EXIF metadata removed for buyer privacy.

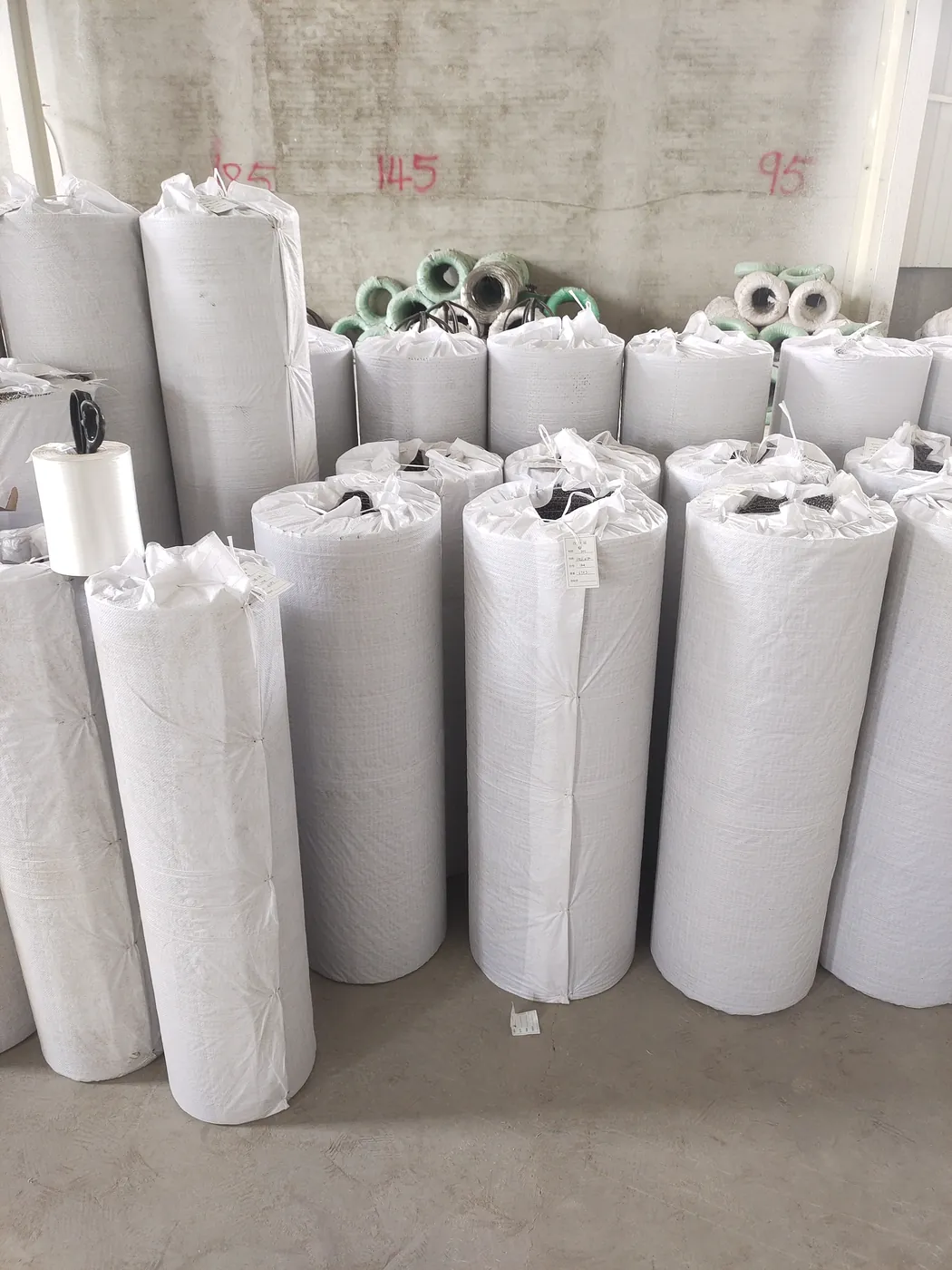

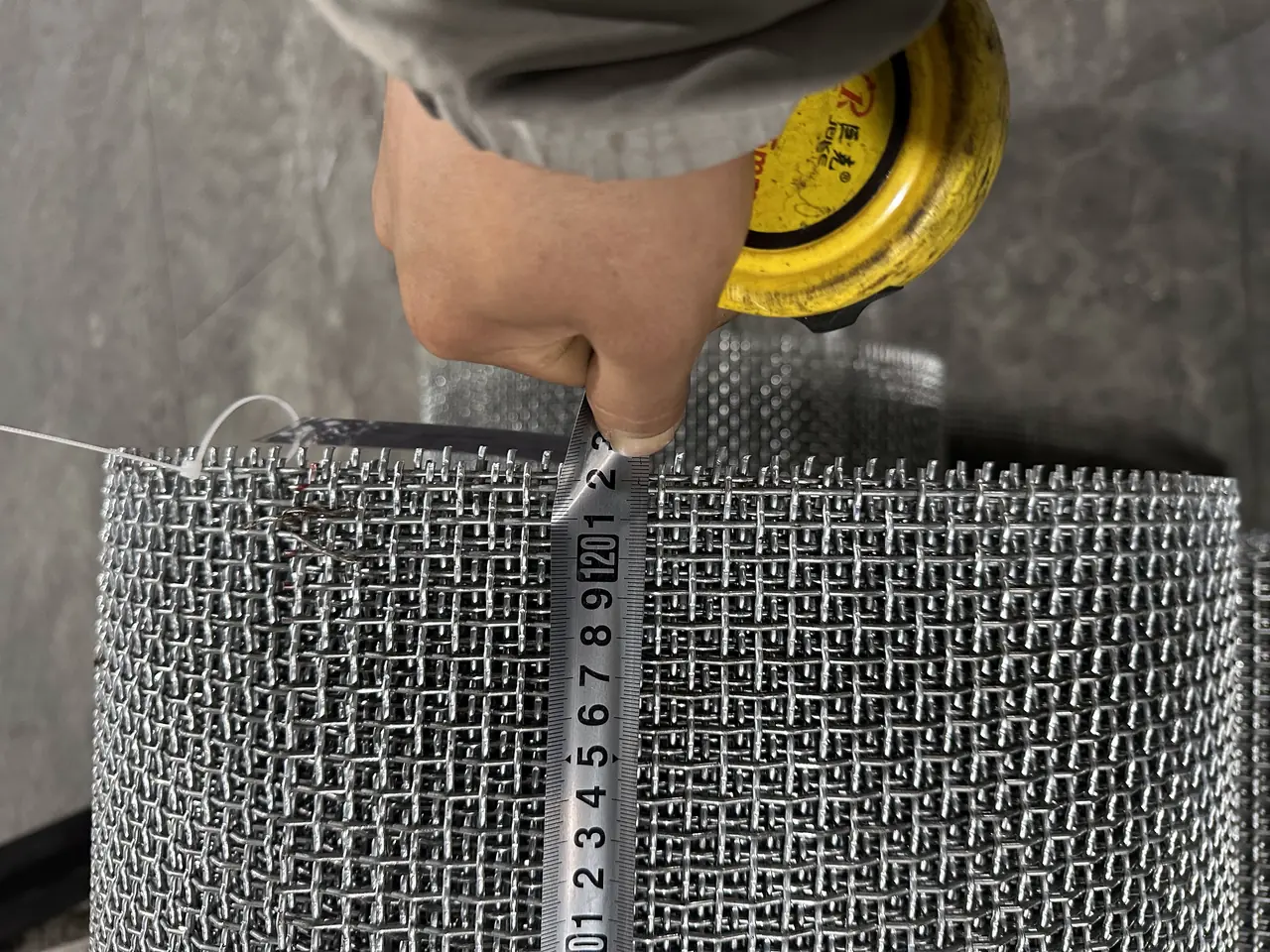

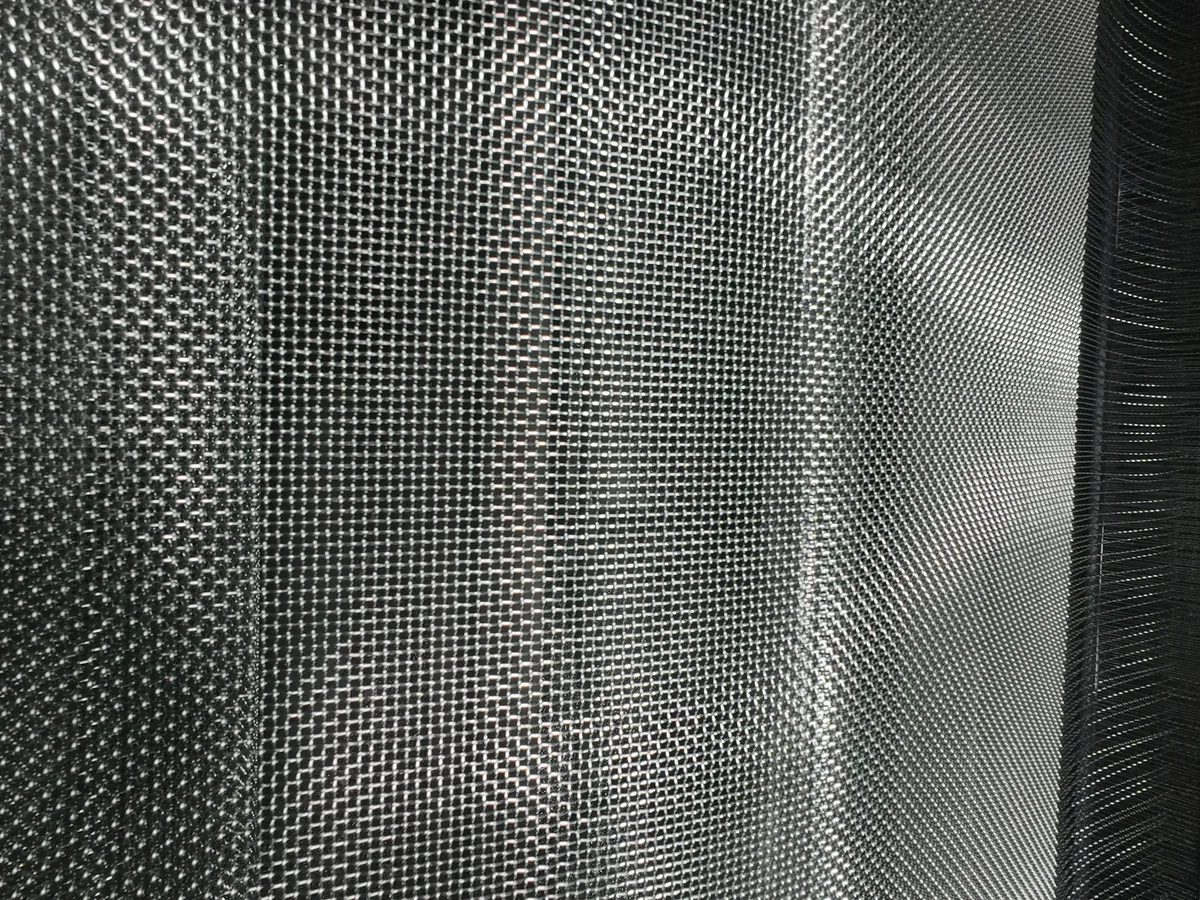

Container-Ready Packing & Loading
Palletizing, film-wrapping and container loading are performed at our own Anping workshop. We currently operate as an OEM / contract manufacturer for Anping-based trading companies serving overseas industrial buyers; the same container-ready packing workflow applies to direct international RFQs.
Specification sheets and RFQ checklists
Use the Download Center to prepare the correct product-specific parameters, quantity, packing and destination before manual quotation. Wire mesh uses wire diameter and opening; steel grating uses bearing bar and span direction; perforated metal uses sheet thickness, hole size and pitch; temporary fence uses panel size, frame tube, base and clamp.
